TeSys T is a motor management system that provides full motor monitoring, control, and protection when used with short circuit protection and a contactor. It manages most critical processes while reducing downtime and increasing productivity as well as predicts what will happen in the process, as it accurately monitors current, voltage, and power over a wide range. This motor management system is also a flexible system that supports six communication protocols which are Modbus™, CANopen, DeviceNet™, Profibus™, Ethernet/IP, and Modbus/TCP. TeSys T motor management system consist of several components which include the LTMR controller, the expansion module, HMI and software along with several accessories. The LTMR controller is the main component of the system that manages the basic functions. This includes the measurement of the ground current, motor temperature, three phase current of the motor, the controller also includes logic inputs and outputs which is used in fault management. The expansion module is directly connected to the controller and provides additional inputs as well as measure the voltage between the phases which allow the controller the monitor additional functions. TeSys T is highly reliable and has a very long product life thanks to a state-of-the-art component selection, to the all in one design and to the advanced electronic protection. TeSys T can be integrated in many different types of harsh environment such as dusty atmospheres, marine applications, high vibration applications and corrosive atmospheres and is used in Metal/Mining/Mineral, Oil & Gas, Water Wastewater. This is a TeSys operactor control unit that is used in conjuction with LTMR controller to configure the parameters, display the information about the controller, display detected faults and control the motor locally. This operator unit has LCD screen to display the information along with 5 control keys and 4 LED indicators and has 2 ports for RJ45 connectors that are used to connect to the PC and controller. The dimensions of this device are 70 mm (H) X 117 mm (W) X 50 mm (D) and it weighs 0.4 kg.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |

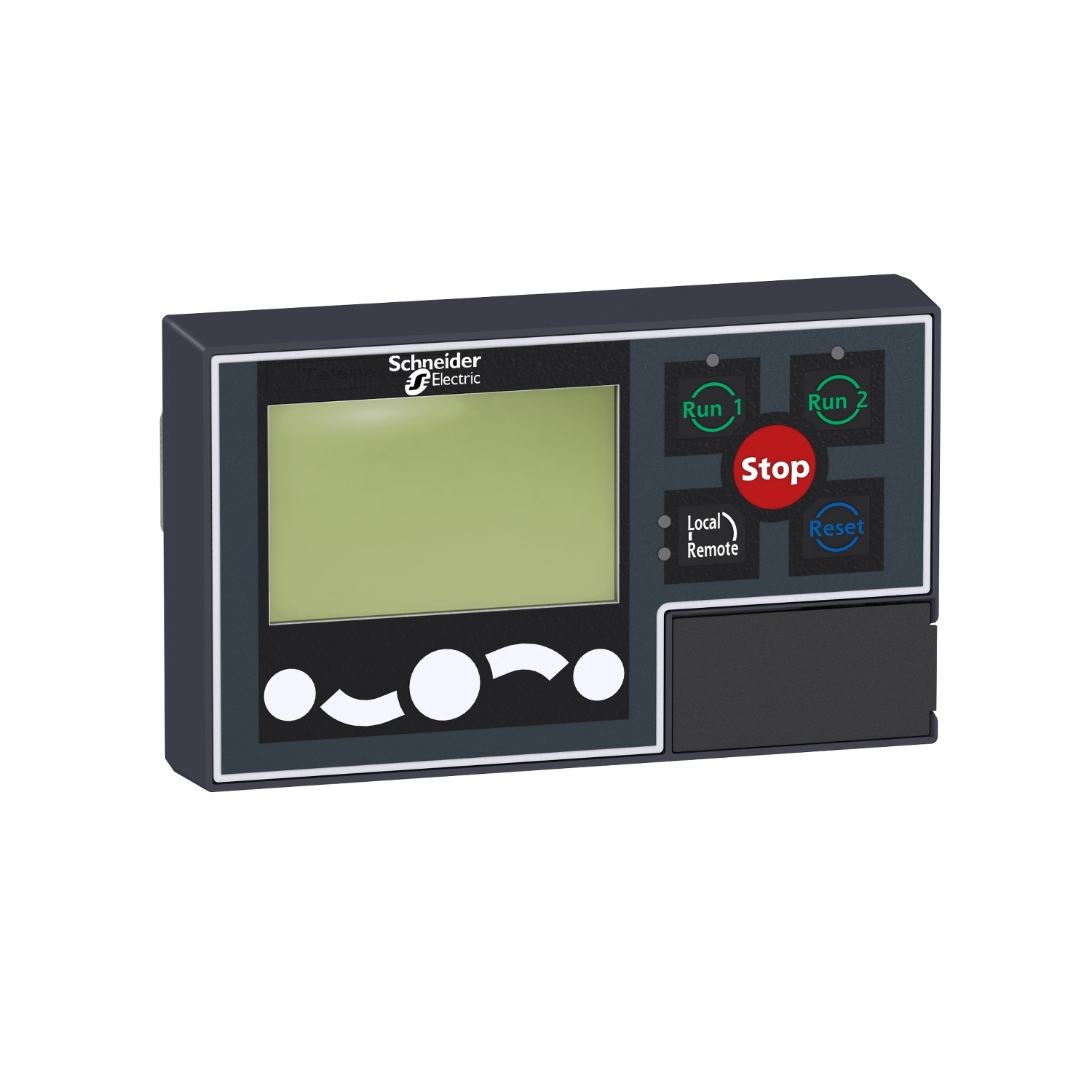

| Device short name | LTMCU |
| Display type | backlit LCD |
| Control button type | 10 push-button |
| Local signalling | 4 LEDs |
| Device connection | connection to a PC, RJ45 connector on front, connection to a LTM R controller, RJ45 connector on rear |
| Range | TeSys |
| Product or component type | operator control unit |
| Range compatibility | TeSys T LTMR motor controller |
| Complementary | |
| Depth | 50 mm |
| Width | 117 mm |
| Compatibility code | LTMCU |
| Maximum supply current | 140 mA |
| Mounting mode | flush-mounted |
| Electromagnetic compatibility | fast transient bursts (shielded access), level 3, 2 kV, conforming to EN/IEC 61000-4-4, surges (shielded access), level 3, 2 kV, conforming to EN/IEC 61000-4-5, conducted RF disturbances, level 3, 10 V, conforming to EN/IEC 61000-4-6, radiated RF fields, level 3, 10 V/m, conforming to EN/IEC 61000-4-3, electrostatic discharge, level 3, 8 kV air, 4 kV contact, conforming to EN/IEC 61000-4-2 |
| IP degree of protection | IP20 (rear) conforming to EN/IEC 60947-4-1, IP54 (front) conforming to EN/IEC 60947-4-1 |
| Net weight | 0.4 kg |
| Supply | via the controller |
| Power dissipation | 1 W |
| Standards | EN/IEC 61131-2, CSA C22.2 No 60947-4-1, UL 60947-4-1A |
| Height | 70 mm |
| Product certifications | CE, UL, NOM, CSA, EAC, C-Tick |
| Environment | |
| Fire resistance | 650 °C conforming to EN/IEC 60947-1 |
| Protective treatment | TC 12 humidity cycles at 55 °C conforming to EN/IEC 60068-2-30 |
| Ambient air temperature for storage | -40-80 °C |
| Relative humidity | 15-95 % |
| Flame retardance | V2 conforming to UL 94 |
| Ambient air temperature for operation | -20-60 °C |
| Mechanical robustness | vibrations: 4 Gn, 5...300 Hz conforming to EN/IEC 60068-2-6, shocks: 15 Gn for 11 ms conforming to EN/IEC 60068-2-27 |
Only registered users can write reviews
Related products
Display cable, TeSys T, 2 RJ45 connectors, 1m, for LTMCU control unit
LTM9CU10
Display cable, TeSys T, 2 RJ45 connectors, 1m, for LTMCU control unit
$30.36 inc GST
$21.94 inc GST
Display cable, TeSys T, 2 RJ45 connectors, 3m, for LTMCU control unit
LTM9CU30
Display cable, TeSys T, 2 RJ45 connectors, 3m, for LTMCU control unit
$45.98 inc GST
$33.22 inc GST
Motor controller, TeSys T, Motor Management, CANopen, 6 logic inputs, 3 relay logic outputs, 5 to 100A, 100 to 240VAC
LTMR100CFM
Motor controller, TeSys T, Motor Management, CANopen, 6 logic inputs, 3 relay logic outputs, 5 to 100A, 100 to 240VAC
$1,806.20 inc GST
$1,304.98 inc GST
Motor controller, TeSys T, Motor Management, CANopen, 6 logic inputs, 3 relay logic outputs, 5 to 100A, 24VDC
LTMR100CBD
Motor controller, TeSys T, Motor Management, CANopen, 6 logic inputs, 3 relay logic outputs, 5 to 100A, 24VDC
$1,929.40 inc GST
$1,393.99 inc GST
Motor controller, TeSys T, Motor Management, DeviceNet, 6 logic inputs, 3 relay logic outputs, 0.4 to 8A, 100 to 240VAC
LTMR08DFM
Motor controller, TeSys T, Motor Management, DeviceNet, 6 logic inputs, 3 relay logic outputs, 0.4 to 8A, 100 to 240VAC
$2,008.60 inc GST
$1,451.21 inc GST
Motor controller, TeSys T, Motor Management, DeviceNet, 6 logic inputs, 3 relay logic outputs, 0.4 to 8A, 24VDC
LTMR08DBD
Motor controller, TeSys T, Motor Management, DeviceNet, 6 logic inputs, 3 relay logic outputs, 0.4 to 8A, 24VDC
$2,145.00 inc GST
$1,549.76 inc GST

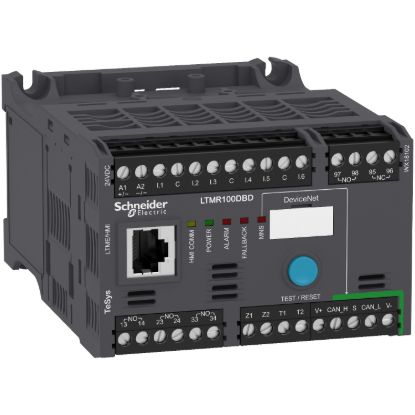

Motor controller, TeSys T, Motor Management, DeviceNet, 6 logic inputs, 3 relay logic outputs, 5 to 100A, 24VDC
LTMR100DBD
Motor controller, TeSys T, Motor Management, DeviceNet, 6 logic inputs, 3 relay logic outputs, 5 to 100A, 24VDC
$2,145.00 inc GST
$1,549.76 inc GST
Motor controller, TeSys T, Motor Management, Ethernet/IP, Modbus/TCP, 6 inputs, 3 outputs, 0.4 to 8A, 100 to 240VAC
LTMR08EFM
Motor controller, TeSys T, Motor Management, Ethernet/IP, Modbus/TCP, 6 inputs, 3 outputs, 0.4 to 8A, 100 to 240VAC
$2,006.40 inc GST
$1,449.62 inc GST
Motor controller, TeSys T, Motor Management, Ethernet/IP, Modbus/TCP, 6 logic inputs, 3 logic outputs, 0.4 to 8A, 24VDC
LTMR08EBD
Motor controller, TeSys T, Motor Management, Ethernet/IP, Modbus/TCP, 6 logic inputs, 3 logic outputs, 0.4 to 8A, 24VDC
$2,145.00 inc GST
$1,549.76 inc GST
Motor controller, TeSys T, Motor Management, Modbus, 6 logic inputs, 3 relay logic outputs, 0.4 to 8A, 100 to 240VAC
LTMR08MFM
Motor controller, TeSys T, Motor Management, Modbus, 6 logic inputs, 3 relay logic outputs, 0.4 to 8A, 100 to 240VAC
$1,705.00 inc GST
$1,231.86 inc GST

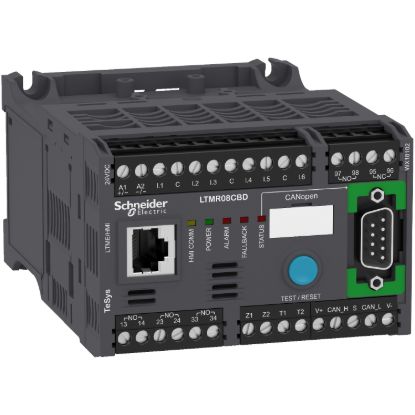

Motor Management, TeSys T, motor controller, CANopen, 6 logic inputs, 3 relay logic outputs, 0.4 to 8A, 24 VDC
LTMR08CBD
Motor Management, TeSys T, motor controller, CANopen, 6 logic inputs, 3 relay logic outputs, 0.4 to 8A, 24 VDC
$1,929.40 inc GST
$1,393.99 inc GST
Motor Management, TeSys T, motor controller, Modbus, 6 logic inputs, 3 relay logic outputs, 0.4 to 8A, 24VDC
LTMR08MBD
Motor Management, TeSys T, motor controller, Modbus, 6 logic inputs, 3 relay logic outputs, 0.4 to 8A, 24VDC
$1,823.80 inc GST
$1,317.70 inc GST

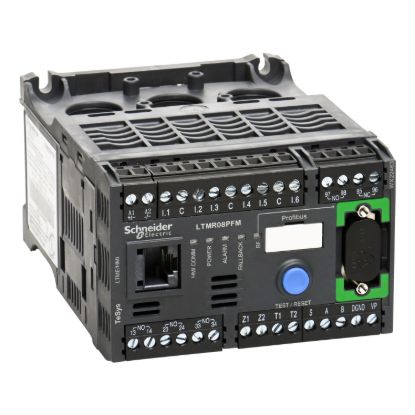

Motor Management, TeSys T, motor controller, Profibus DP, 6 logic inputs, 3 logic outputs, 0.4 to 8A, 100 to 240VAC
