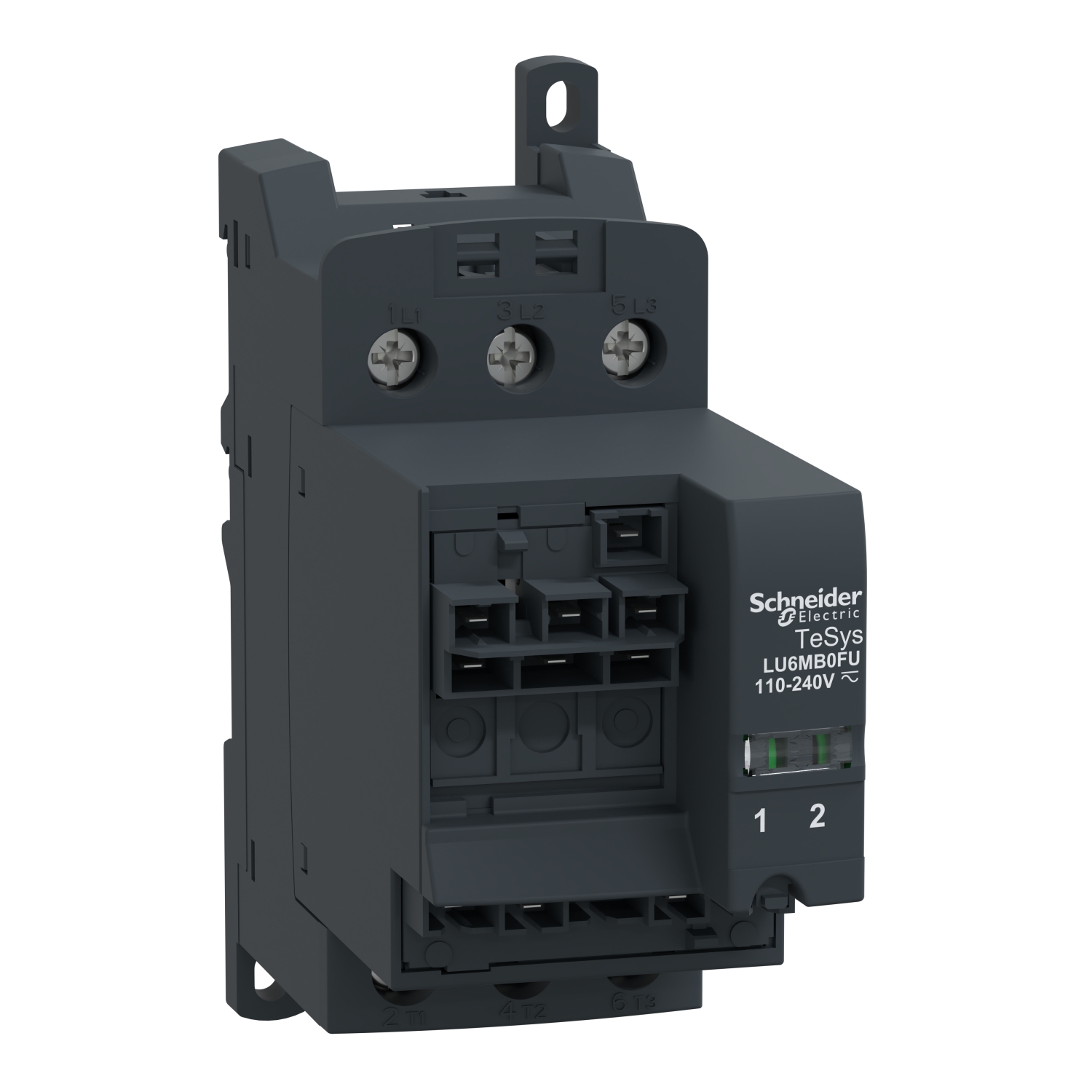

TeSys U reversing module for side mounting, for the constitution of TeSys U reversing starter controllers. It provides reverse power contacts, coil control with interlocking capabilities to be supplied with 110-240V AC / 110-220V DC. To be used with an advanced power base LUB120, LUB320, or LUB380 equipped with a Control Unit LUC*FU type. To be associated with an assembling connector LU9MR1 and a control terminal block LU9M1 to complete the side mounting. Green Premium compliant (RoHS/REACh).
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | LU6MB |
| Device application | motor control |
| [Ie] rated operational current | 38 A |
| Range | TeSys |
| Current consumption | 1000 mA at 110...240 V AC I maximum while closing, 1000 mA at 110...220 V DC I maximum while closing |
| Product or component type | reverser block |
| [Uc] control circuit voltage | 110...220 V DC, 110...240 V AC 50/60 Hz |
| Device mounting | separate mounting |
| Range of product | TeSys Ultra |
| Complementary | |
| Network frequency | 40...60 Hz |
| Depth | 113 mm |
| Tightening torque | power circuit: 1.9-2.5 N.m pozidriv No 2 screwdriver 6 mm, power circuit: 1.9-2.5 N.m Philips No 2 screwdriver 6 mm, power circuit: 1.9-2.5 N.m flat screwdriver 6 mm, control circuit: 0.8-1.2 N.m Philips No 2 screwdriver 5 mm, control circuit: 0.8-1.2 N.m flat screwdriver 5 mm |
| Width | 45 mm |
| Operating time | 75 ms without change of direction, 150 ms with change of direction |
| Compatibility code | LU6MB |
| [Ui] rated insulation voltage | 600 V conforming to CSA C22.2 No 60947-4-1, 600 V conforming to UL 60947-4-1, 690 V conforming to IEC 60947-6-2 |
| Standards | CSA C22.2 No 60947-4-1, with phase barrier, UL 60947-4-1, with phase barrier, IEC 60947-6-2, EN 60947-6-2 |
| Inrush restraint duration | 15 ms DC, 25 ms AC |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-6-2 |
| Fixing mode | screw-fixed (plate), clipped (DIN rail) |
| Net weight | 0.425 kg |
| Connections - terminals | power circuit: screw clamp terminals 2 cable(s) 1.5-6 mm² (external diameter: 4 mm) flexible without cable end, power circuit: screw clamp terminals 2 cable(s) 1-6 mm² (external diameter: 4 mm) rigid, power circuit: screw clamp terminals 2 cable(s) 1-6 mm² (external diameter: 4 mm) flexible with cable end, power circuit: screw clamp terminals 1 cable(s) 2.5-10 mm² (external diameter: 4 mm) flexible without cable end, power circuit: screw clamp terminals 1 cable(s) 1-6 mm² (external diameter: 4 mm) flexible with cable end, power circuit: screw clamp terminals 1 cable(s) 1-10 mm² (external diameter: 4 mm) rigid, control circuit: screw clamp terminals 2 cable(s) 0.75-1.5 mm² (external diameter: 3 mm) rigid, control circuit: screw clamp terminals 2 cable(s) 0.75-1.5 mm² (external diameter: 3 mm) flexible without cable end, control circuit: screw clamp terminals 2 cable(s) 0.34-1.5 mm² (external diameter: 3 mm) flexible with cable end, control circuit: screw clamp terminals 1 cable(s) 0.75-1.5 mm² (external diameter: 3 mm) rigid, control circuit: screw clamp terminals 1 cable(s) 0.75-1.5 mm² (external diameter: 3 mm) flexible without cable end, control circuit: screw clamp terminals 1 cable(s) 0.34-1.5 mm² (external diameter: 3 mm) flexible with cable end |
| Height | 115 mm |
| [Ue] rated operational voltage | 690 V AC power circuit |
| Product certifications | Marine, ATEX, ASEFA, EAC, CCC, CSA, UL, CE |
| Environment | |
| Resistance to fast transients | 4 kV class 4 all circuits except for serial link conforming to IEC 61000-4-4, 2 kV class 3 serial link conforming to IEC 61000-4-4 |
| Immunity to radioelectric fields | 10 V conforming to IEC 61000-4-6 |
| Fire resistance | 650 °C conforming to IEC 60695-2-12, 960 °C parts supporting live components conforming to IEC 60695-2-12 |
| Operating altitude | 2000 m |
| Resistance to electrostatic discharge | 8 kV level 4, on contact conforming to IEC 61000-4-2, 8 kV level 3, in open air conforming to IEC 61000-4-2 |
| IP degree of protection | IP40 conforming to IEC 60947-1 (front panel outside connection zone), IP20 conforming to IEC 60947-1 (other faces), IP20 conforming to IEC 60947-1 (front panel and wired terminals) |
| Protective treatment | TH conforming to IEC 60068 |
| Ambient air temperature for storage | -40-85 °C |
| Vibration resistance | 4 gn (f= 5-300 Hz) power poles closed conforming to IEC 60068-2-27, 2 gn (f= 5-300 Hz) power poles open conforming to IEC 60068-2-27 |
| Shock resistance | 15 gn power poles closed conforming to IEC 60068-2-27, 10 gn power poles open conforming to IEC 60068-2-27 |
| Non-dissipating shock wave | 2 kV common mode conforming to IEC 60947-6-2, 1 kV serial mode conforming to IEC 60947-6-2 |
| Resistance to radiated fields | 10 V/m level 3 conforming to IEC 61000-4-3 |
| Ambient air temperature for operation | -25-70 °C with LUCA, LUCB, LUCC, LUCD, -25-60 °C with LUCM |
