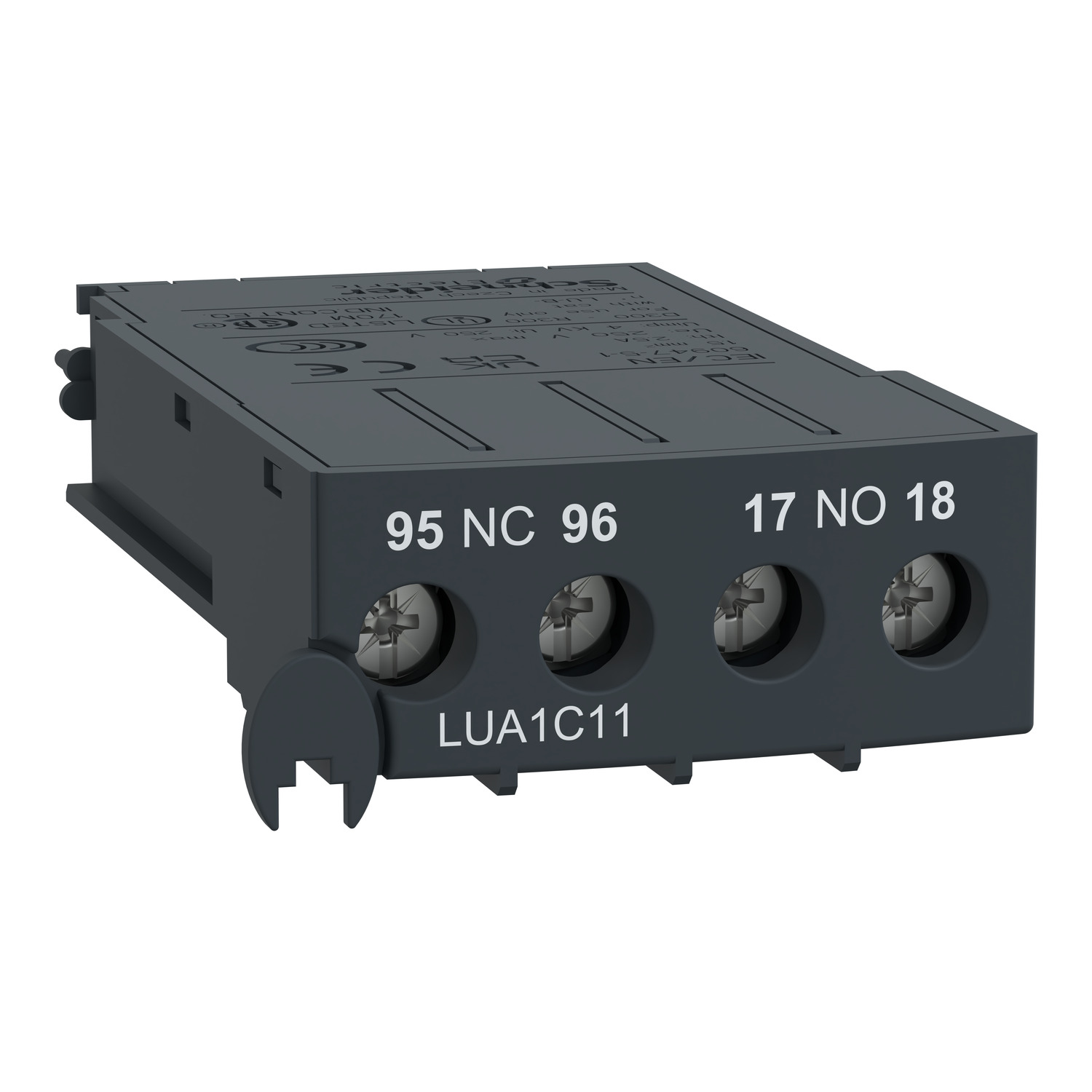

TeSys U auxiliary signaling contact block for TeSys U starter controllers. It provides 1NO contact for open/close status (OF contact) and 1NC contact for tripping status (SD contact), rated up to 5A 250V AC/DC. To be inserted in the provided location of the power base. Green Premium compliant (RoHS/REACh).
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | LUA1 |
| Range | TeSys |
| Product or component type | auxiliary contact |
| Range of product | TeSys Ultra |
| Complementary | |
| Minimum switching voltage | 17 V |
| Compatibility code | LUA1 |
| Minimum switching current | 5 mA |
| [Ui] rated insulation voltage | 250 V conforming to UL, 250 V conforming to IEC 60947-5-1, 250 V conforming to CSA |
| Net weight | 0.03 kg |
| Connections - terminals | screw clamp terminals |
| [Ith] conventional free air thermal current | 2.5 A |
| [Ue] rated operational voltage | <= 250 V DC, <= 250 V AC |
| Auxiliary contact composition | 1 NO + 1 NC |
| Signalling function | indicating rotary knob in ready position, fault signalling |
