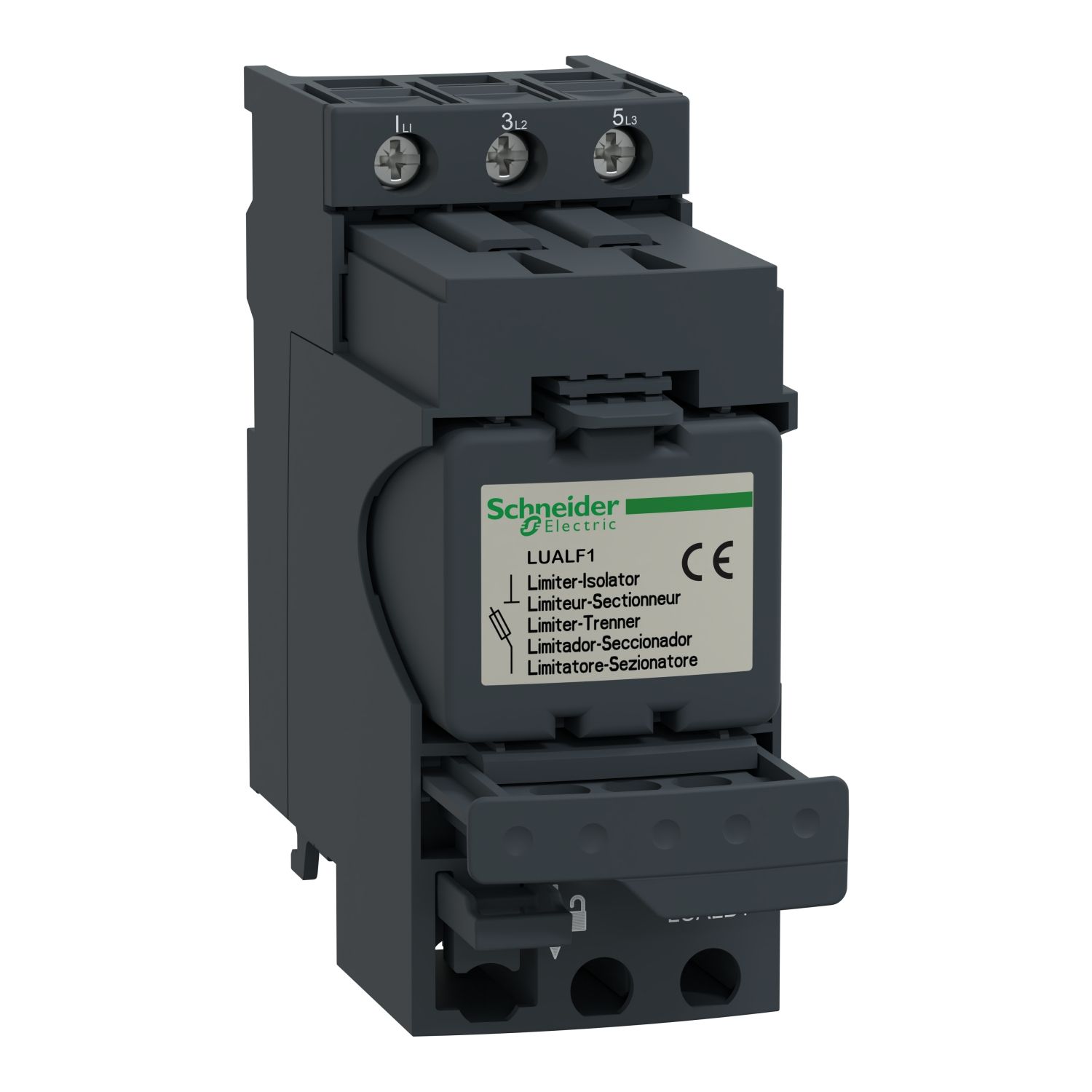

TeSys U short circuit current limiter block to be connected in series and upstream of a TeSys U starter controller. It increases the starter controller ability to withstand the short circuit current from 50 kA to 130 kA under 400 V. It includes a limiter cartridge LUALF1. To be mounted directly on the upstream terminals of a power base, it must be connected to one power base only. Green Premium compliant (RoHS/REACh).
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | LUA |
| Product compatibility | LU2B, LUB |
| Range | TeSys |
| Product or component type | limiter disconnector |
| Range of product | TeSys Ultra |
| Complementary | |
| Breaking capacity | 130 kA at <= 440 V, 70 kA at 690 V |
| Tightening torque | 1.9-2.5 N.m Philips No 2, 1.9-2.5 N.m flat Ø 6 mm |
| Activation threshold | 50 kA |
| Compatibility code | LUA |
| [Ui] rated insulation voltage | 690 V conforming to IEC 60947-1, 690 V conforming to EN 60947-1 |
| Mounting mode | direct |
| Connections - terminals | connector 2 x 1.5-6 mm² solid, connector 1 x 1.5-10 mm² solid, connector 2 x 1-6 mm² flexible without cable end, connector 2 x 1-6 mm² flexible with cable end, connector 1 x 1-6 mm² flexible with cable end, connector 1 x 1-10 mm² flexible without cable end |
| Net weight | 0.31 kg |
| [Ith] conventional free air thermal current | 32 A |
