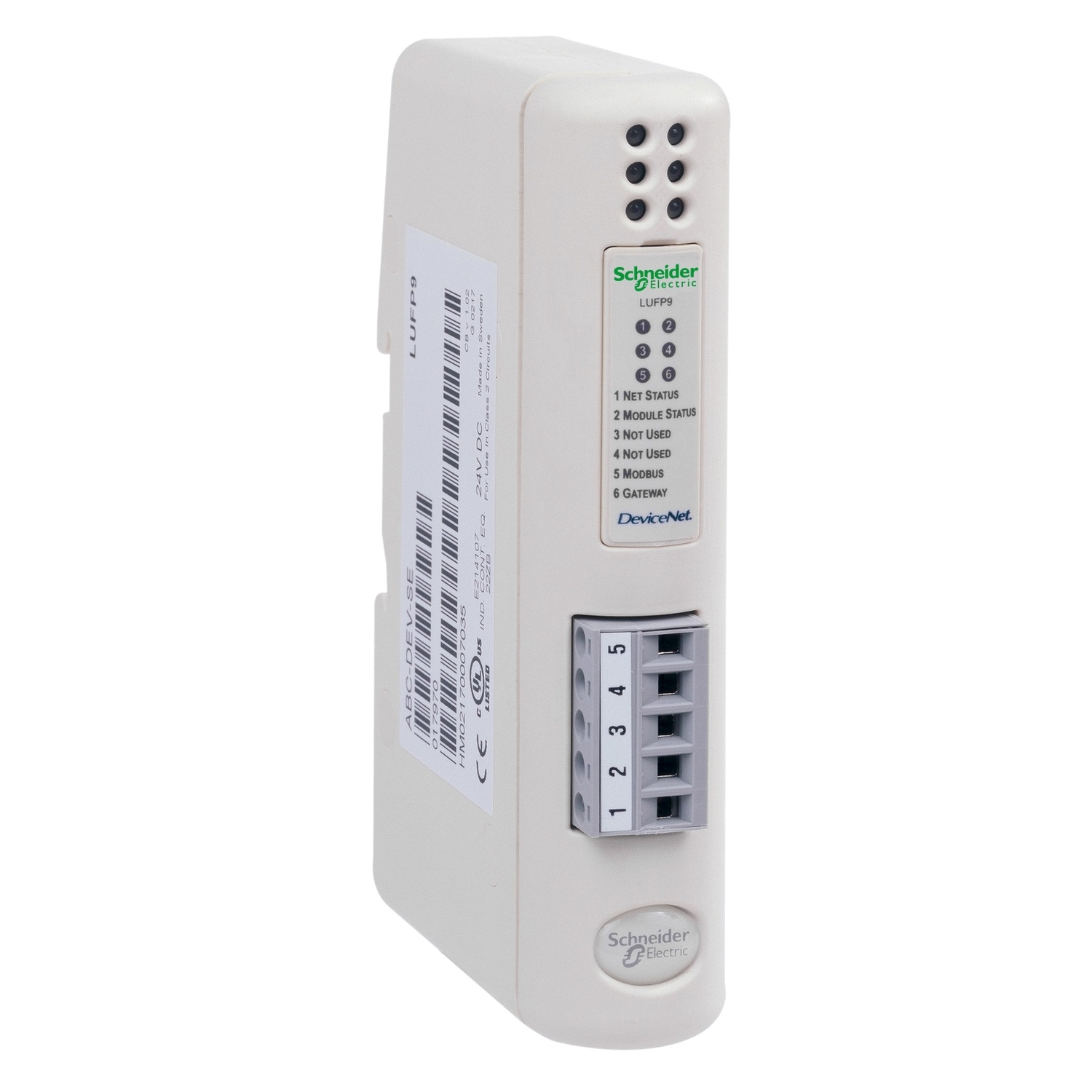

Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | LUF |
| Product compatibility | TeSys U starter-controllers, ATV31, ATS48 |
| Range | TeSys |
| Range of product | TeSys U |
| Product or component type | communication gateway |
| Complementary | |
| [Us] rated supply voltage | 24 V DC +/- 10 % |
| Compatibility code | LUF |
| Bus type | Modbus, DeviceNet |
| Local signalling | LED front panel |
| Connector type | RJ45 to a PC, RJ45 Modbus, 1 removable 5-way screw connector field bus |
| Net weight | 0.245 kg |
| Services | monitoring - bus type: DeviceNet - functions available: 256 configurable words, configuration and adjustment - bus type: Fipio - functions available: by gateway mini messaging facility, command - bus type: DeviceNet - functions available: 256 configurable words |
| Maximum number of connections | <= 8 Modbus slaves |
| Current consumption | 280 mA maximum, 100 mA typical |
| Environment | |
| IP degree of protection | IP20 |
| Pollution degree | 2 conforming to IEC 60664 |
| Electromagnetic compatibility | electromagnetic immunity conforming to IEC 61000-6-2, electromagnetic emission conforming to IEC 50081-2 |
| Ambient air temperature for installation | 5-50 °C |
