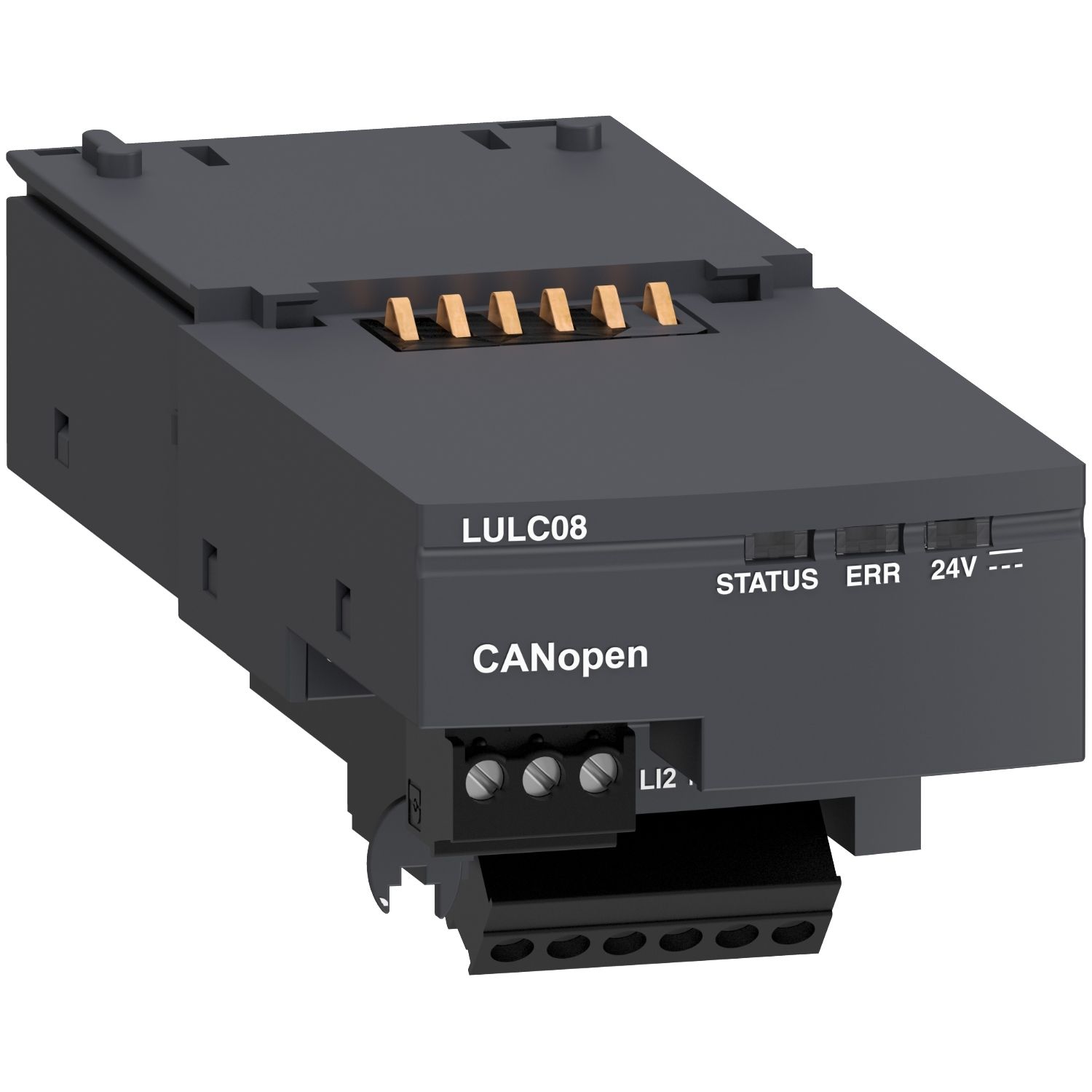

TeSys U communication module for CANopen, to be inserted in advanced power bases LUB120, LUB320, LUB380 equipped with a BL type (24V DC) LUC control unit. It provides a 9-point SUB-D male connector for connection to a CANopen network, a plug-in terminal block for the connection to an external power supply 24V DC, in addition with 2 x configurable logic inputs 24V DC and 1 x logic output 24V DC. On the bottom, a 3-point plug-in terminal block is provided for the local control of the starter controller, to be associated with a control terminal block LU9BN11L for a LUB base or LU9MRL for a LU2B base. It displays 3 LEDs giving the status of the module (24V) and communication line (STATUS, ERR). Certified when used in conjunction with a LUB power base (IEC, UL, CSA, CCC, EAC, Marine).
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | LUL |
| Device application | communication |
| Product compatibility | LUCB, LUCM, LUCC, LUCD, LUCL, LUCA |
| Range | TeSys |
| Range of product | TeSys U |
| Product or component type | communication module |
| Range compatibility | TeSys TeSys U LU2B reversing power base, TeSys TeSys U LUB non reversing power base |
| Complementary | |
| Tightening torque | 0.2-0.25 N.m2.5 mm |
| Connection pitch | 3.81 mm |
| Compatibility code | LUL |
| Bus type | CANopen |
| Physical interface | 9-way SUB-D female |
| Mounting mode | plug-in |
| [Us] rated supply voltage | 24 V DC |
| Function available | communication module |
| Connections - terminals | screw clamp terminals 2 cable(s) 0.5-0.5 mm²flexible with cable end, screw clamp terminals 2 cable(s) 0.25-0.34 mm²flexible with cable end, screw clamp terminals 2 cable(s) 0.14-0.75 mm²flexible without cable end, screw clamp terminals 2 cable(s) 0.14-0.5 mm²rigid without cable end, screw clamp terminals 1 cable(s) 0.25-1 mm²flexible with cable end, screw clamp terminals 1 cable(s) 0.25-0.5 mm²flexible with cable end, screw clamp terminals 1 cable(s) 0.14-1 mm²rigid without cable end, screw clamp terminals 1 cable(s) 0.14-1 mm²flexible without cable end |
| Logic input | positive at 24 V DC - 7 mA |
| Protection type | gL fuse 2 A |
| Addressing | 1...127 |
| Local signalling | 3 LEDs front panel |
| Switching current capacity | 0.5 mA at 24 V |
| Communication port protocol | CAN2.B, CAN2.0A |
| Mounting location | front side |
| Input type | resistive |
| Current consumption | 1.5 mA at 24 V DC 20...28 V |
| Response time | 10 ms +/- 30 % change to state 1, 10 ms +/- 30 % change to state 0 |
| Number of outputs | 1, 2 dedicated to starter-controller coil operation |
| Associated cable type | AWG 26...AWG 16 |
| Output current | <= 500 mA |
| Environment | |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Ambient air temperature for operation | -25-55 °C |
| Standards | CIADS-301 V4.02, DR 303-2 |
