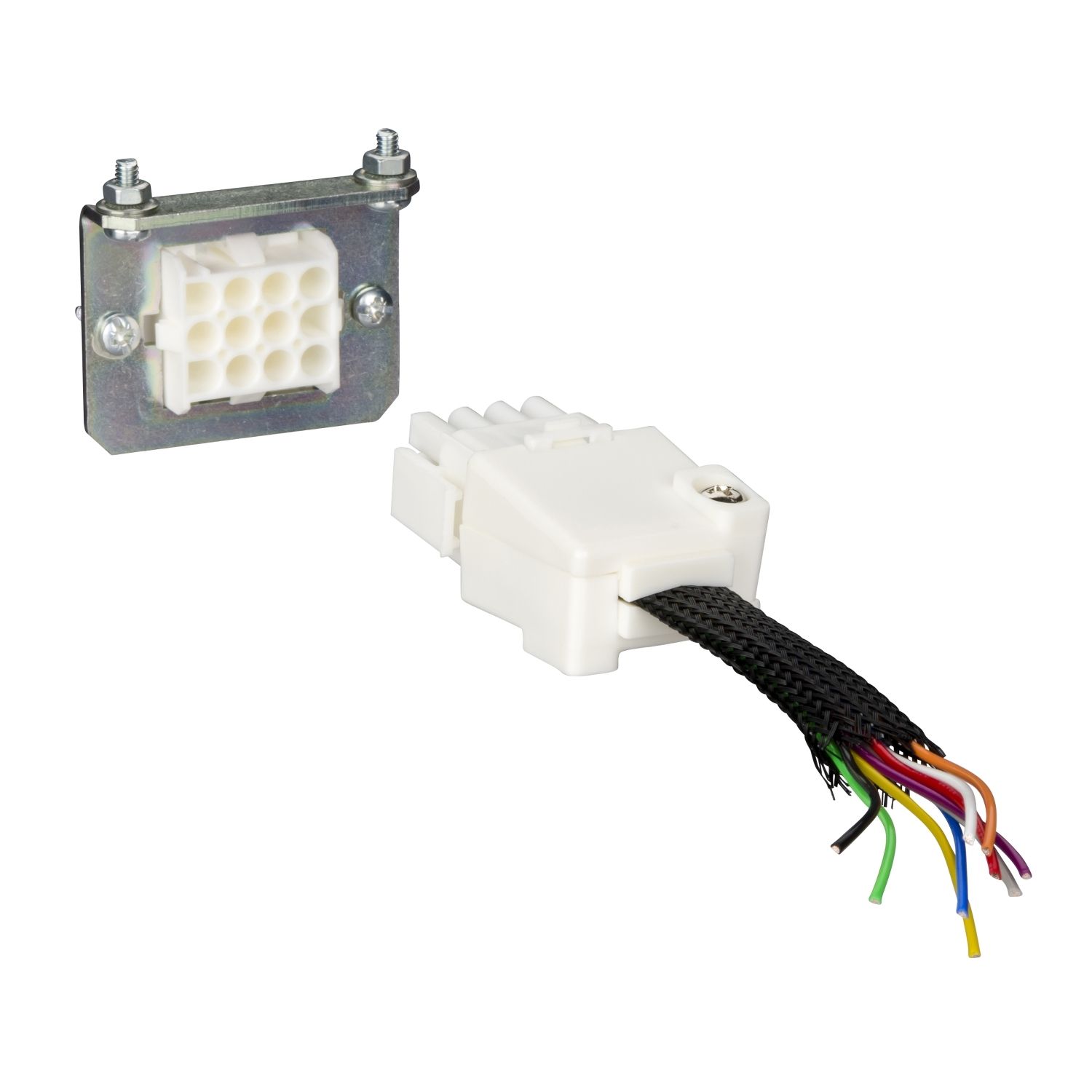

This is a manual connector for Compact NSX 100 to 630 auxiliaries connection. It is adapted for withdrawable circuit breakers. It is made of a fixed and a moving part with 9 wires. The terminal block has numbered terminals for the connection of wires. The wire section is 1.5mm² for auxiliary contacts and voltage releases. The wire section is 2.5mm² for motor mechanisms. The circuit breaker can be equipped with 3 manual connectors with 9 wires each. When the withdrawable circuit breaker is in disconnected position, the auxiliaries remain connected.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | 9-wire auxiliary connector |
| Device application | wiring |
| Range | ComPacT |
| Range of product | ComPact NSX400...630 DC, ComPact NSX100...250 DC, ComPact NSX400...630, ComPact NSX100...250, ComPacT NSX400...630 DC new generation, ComPacT NSX100...250 DC new generation, ComPacT NSX400...630 new generation, ComPacT NSX100...250 new generation |
| Product or component type | connector kit |
| Range compatibility | ComPact ComPact NSX DC, ComPact ComPact NSX, ComPacT new generation ComPacT NSX DC new generation, ComPacT new generation ComPacT NSX new generation |
| Complementary | |
| Total number of wires | 9 |
