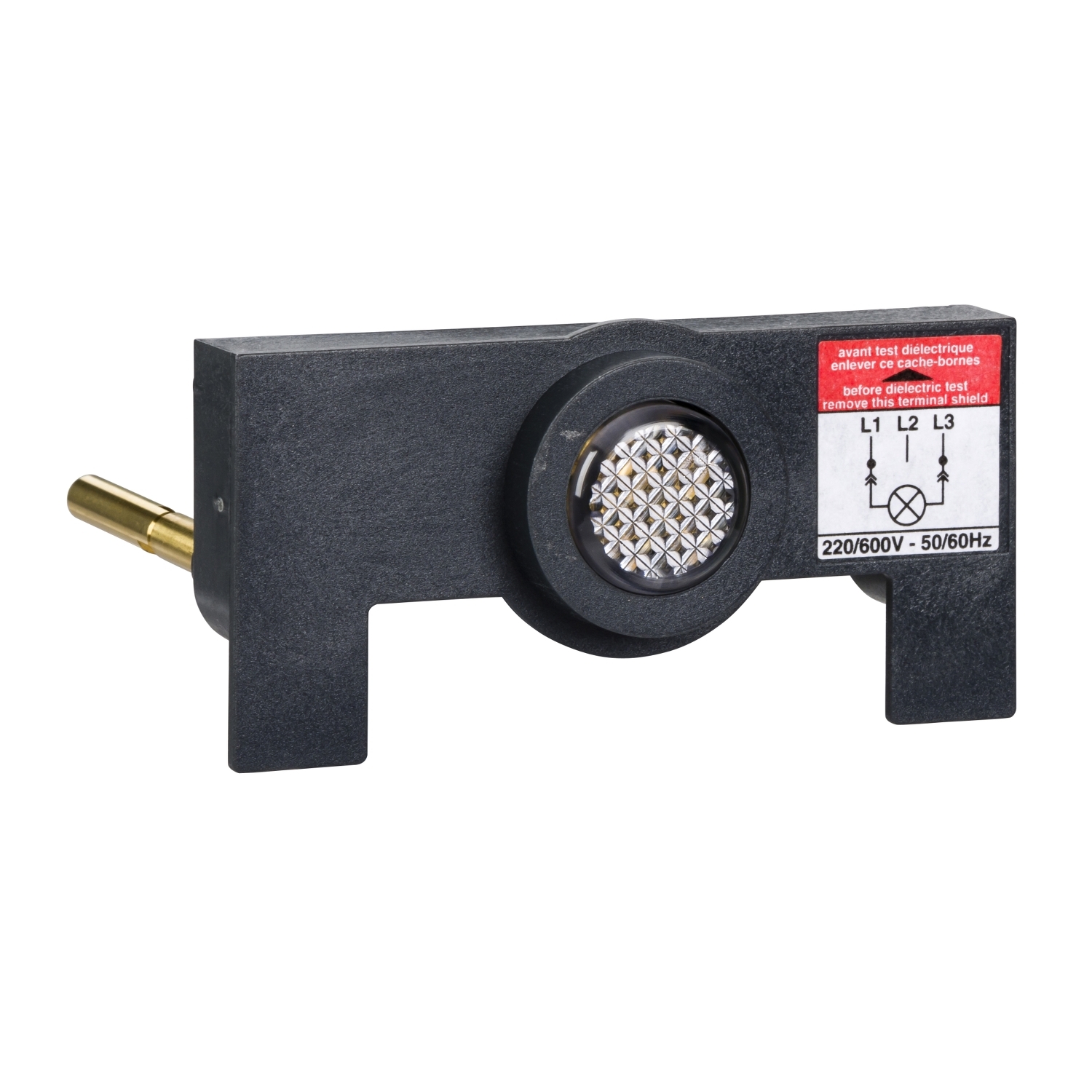

This is a voltage presence indicator for Compact NSX 100/160/250. This accessory detects and indicates that circuit breaker terminals are supplied with power. It may be positioned upstream or downstream of the circuit breaker. It operates with voltages ranging from 220VAC to 550VAC. It lights up when the voltage is above 0.85 Un. It is not compatible with the motor mechanism module.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device application | monitoring |
| Poles description | 4P, 3P |
| Range | ComPacT |
| Product or component type | voltage presence indicator |
| Range compatibility | ComPact Compact INV100...250, ComPact INS250, ComPact ComPact NSX250, ComPact ComPact NSX160, ComPact ComPact NSX100 |
| [In] rated current | 250 A |
| Range of product | ComPact NSX100...250 |
| Complementary | |
| [Ue] rated operational voltage | 220...550 V |
| Network type | AC |
| Network frequency | 50/60 Hz |
| Environment | |
| IP degree of protection | IP40 conforming to IEC 60529 |
| IK degree of protection | IK04 conforming to IEC 62262 |
