Extended rotary handle, Compact NSX <630, ComPact NSX 400/630, black handle, shaft length 209mm to 600mm, IP55
Manufacturer: Schneider Electric
SKU: LV432598
GTIN: 3606480020346
Old price: $412.50 inc GST
$276.01 inc GST
Supported cards
Supported cards

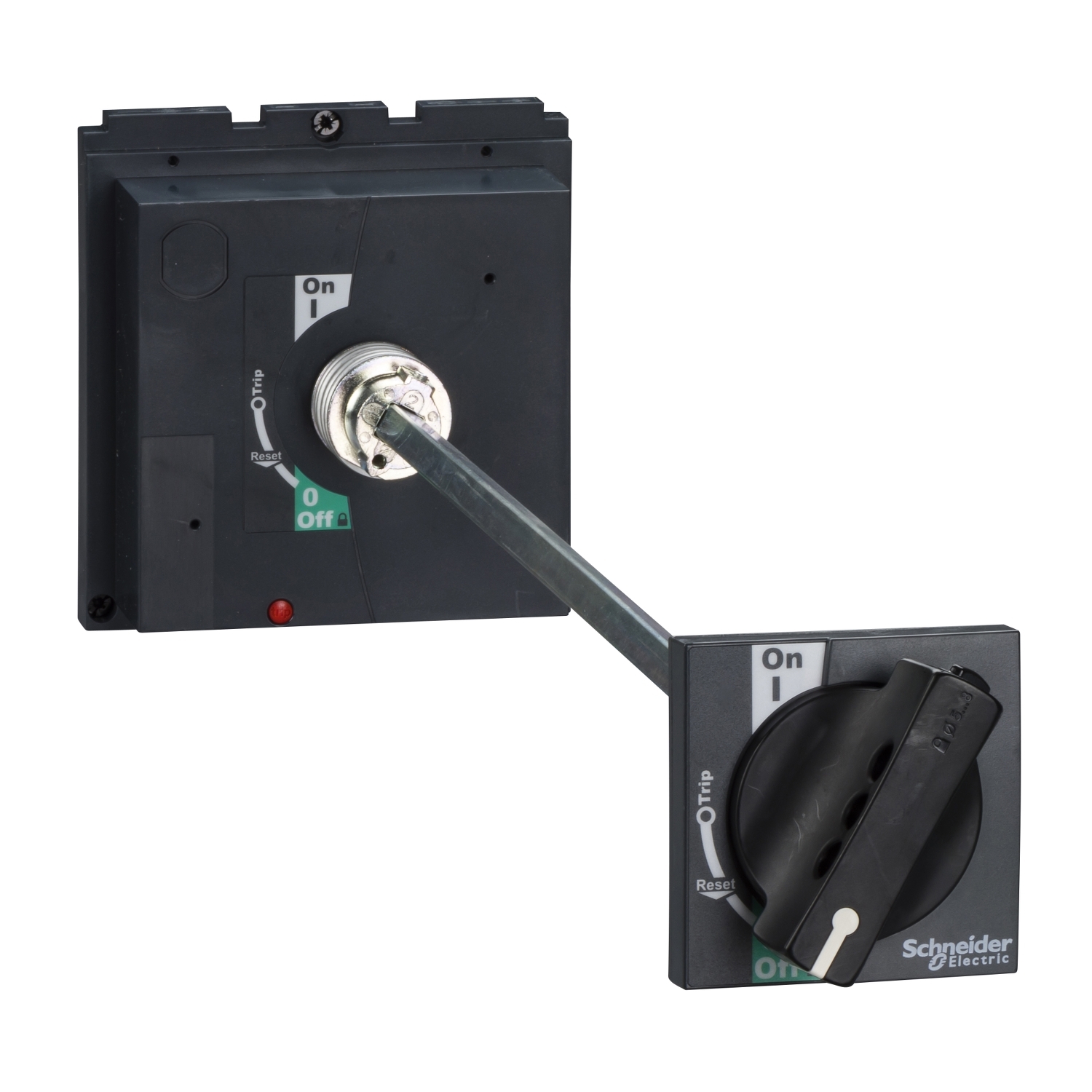

It is an extended rotary handle for Compact NSX 400/630, PowerPact Multistandard L frames and EasyPact CVS 400/630 devices. It is suitable for isolation and it is used for standard applications. It maintains the access to trip unit settings and to the push to trip button. It is equipped with a standard black handle. There is an indication of the three device positions O (OFF), I (ON) and tripped. This extended version makes possible to operate devices installed at back of switchboards, from the switchboard front. The distance between the back of the circuit breaker and the switchboard door is from 185mm to 600mm. The degrees of protection are IP55 and IK08. This rotary handle is padlockable in the OFF position using 1 to 3 padlocks not supplied (shackle diameter 5 to 8mm). As an option, it is possible to install a Ronis or Profalux keylock on the base of the handle to obtain the same function as with a padlock.

Products specifications

Attribute name Attribute value
Main
Range of product ComPact NSX400...630
Rotary handle mounting style extended
Accessory / separate part type control accessories
Product or component type rotary handle
Handle colour black
Handle front plate colour black
Complementary
Compatibility code extended rotary handle
Rotary handle mounting location front
Rotary handle padlocking padlock in OFF position, 1 to 3 padlocks
Range compatibility PowerPact PowerPact Multistandard, EasyPact EasyPact CVS630, EasyPact EasyPact CVS400, ComPact ComPact NSX630, ComPact ComPact NSX400
Environment
IP degree of protection IP55
