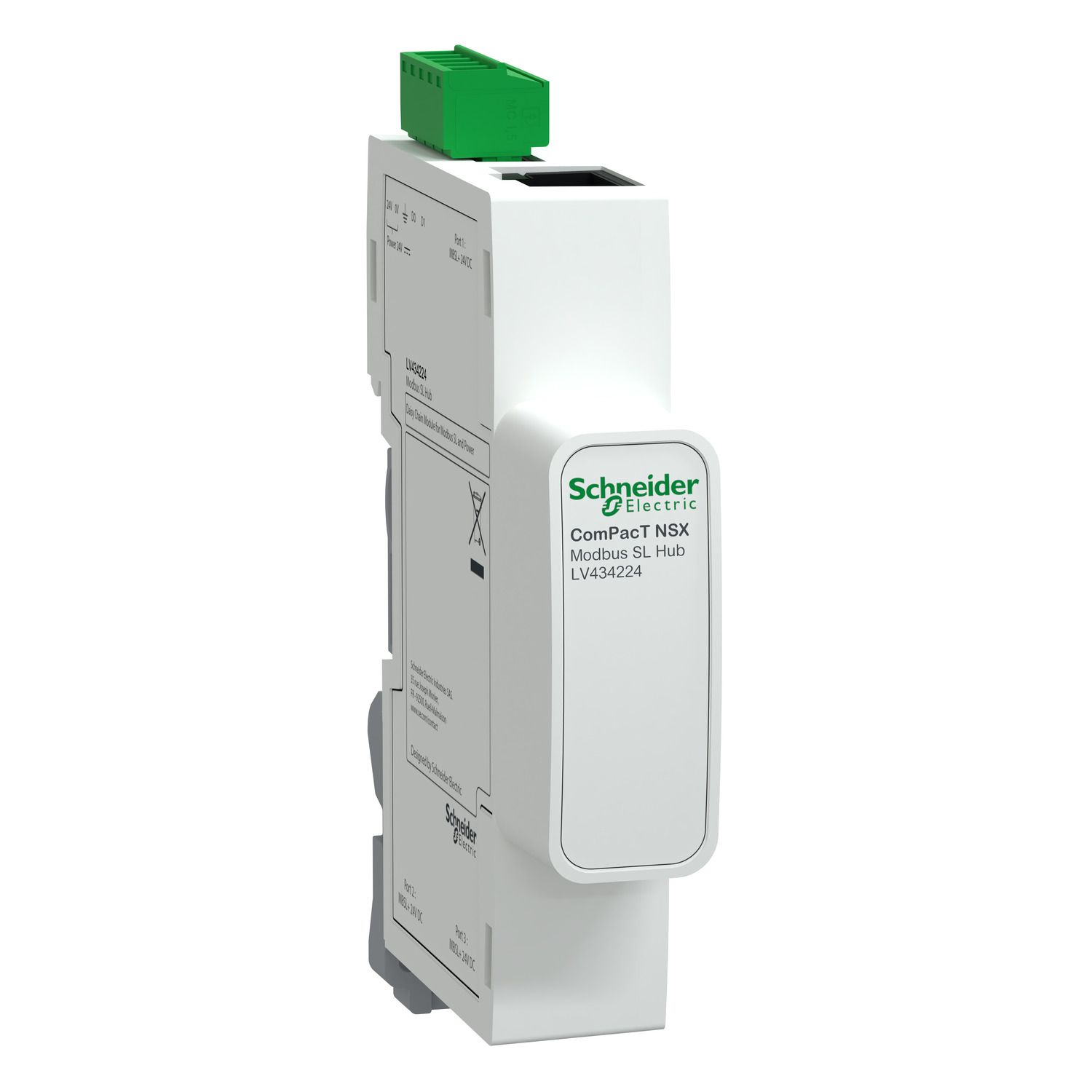

Modbus hub is an accessory for ComPacT NSX breaker to daisy chain Modbus connectivity. It has 3 RJ45 interface to each of which it can connect one BSCM Modbus SL/ULP module via BSCM Modbus Cord. The Modbus hub is installed on a DIN rail. It has an interface to connect stacking connector via which it can be connected to IFM or IFE modules. Modbus Hub also has a terminal block to where it can take 24VDC as input and also can be used to connect other Modbus serial devices and gateways. The BSCM Modbus SL/ULP module’s operational voltage is 24VDC.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Product or component type | Modbus hub |
| Range of product | ComPact NSX100...250, ComPact NSX400...630 |
| Range | ComPacT |
| Device short name | Modbus SL HUB |
| Range compatibility | ComPact NSX100, ComPact NSX160, ComPact NSX250, ComPacT NSX400, ComPacT NSX630 |
| Function of module | daisy chain for Modbus devices |
| Device application | communication |
| Complementary | |
| Connections - terminals | RJ45 connector |
| Standards | CISPR 32, IEC 61000-4-3, IEC 61000-4-6, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-2 |
| Mounting support | 35 mm DIN rail |
| Width | 71 mm |
| Depth | 18 mm |
| Power consumption in W | 0.048 W |
| Communication network type | Modbus, Modbus Serial line slave9.6...38.4 kbauds |
| Mounting mode | by clips |
| Input voltage | 24 V DC +/- 10 % |
| Product certifications | UL |
| Net weight | 57.6 g |
| Current consumption | 2 mA 24 V DC room temperature |
| Accuracy class | class 2 power supply |
| [Us] rated supply voltage | 24 V DC |
| Height | 102 mm |
| Environment | |
| Ambient air temperature for operation | -25-55 °C |
| Pollution degree | 3 |
| Ambient air temperature for storage | -40-85 °C |
| Relative humidity | 5-85 % at 55-55 °C without condensation |
| Contractual warranty | |
| Warranty | 18 |
