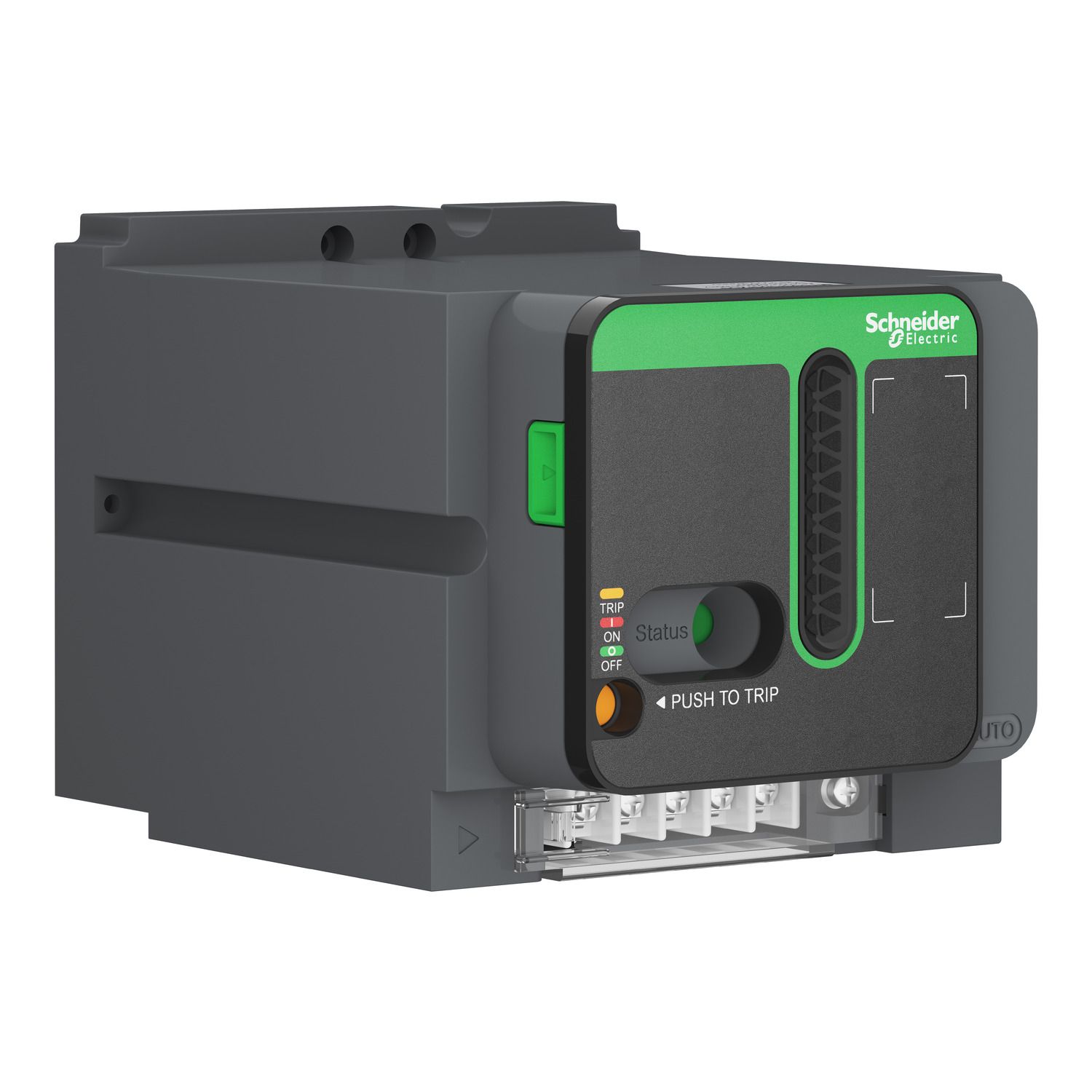

These motor mechanism is suitable for EasyPact CVS. This product can work below rated operational voltage(Ue) 110VAC to 230VAC at 50/60Hz and 110VDC to 230VDC. It can be controled by local and remote. The control signal type is impluse and maintained. The degrees of protection is IK07.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | motor mechanism module |
| Range | EasyPact |
| Product name | EasyPact CVS |
| Product or component type | motor mechanism |
| Product compatibility | EasyPact CVS100...250 circuit-breaker |
| Complementary | |
| Maximum power consumption in VA | 150 VA opening, 150 VA closing |
| Maximum operating frequency | <= 3 cycles per minute |
| Provided equipment | keylock |
| Electrical durability | 25000 cycles 110...230 V DC, 25000 cycles 110...230 V AC 50/60 Hz |
| Mounting mode | fixed |
| Control signal type | impulse and maintained |
| Control type | local/remote control |
| Response time | <= 700 ms (closing), <= 350 ms (opening) |
| IK degree of protection | IK07 |
| Locking options description | transparent cover |
| [Uc] control circuit voltage | 110...230 V DC, 110...230 V AC 50/60 Hz |
