Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device application | control |
| Voltage release type | opening coil, closing coil |
| Range | MasterPacT |

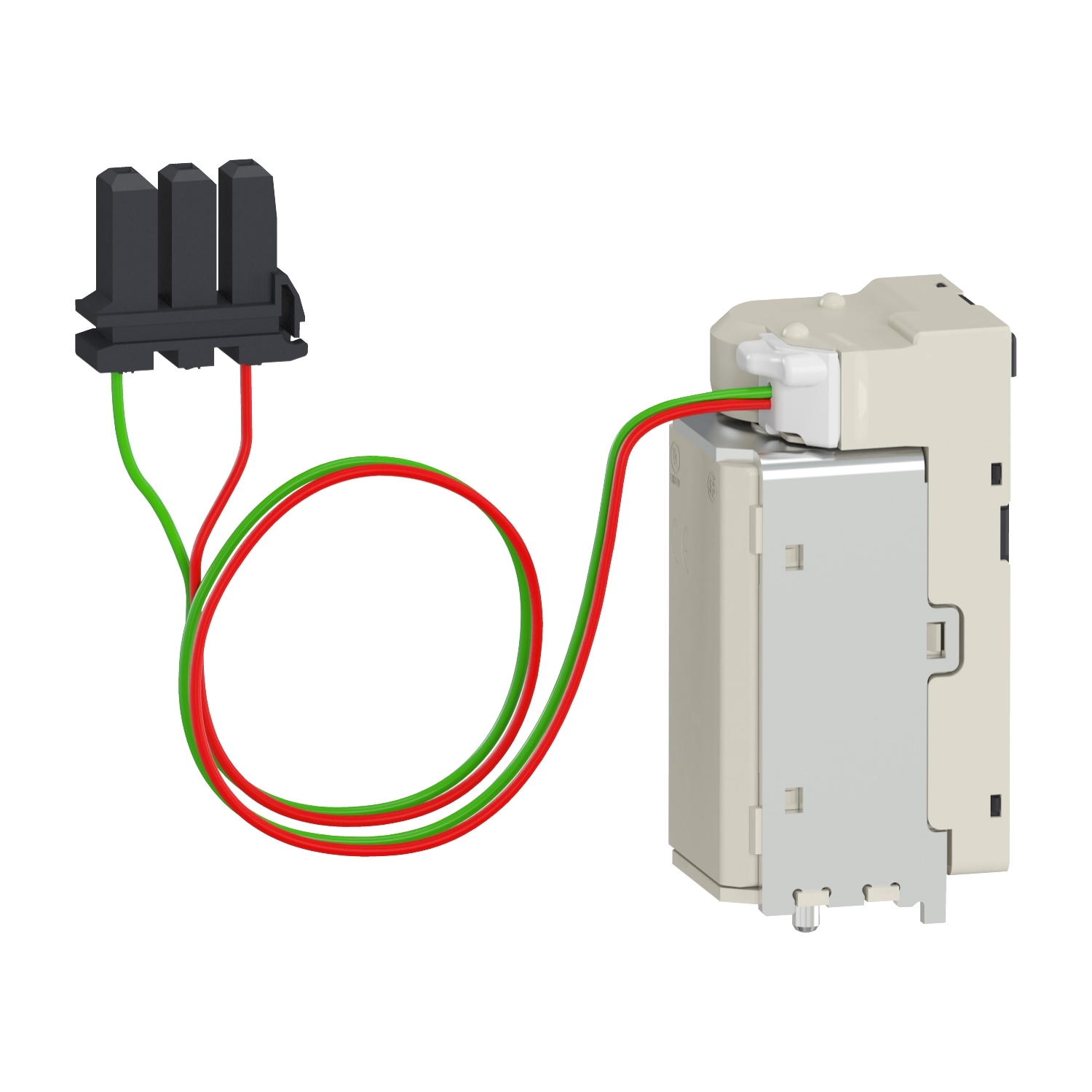

| Product or component type | voltage release |
| Range compatibility | Masterpact MasterPact MTZ1 circuit-breaker, Masterpact MasterPact MTZ3 circuit-breaker, Masterpact MasterPact MTZ2 circuit-breaker |
| Complementary | |
| Threshold tripping voltage | 0.85...1.1 Un on closing, 0.7...1.1 Un on opening |
| Mounting mode | fixed/drawout |
| Operating time | 90 ms on closing for MasterPact MTZ3, 80 ms on closing for MasterPact MTZ2, 65 ms on closing for MasterPact MTZ1, 60 ms on opening for MasterPact MTZ3, 60 ms on opening for MasterPact MTZ2, 60 ms on opening for MasterPact MTZ1 |
| Offer type | spare part |
| Provided equipment | 1 instruction sheet |
| Supply holding power | 4.5 VA |
| [Uc] control circuit voltage | 380...480 V AC 50/60 Hz |
