Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | MN diag |
| Device application | safety |
| Voltage release type | instantaneous |
| Operating time | 95 ms on opening for MasterPact MTZ3, 95 ms on opening for MasterPact MTZ2, 45 ms on opening for MasterPact MTZ1 |
| Range | MasterPacT |

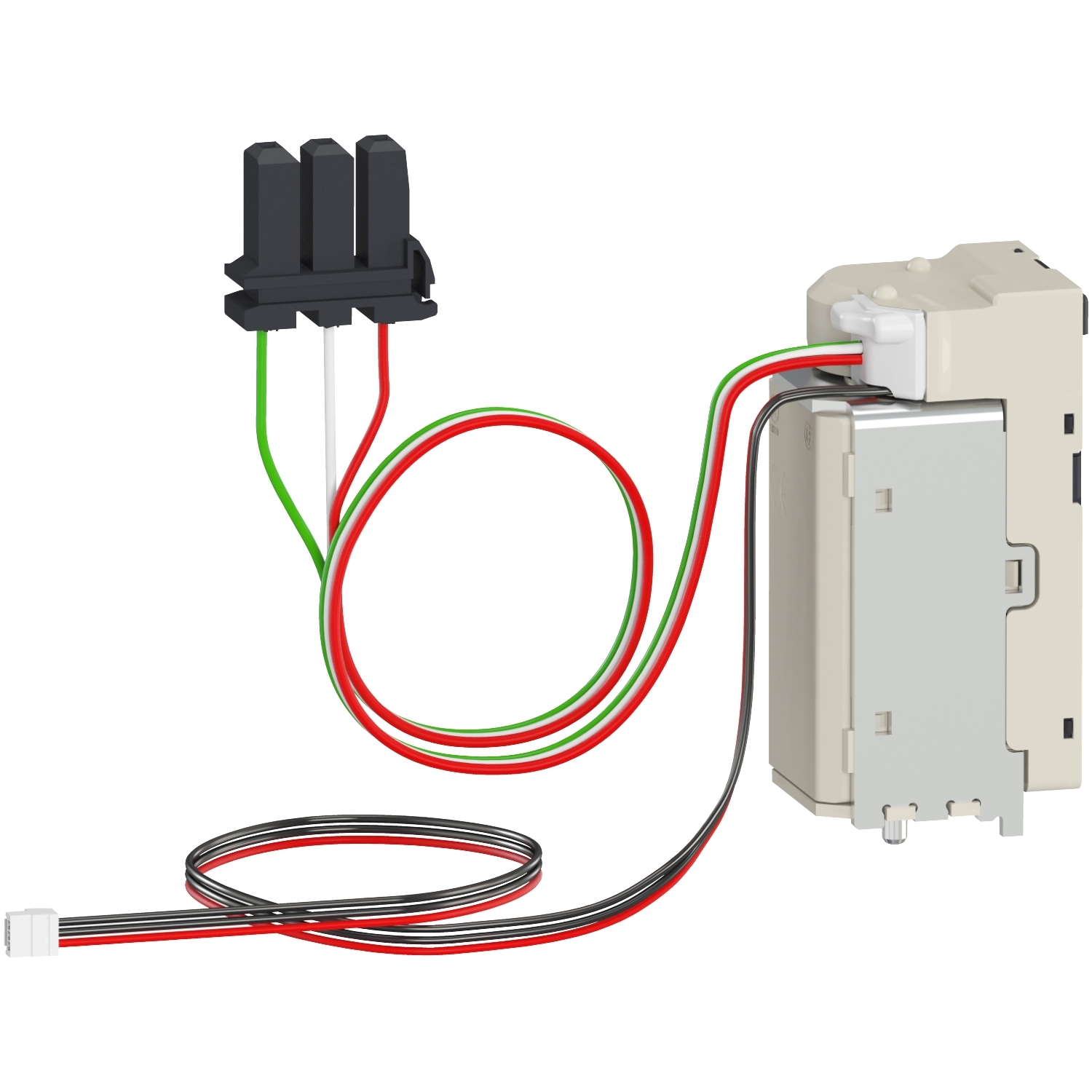

| Product or component type | undervoltage release |
| Range compatibility | Masterpact MasterPact MTZ3 circuit breaker, Masterpact MasterPact MTZ2 circuit breaker, Masterpact MasterPact MTZ1 circuit breaker |
| Complementary | |
| Threshold tripping voltage | 0.85 Un closing, 0.35...0.7 Un opening |
| Mounting mode | fixed/drawout |
| Control type | communicating |
| Offer type | spare part |
| Provided equipment | 1 instruction sheet |
| Supply holding power | 4.5 W |
| [Uc] control circuit voltage | 100...130 V DC, 100...130 V AC 50/60 Hz |
| Signalling function | MN open, coil powered, error |
