Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | EF |
| Device application | control |
| Signal contacts composition | 1 NO/NC |
| Range | MasterPacT |

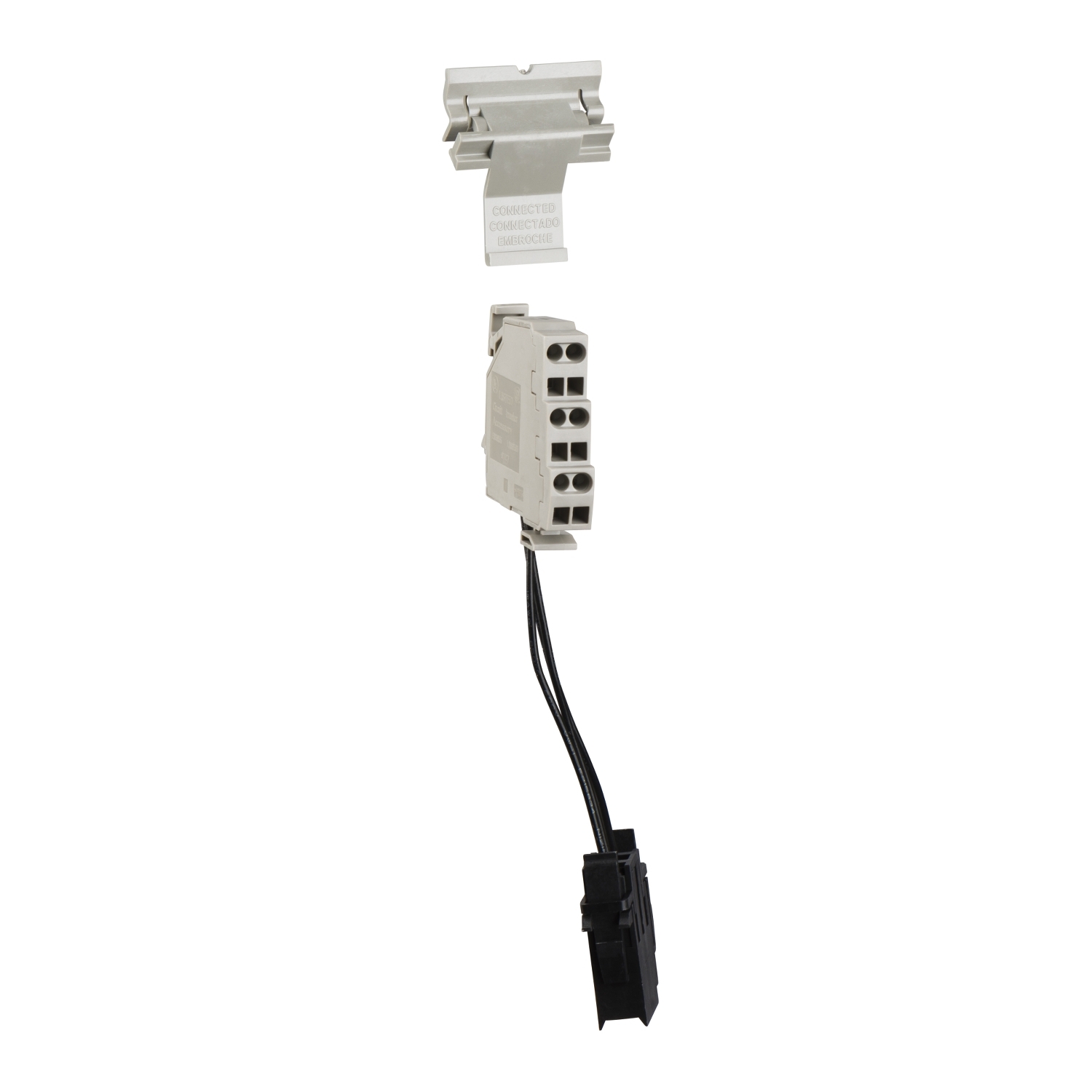

| Product or component type | auxiliary contact |
| Range compatibility | Masterpact MasterPact MTZ3 circuit breaker, Masterpact MasterPact MTZ2 circuit breaker |
| Complementary | |
| Minimum load | 100 mA at 24 V |
| [Ie] rated operational current | AC-12: 6 A at 480 V AC 50/60 Hz, AC-12: 6 A at 240/380 V AC 50/60 Hz, DC-12: 2.5 A at 24/48 V DC, DC-12: 0.8 A at 125 V DC, DC-12: 0.3 A at 250 V DC, AC-12: 6 A at 690 V AC 50/60 Hz |
| Auxiliary contacts type | standard |
| Mounting mode | drawout |
| Auxiliary contacts operation | connected position |
| Offer type | spare part |
| Provided equipment | 1 instruction sheet |
