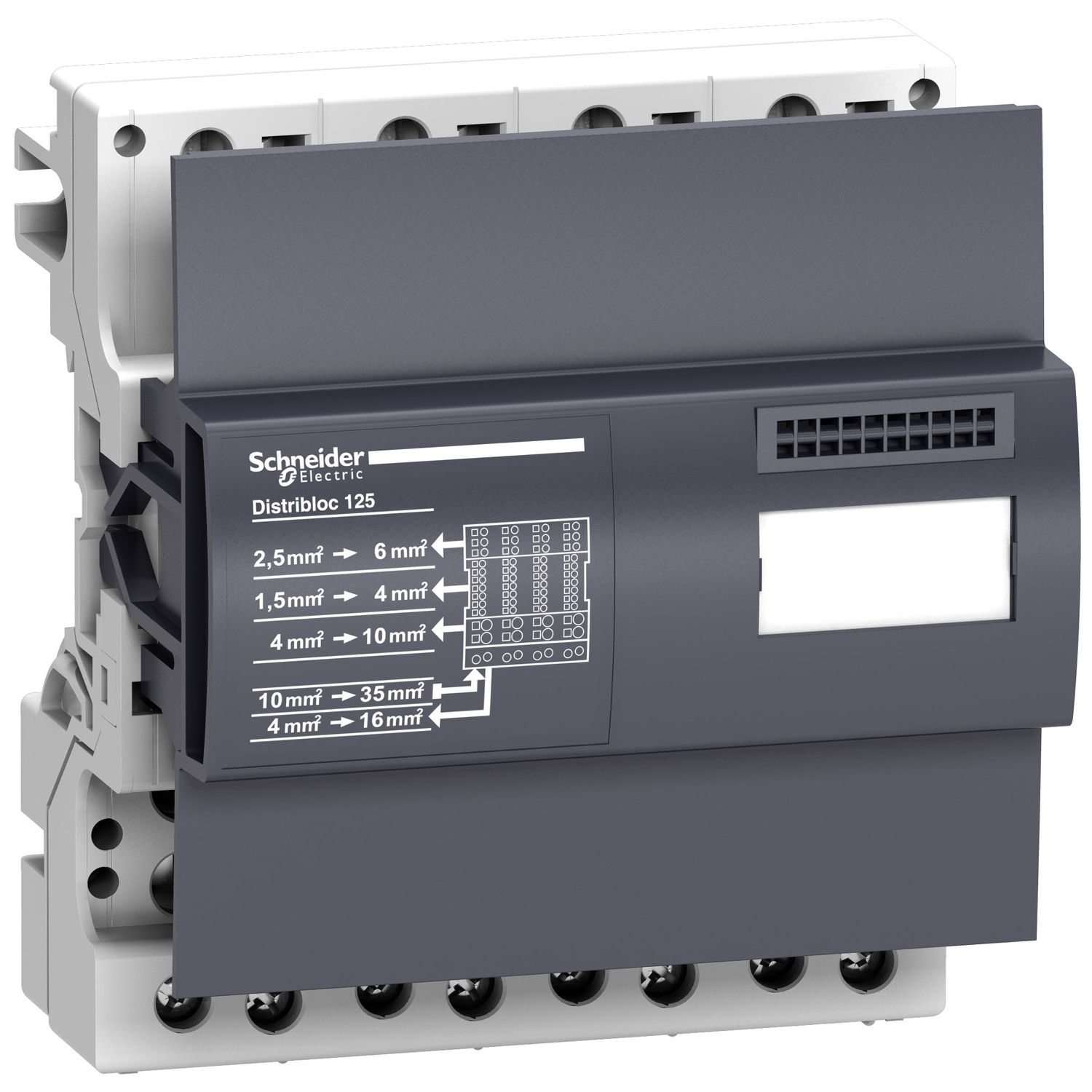

Distribution block from Linergy DX designed to enhance power distribution efficiency in electrical systems. Compatible with PrismaSeT G, PrismaSeT P and PrismaSeT Pack 250 enclosures as well as Acti 9 and ComPact devices. Linergy DX distribution block with 125A 4P 690V AC, for Enclosed terminals. For busbar cross-section 6 module.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| IP degree of protection | IPxx B |
| Range | Linergy |
| Product name | Linergy DX |
| Product or component type | distribution block |
| Accessory / separate part category | current distribution accessory |
| Range compatibility | PrismaSeT PrismaSeT Pack 250 enclosure, PrismaSeT Prisma PH enclosure, PrismaSeT PrismaSeT P enclosure, PrismaSeT PrismaSeT G enclosure |
| Range of product | Linergy |
| Complementary | |
| [Ipk] rated peak withstand current | 20 kA |
| I²t on activation | 20250000 A².s |
| [Icw] rated short-time withstand current | 4.5 kA for 1 s |
| Depth | 48 mm |
| Width | 108 mm |
| Colour | anthracite grey (RAL 7016) |
| [Uimp] rated impulse withstand voltage | 8 kV |
| Compatibility code | DISTRIBLOC |
| Poles description | 4P |
| Enclosure/cubicle width | 600 mm Prisma Pack 250 Pack enclosure Multi9 NG125 with fixed toggle 4P 1 direct 6 , 600 mm Prisma Pack 250 Pack enclosure Multi9 NG125 with fixed toggle 3P 1 direct 6 , 600 mm Prisma Pack 250 Pack enclosure Acti 9 iC120 with fixed toggle 4P 1 direct 6 , 600 mm Prisma Pack 250 Pack enclosure Acti 9 iC120 with fixed toggle 3P 1 direct 6 , 600 mm Prisma Pack 250 Pack enclosure Acti 9 C120 with fixed toggle 4P 1 direct 6 , 600 mm Prisma Pack 250 Pack enclosure Acti 9 C120 with fixed toggle 3P 1 direct 6 , 600 mm Prisma Pack 250 Pack enclosure Multi9 NG125 without fixed toggle 4P 1 direct 6 , 600 mm Prisma Pack 250 Pack enclosure Multi9 NG125 without fixed toggle 3P 1 direct 6 , 600 mm Prisma Pack 250 Pack enclosure ComPact INS63 fixed direct front rotary handle vertical 4P 1 direct 6 , 600 mm Prisma Pack 250 Pack enclosure ComPact INS63 fixed direct front rotary handle vertical 3P 1 direct 6 , 600 mm Prisma Pack 250 Pack enclosure ComPact INS40 fixed direct front rotary handle vertical 4P 1 direct 6 , 600 mm Prisma Pack 250 Pack enclosure ComPact INS40 fixed direct front rotary handle vertical 3P 1 direct 6 , 600 mm Prisma Pack 250 Pack enclosure ComPact INS160 fixed direct front rotary handle vertical 4P 1 direct 6 , 600 mm Prisma Pack 250 Pack enclosure ComPact INS160 fixed direct front rotary handle vertical 3P 1 direct 6 , 600 mm Prisma Pack 250 Pack enclosure ComPact INS125 fixed direct front rotary handle vertical 4P 1 direct 6 , 600 mm Prisma Pack 250 Pack enclosure ComPact INS125 fixed direct front rotary handle vertical 3P 1 direct 6 , 600 mm Prisma Pack 250 Pack enclosure ComPact INS100 fixed direct front rotary handle vertical 4P 1 direct 6 , 600 mm Prisma Pack 250 Pack enclosure ComPact INS100 fixed direct front rotary handle vertical 3P 1 direct 6 , 600 mm Prisma Pack 250 Pack enclosure Acti 9 iC120 without fixed toggle 4P 1 direct 6 , 600 mm Prisma Pack 250 Pack enclosure Acti 9 iC120 without fixed toggle 3P 1 direct 6 , 600 mm Prisma Pack 250 Pack enclosure Acti 9 C120 without fixed toggle 4P 1 direct 6 , 600 mm Prisma Pack 250 Pack enclosure Acti 9 C120 without fixed toggle 3P 1 direct 6 , 300 mm PrismaSeT G wall-mounted duct ComPact NSXm with fixed toggle vertical 3P or 4P 1 direct 7 , 300 mm PrismaSeT G floor-standing duct ComPact NSXm with fixed toggle vertical 3P or 4P 1 direct 7 , 600 mm PrismaSeT G wall-mounted enclosure ComPact NSXm with fixed toggle vertical 3P or 4P 1 direct 7 , 600 mm PrismaSeT G floor-standing enclosure ComPact NSXm with fixed toggle vertical 3P or 4P 1 direct 7 , 300 mm PrismaSeT G wall-mounted duct ComPact NSXm without fixed toggle vertical 3P or 4P 1 direct 7 , 300 mm PrismaSeT G floor-standing duct ComPact NSXm without fixed toggle vertical 3P or 4P 1 direct 7 , 600 mm PrismaSeT G wall-mounted enclosure ComPact NSXm without fixed toggle vertical 3P or 4P 1 direct 7 , 600 mm PrismaSeT G floor-standing enclosure ComPact NSXm without fixed toggle vertical 3P or 4P 1 direct 7 , 600 mm PrismaSeT G wall-mounted enclosure ComPact NG160 with fixed toggle 4P 1 direct 5 , 600 mm PrismaSeT G floor-standing enclosure ComPact NG160 with fixed toggle 4P 1 direct 5 , 600 mm PrismaSeT G wall-mounted enclosure ComPact NG160 with fixed toggle 3P 1 direct 5 , 600 mm PrismaSeT G floor-standing enclosure ComPact NG160 with fixed toggle 3P 1 direct 5 , 300 mm PrismaSeT G wall-mounted duct Multi9 NG125 with fixed toggle 4P 1 direct 4 , 300 mm PrismaSeT G floor-standing duct Multi9 NG125 with fixed toggle 4P 1 direct 4 , 300 mm PrismaSeT G wall-mounted duct Multi9 NG125 with fixed toggle 3P 1 direct 4 , 300 mm PrismaSeT G floor-standing duct Multi9 NG125 with fixed toggle 3P 1 direct 4 , 600 mm PrismaSeT G wall-mounted enclosure Multi9 NG125 with fixed toggle 4P 1 direct 5 , 600 mm PrismaSeT G floor-standing enclosure Multi9 NG125 with fixed toggle 4P 1 direct 5 , 600 mm PrismaSeT G wall-mounted enclosure Multi9 NG125 with fixed toggle 3P 1 direct 5 , 600 mm PrismaSeT G floor-standing enclosure Multi9 NG125 with fixed toggle 3P 1 direct 5 , 300 mm PrismaSeT G wall-mounted duct Acti 9 iC120 with fixed toggle 4P 1 direct 4 , 300 mm PrismaSeT G floor-standing duct Acti 9 iC120 with fixed toggle 4P 1 direct 4 , 300 mm PrismaSeT G wall-mounted duct Acti 9 iC120 with fixed toggle 3P 1 direct 4 , 300 mm PrismaSeT G floor-standing duct Acti 9 iC120 with fixed toggle 3P 1 direct 4 , 600 mm PrismaSeT G wall-mounted enclosure Acti 9 iC120 with fixed toggle 4P 1 direct 5 , 600 mm PrismaSeT G floor-standing enclosure Acti 9 iC120 with fixed toggle 4P 1 direct 5 , 600 mm PrismaSeT G wall-mounted enclosure Acti 9 iC120 with fixed toggle 3P 1 direct 5 , 600 mm PrismaSeT G floor-standing enclosure Acti 9 iC120 with fixed toggle 3P 1 direct 5 , 300 mm PrismaSeT G wall-mounted duct Acti 9 C120 with fixed toggle 4P 1 direct 4 , 300 mm PrismaSeT G floor-standing duct Acti 9 C120 with fixed toggle 4P 1 direct 4 , 300 mm PrismaSeT G wall-mounted duct Acti 9 C120 with fixed toggle 3P 1 direct 4 , 300 mm PrismaSeT G floor-standing duct Acti 9 C120 with fixed toggle 3P 1 direct 4 , 600 mm PrismaSeT G wall-mounted enclosure Acti 9 C120 with fixed toggle 4P 1 direct 5 , 600 mm PrismaSeT G floor-standing enclosure Acti 9 C120 with fixed toggle 4P 1 direct 5 , 600 mm PrismaSeT G wall-mounted enclosure Acti 9 C120 with fixed toggle 3P 1 direct 5 , 600 mm PrismaSeT G floor-standing enclosure Acti 9 C120 with fixed toggle 3P 1 direct 5 , 300 mm PrismaSeT G wall-mounted duct ComPact NG160 NA without fixed toggle 4P 1 direct 5 , 300 mm PrismaSeT G floor-standing duct ComPact NG160 NA without fixed toggle 4P 1 direct 5 , 300 mm PrismaSeT G wall-mounted duct ComPact NG160 NA without fixed toggle 3P 1 direct 5 , 300 mm PrismaSeT G floor-standing duct ComPact NG160 NA without fixed toggle 3P 1 direct 5 , 600 mm PrismaSeT G wall-mounted enclosure ComPact NG160 NA without fixed toggle 4P 1 direct 5 , 600 mm PrismaSeT G floor-standing enclosure ComPact NG160 NA without fixed toggle 4P 1 direct 5 , 600 mm PrismaSeT G wall-mounted enclosure ComPact NG160 NA without fixed toggle 3P 1 direct 5 , 600 mm PrismaSeT G floor-standing enclosure ComPact NG160 NA without fixed toggle 3P 1 direct 5 , 300 mm PrismaSeT G wall-mounted duct ComPact NG160 without fixed toggle 4P 1 direct 5 , 300 mm PrismaSeT G floor-standing duct ComPact NG160 without fixed toggle 4P 1 direct 5 , 300 mm PrismaSeT G wall-mounted duct ComPact NG160 without fixed toggle 3P 1 direct 5 , 300 mm PrismaSeT G floor-standing duct ComPact NG160 without fixed toggle 3P 1 direct 5 , 600 mm PrismaSeT G wall-mounted enclosure ComPact NG160 without fixed toggle 4P 1 direct 5 , 600 mm PrismaSeT G floor-standing enclosure ComPact NG160 without fixed toggle 4P 1 direct 5 , 600 mm PrismaSeT G wall-mounted enclosure ComPact NG160 without fixed toggle 3P 1 direct 5 , 600 mm PrismaSeT G floor-standing enclosure ComPact NG160 without fixed toggle 3P 1 direct 5 , 300 mm PrismaSeT G wall-mounted duct Multi9 NG125 NA fixed toggle 4P 1 direct 4 , 300 mm PrismaSeT G floor-standing duct Multi9 NG125 NA fixed toggle 4P 1 direct 4 , 300 mm PrismaSeT G wall-mounted duct Multi9 NG125 NA fixed toggle 3P 1 direct 4 , 300 mm PrismaSeT G floor-standing duct Multi9 NG125 NA fixed toggle 3P 1 direct 4 , 600 mm PrismaSeT G wall-mounted enclosure Multi9 NG125 NA fixed toggle 4P 1 direct 5 , 600 mm PrismaSeT G floor-standing enclosure Multi9 NG125 NA fixed toggle 4P 1 direct 5 , 600 mm PrismaSeT G wall-mounted enclosure Multi9 NG125 NA fixed toggle 3P 1 direct 5 , 600 mm PrismaSeT G floor-standing enclosure Multi9 NG125 NA fixed toggle 3P 1 direct 5 , 300 mm PrismaSeT G wall-mounted duct Multi9 NG125 without fixed toggle 4P 1 direct 4 , 300 mm PrismaSeT G floor-standing duct Multi9 NG125 without fixed toggle 4P 1 direct 4 , 300 mm PrismaSeT G wall-mounted duct Multi9 NG125 without fixed toggle 3P 1 direct 4 , 300 mm PrismaSeT G floor-standing duct Multi9 NG125 without fixed toggle 3P 1 direct 4 , 600 mm PrismaSeT G wall-mounted enclosure Multi9 NG125 without fixed toggle 4P 1 direct 5 , 600 mm PrismaSeT G floor-standing enclosure Multi9 NG125 without fixed toggle 4P 1 direct 5 , 600 mm PrismaSeT G wall-mounted enclosure Multi9 NG125 without fixed toggle 3P 1 direct 5 , 600 mm PrismaSeT G floor-standing enclosure Multi9 NG125 without fixed toggle 3P 1 direct 5 , 300 mm PrismaSeT G wall-mounted duct ComPact INS63 fixed direct front rotary handle vertical 4P 1 direct 4 , 300 mm PrismaSeT G floor-standing duct ComPact INS63 fixed direct front rotary handle vertical 4P 1 direct 4 , 300 mm PrismaSeT G wall-mounted duct ComPact INS63 fixed direct front rotary handle vertical 3P 1 direct 4 , 300 mm PrismaSeT G floor-standing duct ComPact INS63 fixed direct front rotary handle vertical 3P 1 direct 4 , 600 mm PrismaSeT G wall-mounted enclosure ComPact INS63 fixed direct front rotary handle vertical 4P 1 direct 4 , 600 mm PrismaSeT G floor-standing enclosure ComPact INS63 fixed direct front rotary handle vertical 4P 1 direct 4 , 600 mm PrismaSeT G wall-mounted enclosure ComPact INS63 fixed direct front rotary handle vertical 3P 1 direct 4 , 600 mm PrismaSeT G floor-standing enclosure ComPact INS63 fixed direct front rotary handle vertical 3P 1 direct 4 , 300 mm PrismaSeT G wall-mounted duct ComPact INS40 fixed direct front rotary handle vertical 4P 1 direct 4 , 300 mm PrismaSeT G floor-standing duct ComPact INS40 fixed direct front rotary handle vertical 4P 1 direct 4 , 300 mm PrismaSeT G wall-mounted duct ComPact INS40 fixed direct front rotary handle vertical 3P 1 direct 4 , 300 mm PrismaSeT G floor-standing duct ComPact INS40 fixed direct front rotary handle vertical 3P 1 direct 4 , 600 mm PrismaSeT G wall-mounted enclosure ComPact INS40 fixed direct front rotary handle vertical 4P 1 direct 4 , 600 mm PrismaSeT G floor-standing enclosure ComPact INS40 fixed direct front rotary handle vertical 4P 1 direct 4 , 600 mm PrismaSeT G wall-mounted enclosure ComPact INS40 fixed direct front rotary handle vertical 3P 1 direct 4 , 600 mm PrismaSeT G floor-standing enclosure ComPact INS40 fixed direct front rotary handle vertical 3P 1 direct 4 , 300 mm PrismaSeT G wall-mounted duct ComPact INS160 fixed direct front rotary handle vertical 4P 1 direct 5 , 300 mm PrismaSeT G floor-standing duct ComPact INS160 fixed direct front rotary handle vertical 4P 1 direct 5 , 300 mm PrismaSeT G wall-mounted duct ComPact INS160 fixed direct front rotary handle vertical 3P 1 direct 5 , 300 mm PrismaSeT G floor-standing duct ComPact INS160 fixed direct front rotary handle vertical 3P 1 direct 5 , 300 mm PrismaSeT G wall-mounted duct ComPact INS160 fixed direct front rotary handle vertical 4P 1 direct 4 , 300 mm PrismaSeT G floor-standing duct ComPact INS160 fixed direct front rotary handle vertical 4P 1 direct 4 , 300 mm PrismaSeT G wall-mounted duct ComPact INS160 fixed direct front rotary handle vertical 3P 1 direct 4 , 300 mm PrismaSeT G floor-standing duct ComPact INS160 fixed direct front rotary handle vertical 3P 1 direct 4 , 600 mm PrismaSeT G wall-mounted enclosure ComPact INS160 fixed direct front rotary handle vertical 4P 1 direct 5 , 600 mm PrismaSeT G floor-standing enclosure ComPact INS160 fixed direct front rotary handle vertical 4P 1 direct 5 , 600 mm PrismaSeT G wall-mounted enclosure ComPact INS160 fixed direct front rotary handle vertical 3P 1 direct 5 , 600 mm PrismaSeT G floor-standing enclosure ComPact INS160 fixed direct front rotary handle vertical 3P 1 direct 5 , 600 mm PrismaSeT G wall-mounted enclosure ComPact INS160 fixed direct front rotary handle vertical 4P 1 direct 4 , 600 mm PrismaSeT G floor-standing enclosure ComPact INS160 fixed direct front rotary handle vertical 4P 1 direct 4 , 600 mm PrismaSeT G wall-mounted enclosure ComPact INS160 fixed direct front rotary handle vertical 3P 1 direct 4 , 600 mm PrismaSeT G floor-standing enclosure ComPact INS160 fixed direct front rotary handle vertical 3P 1 direct 4 , 300 mm PrismaSeT G wall-mounted duct ComPact INS125 fixed direct front rotary handle vertical 4P 1 direct 5 , 300 mm PrismaSeT G floor-standing duct ComPact INS125 fixed direct front rotary handle vertical 4P 1 direct 5 , 300 mm PrismaSeT G wall-mounted duct ComPact INS125 fixed direct front rotary handle vertical 3P 1 direct 5 , 300 mm PrismaSeT G floor-standing duct ComPact INS125 fixed direct front rotary handle vertical 3P 1 direct 5 , 300 mm PrismaSeT G wall-mounted duct ComPact INS125 fixed direct front rotary handle vertical 4P 1 direct 4 , 300 mm PrismaSeT G floor-standing duct ComPact INS125 fixed direct front rotary handle vertical 4P 1 direct 4 , 300 mm PrismaSeT G wall-mounted duct ComPact INS125 fixed direct front rotary handle vertical 3P 1 direct 4 , 300 mm PrismaSeT G floor-standing duct ComPact INS125 fixed direct front rotary handle vertical 3P 1 direct 4 , 600 mm PrismaSeT G wall-mounted enclosure ComPact INS125 fixed direct front rotary handle vertical 4P 1 direct 5 , 600 mm PrismaSeT G floor-standing enclosure ComPact INS125 fixed direct front rotary handle vertical 4P 1 direct 5 , 600 mm PrismaSeT G wall-mounted enclosure ComPact INS125 fixed direct front rotary handle vertical 3P 1 direct 5 , 600 mm PrismaSeT G floor-standing enclosure ComPact INS125 fixed direct front rotary handle vertical 3P 1 direct 5 , 600 mm PrismaSeT G wall-mounted enclosure ComPact INS125 fixed direct front rotary handle vertical 4P 1 direct 4 , 600 mm PrismaSeT G floor-standing enclosure ComPact INS125 fixed direct front rotary handle vertical 4P 1 direct 4 , 600 mm PrismaSeT G wall-mounted enclosure ComPact INS125 fixed direct front rotary handle vertical 3P 1 direct 4 , 600 mm PrismaSeT G floor-standing enclosure ComPact INS125 fixed direct front rotary handle vertical 3P 1 direct 4 , 300 mm PrismaSeT G wall-mounted duct ComPact INS100 fixed direct front rotary handle vertical 4P 1 direct 5 , 300 mm PrismaSeT G floor-standing duct ComPact INS100 fixed direct front rotary handle vertical 4P 1 direct 5 , 300 mm PrismaSeT G wall-mounted duct ComPact INS100 fixed direct front rotary handle vertical 3P 1 direct 5 , 300 mm PrismaSeT G floor-standing duct ComPact INS100 fixed direct front rotary handle vertical 3P 1 direct 5 , 300 mm PrismaSeT G wall-mounted duct ComPact INS100 fixed direct front rotary handle vertical 4P 1 direct 4 , 300 mm PrismaSeT G floor-standing duct ComPact INS100 fixed direct front rotary handle vertical 4P 1 direct 4 , 300 mm PrismaSeT G wall-mounted duct ComPact INS100 fixed direct front rotary handle vertical 3P 1 direct 4 , 300 mm PrismaSeT G floor-standing duct ComPact INS100 fixed direct front rotary handle vertical 3P 1 direct 4 , 600 mm PrismaSeT G wall-mounted enclosure ComPact INS100 fixed direct front rotary handle vertical 4P 1 direct 5 , 600 mm PrismaSeT G floor-standing enclosure ComPact INS100 fixed direct front rotary handle vertical 4P 1 direct 5 , 600 mm PrismaSeT G wall-mounted enclosure ComPact INS100 fixed direct front rotary handle vertical 3P 1 direct 5 , 600 mm PrismaSeT G floor-standing enclosure ComPact INS100 fixed direct front rotary handle vertical 3P 1 direct 5 , 600 mm PrismaSeT G wall-mounted enclosure ComPact INS100 fixed direct front rotary handle vertical 4P 1 direct 4 , 600 mm PrismaSeT G floor-standing enclosure ComPact INS100 fixed direct front rotary handle vertical 4P 1 direct 4 , 600 mm PrismaSeT G wall-mounted enclosure ComPact INS100 fixed direct front rotary handle vertical 3P 1 direct 4 , 600 mm PrismaSeT G floor-standing enclosure ComPact INS100 fixed direct front rotary handle vertical 3P 1 direct 4 , 300 mm PrismaSeT G wall-mounted duct Acti 9 iC120 without fixed toggle 4P 1 direct 4 , 300 mm PrismaSeT G floor-standing duct Acti 9 iC120 without fixed toggle 4P 1 direct 4 , 300 mm PrismaSeT G wall-mounted duct Acti 9 iC120 without fixed toggle 3P 1 direct 4 , 300 mm PrismaSeT G floor-standing duct Acti 9 iC120 without fixed toggle 3P 1 direct 4 , 600 mm PrismaSeT G wall-mounted enclosure Acti 9 iC120 without fixed toggle 4P 1 direct 5 , 600 mm PrismaSeT G floor-standing enclosure Acti 9 iC120 without fixed toggle 4P 1 direct 5 , 600 mm PrismaSeT G wall-mounted enclosure Acti 9 iC120 without fixed toggle 3P 1 direct 5 , 600 mm PrismaSeT G floor-standing enclosure Acti 9 iC120 without fixed toggle 3P 1 direct 5 , 300 mm PrismaSeT G wall-mounted duct Acti 9 C120 without fixed toggle 4P 1 direct 4 , 300 mm PrismaSeT G floor-standing duct Acti 9 C120 without fixed toggle 4P 1 direct 4 , 300 mm PrismaSeT G wall-mounted duct Acti 9 C120 without fixed toggle 3P 1 direct 4 , 300 mm PrismaSeT G floor-standing duct Acti 9 C120 without fixed toggle 3P 1 direct 4 , 600 mm PrismaSeT G wall-mounted enclosure Acti 9 C120 without fixed toggle 4P 1 direct 5 , 600 mm PrismaSeT G floor-standing enclosure Acti 9 C120 without fixed toggle 4P 1 direct 5 , 600 mm PrismaSeT G wall-mounted enclosure Acti 9 C120 without fixed toggle 3P 1 direct 5 , 600 mm PrismaSeT G floor-standing enclosure Acti 9 C120 without fixed toggle 3P 1 direct 5 |
| [Ie] rated operational current | 125 A at 40 °C |
| [Ui] rated insulation voltage | 750 V AC |
| Net weight | 0.5 kg |
| 9 mm pitches | 12 |
| Installed device | ComPact: fixed NSXm with earth leakage protection - control: toggle - vertical installation, ComPact: fixed NSXm without earth leakage protection - control: toggle - vertical installation, ComPact: fixed NG160 NA without earth leakage protection - control: toggle, ComPact: fixed NG160 without earth leakage protection - control: toggle, ComPact: fixed NG160 with earth leakage protection - control: toggle, Multi9: fixed NG125 NA - control: toggle, Multi9: fixed NG125 without earth leakage protection - control: toggle, Multi9: fixed NG125 with earth leakage protection - control: toggle, ComPact: fixed INS160 - control: direct front rotary handle - vertical installation, ComPact: fixed INS125 - control: direct front rotary handle - vertical installation, ComPact: fixed INS100 - control: direct front rotary handle - vertical installation, ComPact: fixed INS63 - control: direct front rotary handle - vertical installation, ComPact: fixed INS40 - control: direct front rotary handle - vertical installation, Acti 9: fixed iC120 without earth leakage protection - control: toggle, Acti 9: fixed iC120 with earth leakage protection - control: toggle, Acti 9: fixed C120 without earth leakage protection - control: toggle, Acti 9: fixed C120 with earth leakage protection - control: toggle |
| Mounting support | DIN rail |
| [Ue] rated operational voltage | 690 V AC |
| Height | 127 mm |
| Connections - terminals | distribution: tunnel type terminal, 1 x 4-25 mm² (rigid) , distribution: tunnel type terminal, 1 x 4-16 mm² (flexible) , distribution: spring terminal, 7 x 1.5-4 mm² (rigid) , distribution: spring terminal, 7 x 1.5-4 mm² (flexible) , distribution: spring terminal, 3 x 2.5-6 mm² (rigid) , distribution: spring terminal, 3 x 2.5-6 mm² (flexible) , distribution: spring terminal, 2 x 4-10 mm² (rigid) , distribution: spring terminal, 2 x 4-10 mm² (flexible) , supply: tunnel type terminal35-35 mm² (flexible) , supply: tunnel type terminal35-35 mm² (rigid) |
| Environment | |
| Resistance to incandescent wire | 960 °C conforming to IEC 60695-2-11 |
| Standards | IEC 61439-2, inside enclosure, IEC 61439-1, inside enclosure, IEC 60947-7-1 |
| Pollution degree | 3 |
| Ambient air temperature for operation | -25-55 °C |
| Product certifications | ASTA |
