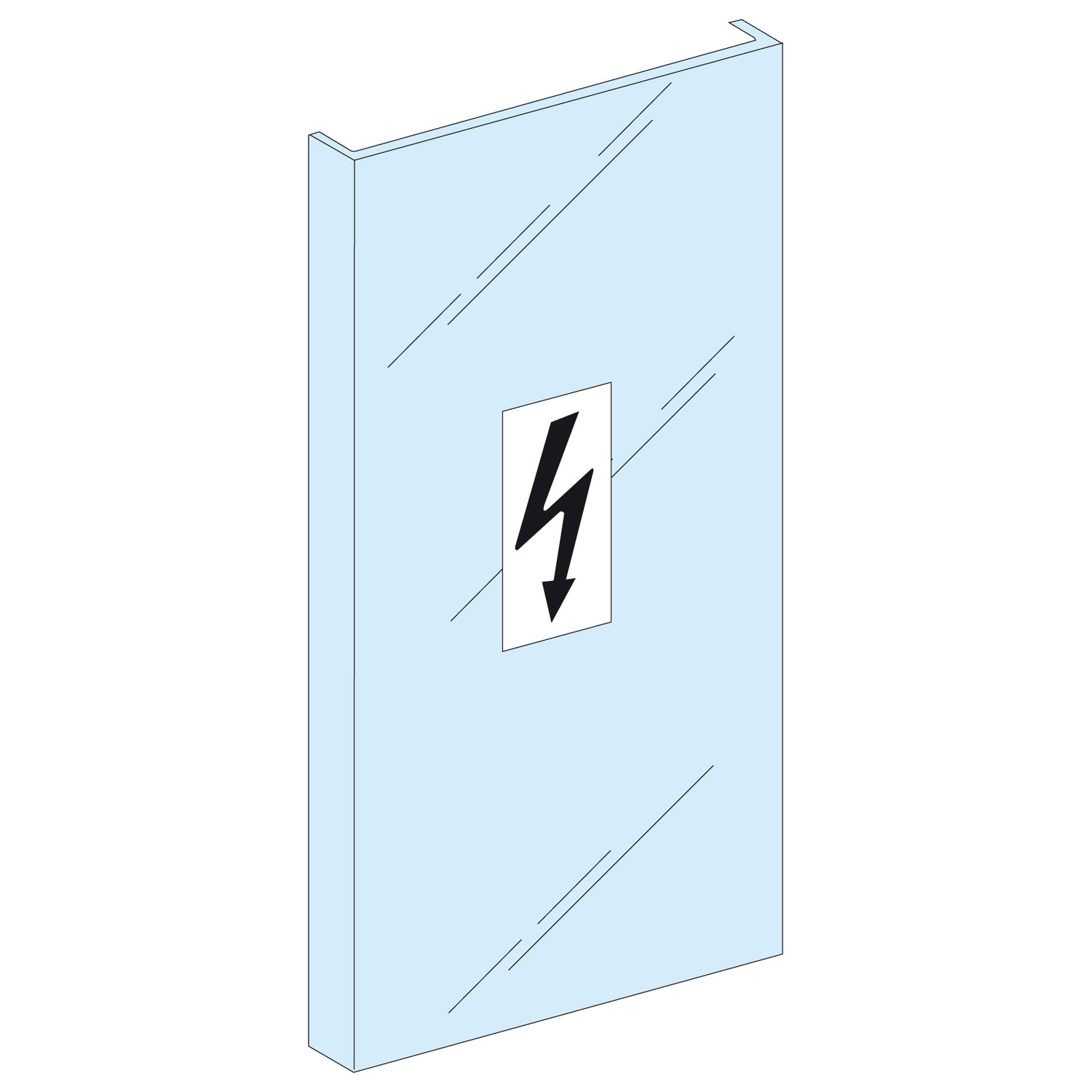

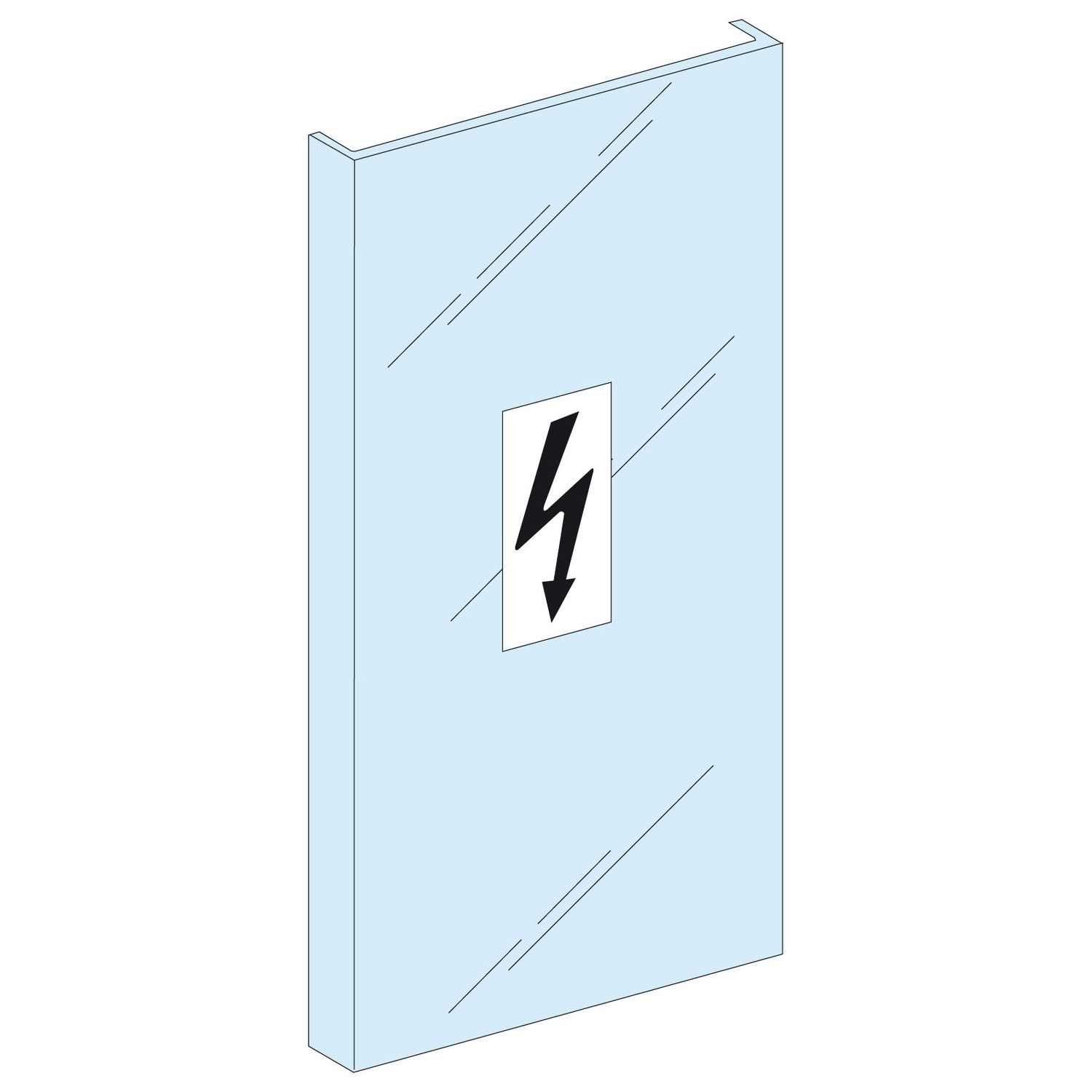

Insulating plate for Linergy BS designed to provide multi-stage busbar protection. Designed for use with PrismaSeT G W300 and PrismaSeT P W400 enclosures. Suitable for ducts.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| IP degree of protection | IPxx B |
| Barrier position | front |
| Range | Linergy |
| Product or component type | insulating plate |
| Accessory / separate part category | insulation accessory |
| Range compatibility | PrismaSeT PrismaSeT P duct, PrismaSeT PrismaSeT G duct, Linergy Linergy BS busbar |
| Range of product | Linergy BS |
| Complementary | |
| Width | 250 mm |
| Colour | transparent |
| Quantity per set | set of 1 |
| [Ie] rated operational current | 630 A |
| Number of vertical modules [50 mm] | 30 |
| Net weight | 0.74 kg |
| Material | plastic |
| Enclosure/cubicle description | duct - width 400 mm, floor-standing duct - width 300 mm, wall-mounted duct - width 300 mm |
| Height | 1500 mm |
| Installed device | multi-stage busbar |
