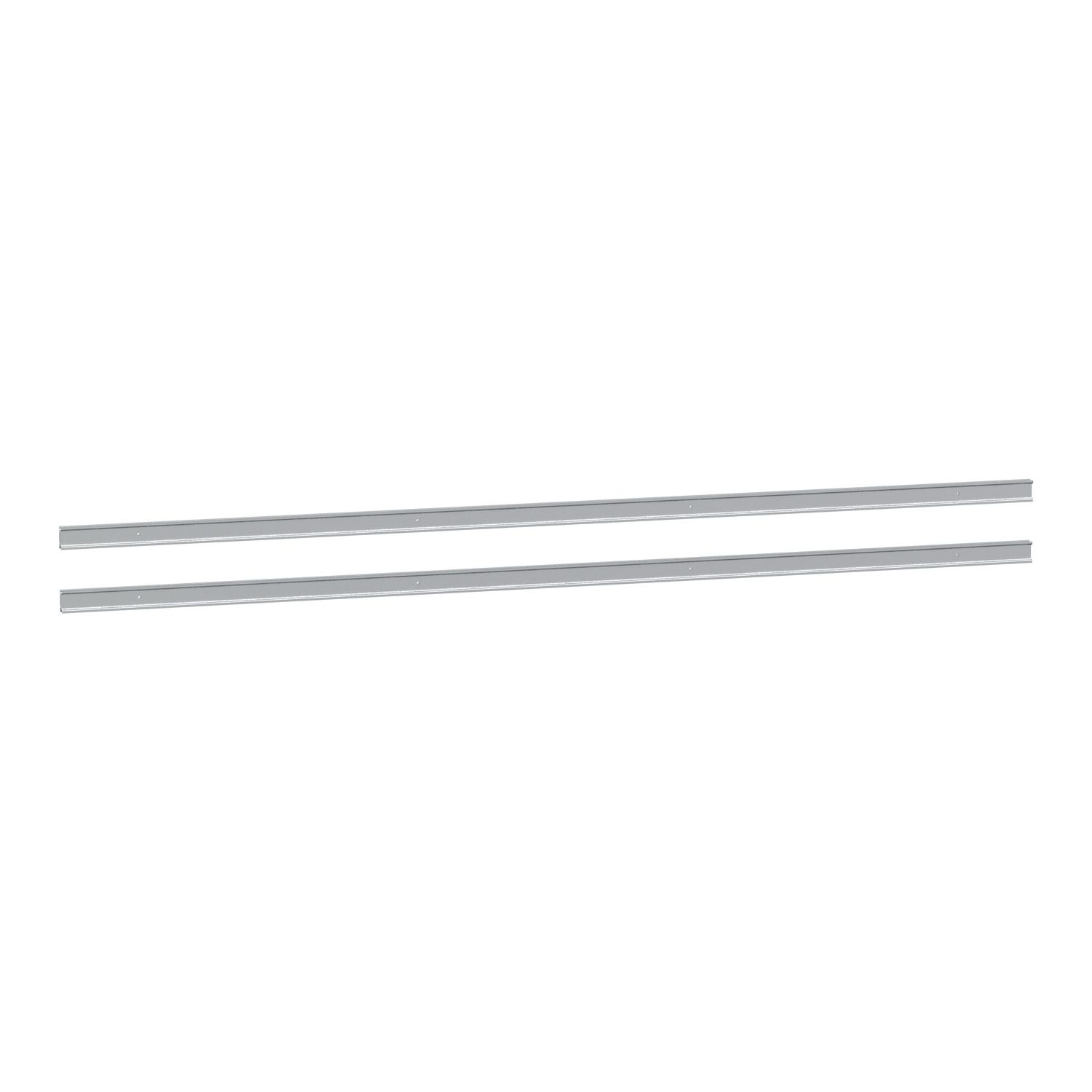

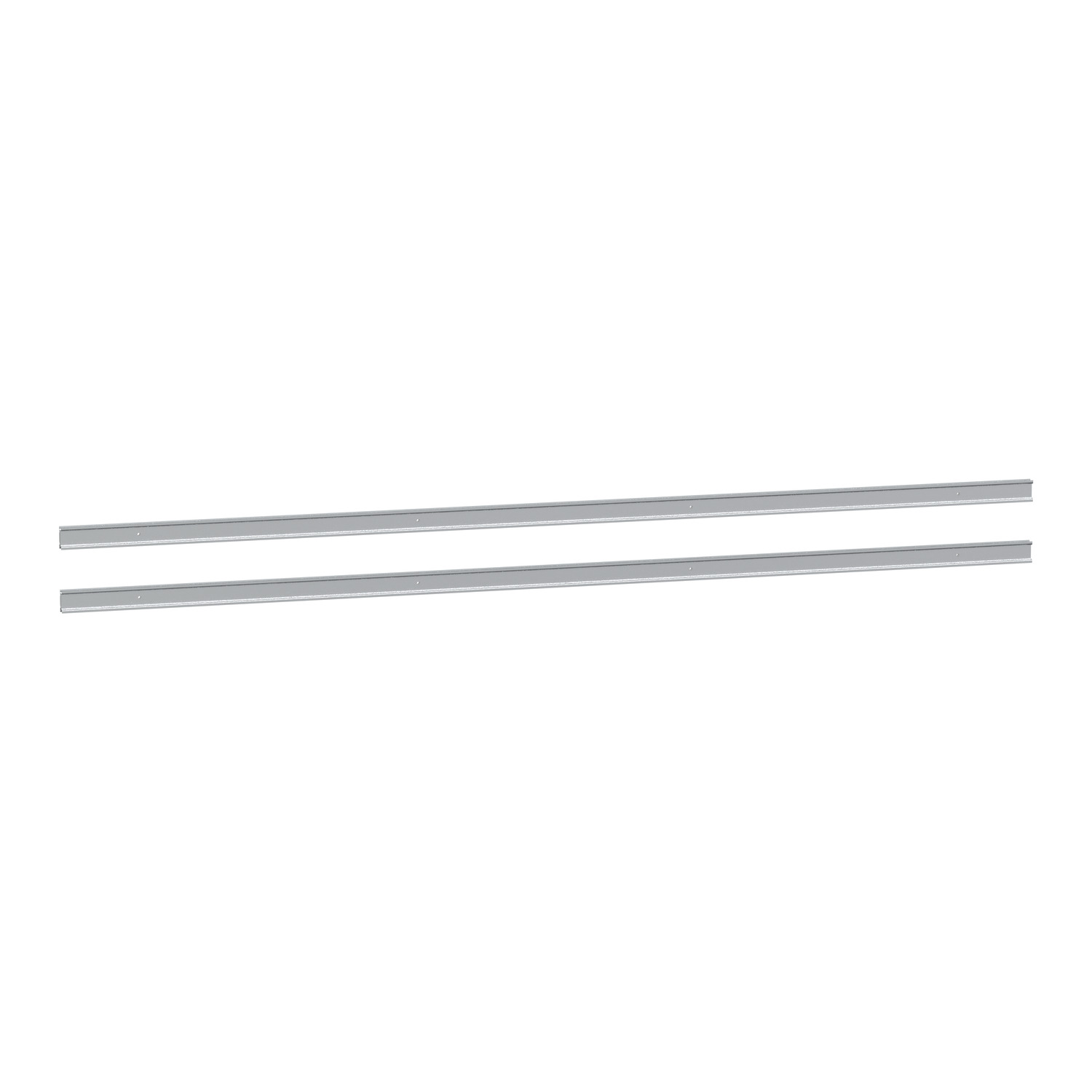

Modular rail for PrismaSeT P and PrismaSeT G Compatible with various modular devices, including circuit breakers, contactors, relays, and more. Compatible with enclosures with a width of 600mm
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Type of rail | modular |
| Range | PrismaSeT |
| Product or component type | rail |
| Accessory / separate part category | installation accessory |
| Installed device | EasyPact: clip-on TVS GZ1E + LC1E09...E32 - control: push-button, EasyPact: clip-on TVS GZ1E - control: push-button, connection: terminal blocks, TeSys: clip-on LC1D09...D95, TeSys: clip-on GV2P + LC1D09...D32 - control: rotary knob, TeSys: clip-on GV2P - control: rotary knob, TeSys: clip-on GV2ME + LC1D09...D32 - control: push-button, TeSys: clip-on GV2ME - control: push-button, Multi9: fixed modular device, Acti 9: fixed modular device |
| Range compatibility | PrismaSeT Prisma iPM M, PrismaSeT Prisma iPM L, PrismaSeT PrismaSeT P, PrismaSeT PrismaSeT G |
| Range of product | Prisma iPM, PrismaSeT P, PrismaSeT G |
| Complementary | |
| Depth | 15 mm |
| Width | 1600 mm |
| Colour | natural |
| Quantity per set | set of 2 |
| Enclosure/cubicle width | 600 mm Prisma iPM M cubicle EasyPact TVS GZ1E + LC1E09...E32 clip-on push-button 5 125 mm, 800 mm Prisma iPM M cubicle EasyPact TVS GZ1E + LC1E09...E32 clip-on push-button 5 125 mm, 600 mm Prisma iPM L wall-mounted enclosure EasyPact TVS GZ1E + LC1E09...E32 clip-on push-button 5 125 mm, 600 mm Prisma iPM L floor-standing enclosure EasyPact TVS GZ1E + LC1E09...E32 clip-on push-button 5 125 mm, 600 mm Prisma iPM M cubicle EasyPact TVS GZ1E clip-on push-button 3 75 mm, 800 mm Prisma iPM M cubicle EasyPact TVS GZ1E clip-on push-button 3 75 mm, 600 mm Prisma iPM L wall-mounted enclosure EasyPact TVS GZ1E clip-on push-button 3 75 mm, 600 mm Prisma iPM L floor-standing enclosure EasyPact TVS GZ1E clip-on push-button 3 75 mm, 650 mm 400 mm PrismaSeT P cubicle connection terminal blocks, 600 mm PrismaSeT G wall-mounted enclosure connection terminal blocks, 600 mm PrismaSeT G floor-standing enclosure connection terminal blocks, 650 mm 400 mm PrismaSeT P cubicle Multi9 modular device fixed 64 direct 12 149.5 mm, 650 mm 400 mm PrismaSeT P cubicle Multi9 modular device fixed 48 direct 9 125 mm, 600 mm Prisma iPM M cubicle Multi9 modular device fixed 64 direct 12 300 mm, 600 mm Prisma iPM M cubicle Multi9 modular device fixed 48 direct 9 225 mm, 800 mm Prisma iPM M cubicle Multi9 modular device fixed 64 direct 12 300 mm, 800 mm Prisma iPM M cubicle Multi9 modular device fixed 48 direct 9 225 mm, 600 mm Prisma iPM L wall-mounted enclosure Multi9 modular device fixed 64 direct 12 300 mm, 600 mm Prisma iPM L floor-standing enclosure Multi9 modular device fixed 64 direct 12 300 mm, 600 mm Prisma iPM L wall-mounted enclosure Multi9 modular device fixed 48 direct 9 225 mm, 600 mm Prisma iPM L floor-standing enclosure Multi9 modular device fixed 48 direct 9 225 mm, 600 mm PrismaSeT G wall-mounted enclosure Multi9 modular device fixed 64 direct 12 149.5 mm, 600 mm PrismaSeT G floor-standing enclosure Multi9 modular device fixed 64 direct 12 149.5 mm, 600 mm PrismaSeT G wall-mounted enclosure Multi9 modular device fixed 48 direct 9 125 mm, 600 mm PrismaSeT G floor-standing enclosure Multi9 modular device fixed 48 direct 9 125 mm, 650 mm 400 mm PrismaSeT P cubicle Acti 9 modular device fixed 64 direct 12 149.5 mm, 650 mm 400 mm PrismaSeT P cubicle Acti 9 modular device fixed 48 direct 9 125 mm, 600 mm PrismaSeT G wall-mounted enclosure Acti 9 modular device fixed 64 direct 12 149.5 mm, 600 mm PrismaSeT G floor-standing enclosure Acti 9 modular device fixed 64 direct 12 149.5 mm, 600 mm PrismaSeT G wall-mounted enclosure Acti 9 modular device fixed 48 direct 9 125 mm, 600 mm PrismaSeT G floor-standing enclosure Acti 9 modular device fixed 48 direct 9 125 mm, 600 mm Prisma iPM M cubicle TeSys LC1D09...D95 clip-on 4 100 mm, 800 mm Prisma iPM M cubicle TeSys LC1D09...D95 clip-on 4 100 mm, 600 mm Prisma iPM L wall-mounted enclosure TeSys LC1D09...D95 clip-on 4 100 mm, 600 mm Prisma iPM L floor-standing enclosure TeSys LC1D09...D95 clip-on 4 100 mm, 600 mm Prisma iPM M cubicle TeSys GV2P + LC1D09...D32 clip-on rotary knob 5 125 mm, 800 mm Prisma iPM M cubicle TeSys GV2P + LC1D09...D32 clip-on rotary knob 5 125 mm, 600 mm Prisma iPM L wall-mounted enclosure TeSys GV2P + LC1D09...D32 clip-on rotary knob 5 125 mm, 600 mm Prisma iPM L floor-standing enclosure TeSys GV2P + LC1D09...D32 clip-on rotary knob 5 125 mm, 600 mm Prisma iPM M cubicle TeSys GV2P clip-on rotary knob 3 75 mm, 800 mm Prisma iPM M cubicle TeSys GV2P clip-on rotary knob 3 75 mm, 600 mm Prisma iPM L wall-mounted enclosure TeSys GV2P clip-on rotary knob 3 75 mm, 600 mm Prisma iPM L floor-standing enclosure TeSys GV2P clip-on rotary knob 3 75 mm, 600 mm Prisma iPM M cubicle TeSys GV2ME + LC1D09...D32 clip-on push-button 5 125 mm, 800 mm Prisma iPM M cubicle TeSys GV2ME + LC1D09...D32 clip-on push-button 5 125 mm, 600 mm Prisma iPM L wall-mounted enclosure TeSys GV2ME + LC1D09...D32 clip-on push-button 5 125 mm, 600 mm Prisma iPM L floor-standing enclosure TeSys GV2ME + LC1D09...D32 clip-on push-button 5 125 mm, 600 mm Prisma iPM M cubicle TeSys GV2ME clip-on push-button 3 75 mm, 800 mm Prisma iPM M cubicle TeSys GV2ME clip-on push-button 3 75 mm, 600 mm Prisma iPM L wall-mounted enclosure TeSys GV2ME clip-on push-button 3 75 mm, 600 mm Prisma iPM L floor-standing enclosure TeSys GV2ME clip-on push-button 3 75 mm |
| Net weight | 1.3 kg |
| Material | metal |
| Number of vertical modules [50 mm] | 5 module(s): TVS GZ1E + LC1E09...E32 in 600 mm Widecubicle, 5 module(s): TVS GZ1E + LC1E09...E32 in 800 mm Widecubicle, 5 module(s): TVS GZ1E + LC1E09...E32 in 600 mm Widewall-mounted enclosure, 5 module(s): TVS GZ1E + LC1E09...E32 in 600 mm Widefloor-standing enclosure, 3 module(s): TVS GZ1E in 600 mm Widecubicle, 3 module(s): TVS GZ1E in 800 mm Widecubicle, 3 module(s): TVS GZ1E in 600 mm Widewall-mounted enclosure, 3 module(s): TVS GZ1E in 600 mm Widefloor-standing enclosure, 12 module(s): modular device, direct in 600 mm Widecubicle, 9 module(s): modular device, direct in 600 mm Widecubicle, 12 module(s): modular device, direct in 800 mm Widecubicle, 9 module(s): modular device, direct in 800 mm Widecubicle, 12 module(s): modular device, direct in 650 mm Widecubicle, 9 module(s): modular device, direct in 650 mm Widecubicle, 12 module(s): modular device, direct in 600 mm Widewall-mounted enclosure, 12 module(s): modular device, direct in 600 mm Widefloor-standing enclosure, 9 module(s): modular device, direct in 600 mm Widewall-mounted enclosure, 9 module(s): modular device, direct in 600 mm Widefloor-standing enclosure, 4 module(s): LC1D09...D95 in 600 mm Widecubicle, 4 module(s): LC1D09...D95 in 800 mm Widecubicle, 4 module(s): LC1D09...D95 in 600 mm Widewall-mounted enclosure, 4 module(s): LC1D09...D95 in 600 mm Widefloor-standing enclosure, 5 module(s): GV2P + LC1D09...D32 in 600 mm Widecubicle, 5 module(s): GV2P + LC1D09...D32 in 800 mm Widecubicle, 5 module(s): GV2P + LC1D09...D32 in 600 mm Widewall-mounted enclosure, 5 module(s): GV2P + LC1D09...D32 in 600 mm Widefloor-standing enclosure, 3 module(s): GV2P in 600 mm Widecubicle, 3 module(s): GV2P in 800 mm Widecubicle, 3 module(s): GV2P in 600 mm Widewall-mounted enclosure, 3 module(s): GV2P in 600 mm Widefloor-standing enclosure, 5 module(s): GV2ME + LC1D09...D32 in 600 mm Widecubicle, 5 module(s): GV2ME + LC1D09...D32 in 800 mm Widecubicle, 5 module(s): GV2ME + LC1D09...D32 in 600 mm Widewall-mounted enclosure, 5 module(s): GV2ME + LC1D09...D32 in 600 mm Widefloor-standing enclosure, 3 module(s): GV2ME in 600 mm Widecubicle, 3 module(s): GV2ME in 800 mm Widecubicle, 3 module(s): GV2ME in 600 mm Widewall-mounted enclosure, 3 module(s): GV2ME in 600 mm Widefloor-standing enclosure |
| Offer type | standard |
| Enclosure/cubicle description | cubicle - width 600 mm, cubicle - width 800 mm, cubicle - width 650 mm depth 400 mm, wall-mounted enclosure - width 600 mm, floor-standing enclosure - width 600 mm |
| Height | 35 mm |
| Environment | |
| Standards | IEC 61439-2, IEC 61439-1 |
| Product certifications | ASTA |
