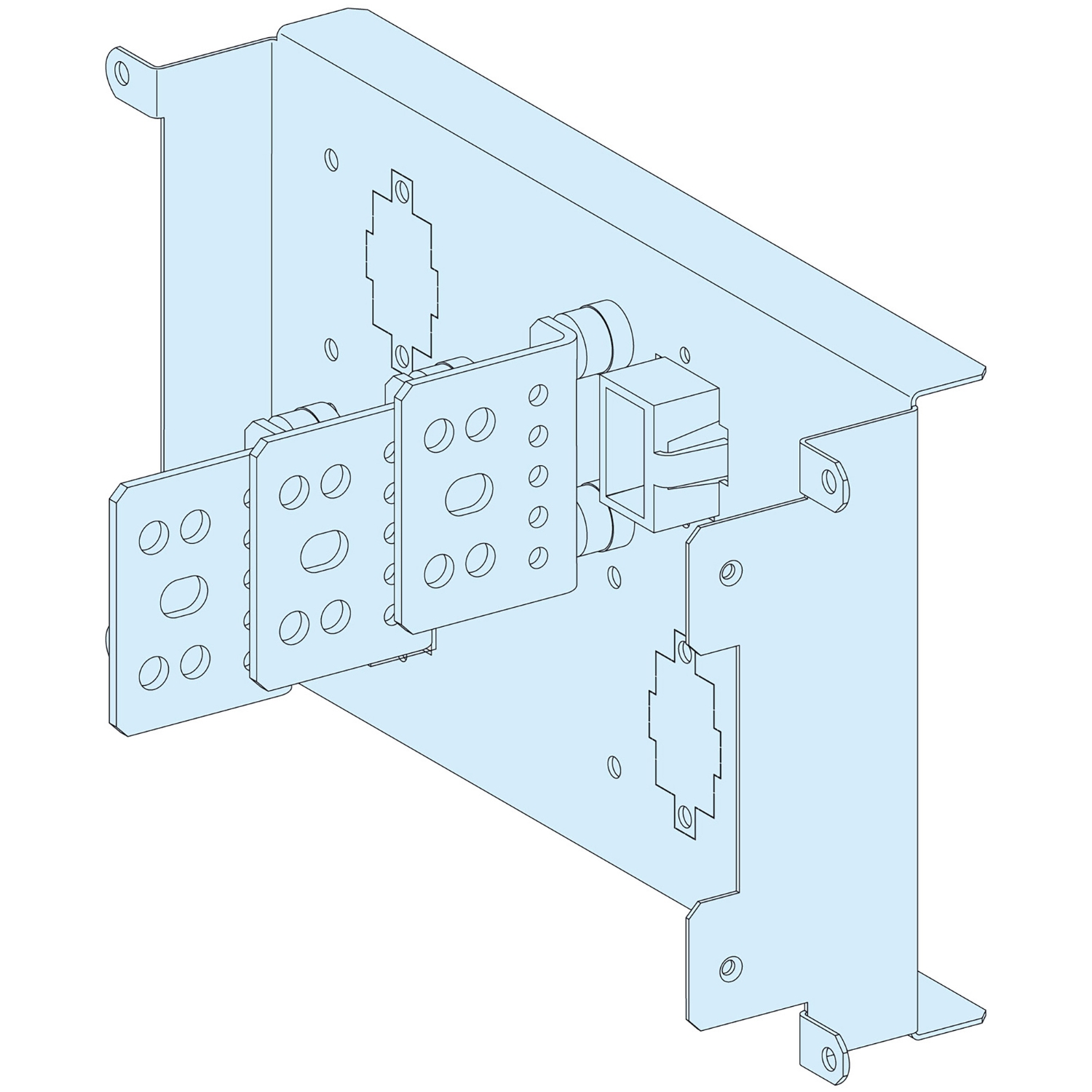

Universal connection specifically designed for use within PrismaSeT P power distribution systems. 3-pole design Ensures simultaneous connection and disconnection of all three phases. Current rating 630A supports high-current applications, accommodating demanding electrical loads.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Standards | IEC 61439-1, inside enclosure, IEC 61439-2, inside enclosure |
| Range | PrismaSeT |
| Product or component type | connection transfer assembly |
| Accessory / separate part category | current distribution accessory |
| Range compatibility | PrismaSeT PrismaSeT P enclosure |
| Range of product | PrismaSeT P |
| Product certifications | ASTA |
| Complementary | |
| Width | 350 mm |
| Quantity per set | set of 1 |
| Poles description | 3P |
| Enclosure/cubicle width | 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 with drawout motor mechanism horizontal 3P 1 direct 6 , 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 with drawout direct front rotary handle horizontal 3P 1 direct 6 , 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 with drawout toggle horizontal 3P 1 direct 6 , 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 with plug-in motor mechanism horizontal 3P 1 direct 4 , 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 with plug-in direct front rotary handle horizontal 3P 1 direct 4 , 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 with fixed motor mechanism horizontal 3P 1 direct 4 , 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 with fixed direct front rotary handle horizontal 3P 1 direct 4 , 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 with plug-in toggle horizontal 3P 1 direct 3 , 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 with drawout motor mechanism horizontal 3P 1 direct 6 , 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 with drawout direct front rotary handle horizontal 3P 1 direct 6 , 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 with drawout toggle horizontal 3P 1 direct 6 , 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 with plug-in motor mechanism horizontal 3P 1 direct 4 , 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 with plug-in direct front rotary handle horizontal 3P 1 direct 4 , 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 with fixed motor mechanism horizontal 3P 1 direct 4 , 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 with fixed direct front rotary handle horizontal 3P 1 direct 4 , 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 with plug-in toggle horizontal 3P 1 direct 3 , 650 mm 400 mm PrismaSeT P cubicle EasyPact CVS630 with fixed direct front rotary handle horizontal 3P 1 direct 4 , 650 mm 400 mm PrismaSeT P cubicle EasyPact CVS630 with fixed toggle horizontal 3P 1 direct 4 , 650 mm 400 mm PrismaSeT P cubicle EasyPact CVS400 with fixed direct front rotary handle horizontal 3P 1 direct 4 , 650 mm 400 mm PrismaSeT P cubicle EasyPact CVS400 with fixed toggle horizontal 3P 1 direct 4 , 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 without drawout motor mechanism horizontal 3P 1 direct 6 , 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 without drawout direct front rotary handle horizontal 3P 1 direct 6 , 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 without drawout toggle horizontal 3P 1 direct 6 , 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 without plug-in motor mechanism horizontal 3P 1 direct 4 , 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 without plug-in direct front rotary handle horizontal 3P 1 direct 4 , 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 without fixed motor mechanism horizontal 3P 1 direct 4 , 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 without fixed direct front rotary handle horizontal 3P 1 direct 4 , 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 without plug-in toggle horizontal 3P 1 direct 3 , 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 without drawout motor mechanism horizontal 3P 1 direct 6 , 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 without drawout direct front rotary handle horizontal 3P 1 direct 6 , 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 without drawout toggle horizontal 3P 1 direct 6 , 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 without plug-in motor mechanism horizontal 3P 1 direct 4 , 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 without plug-in direct front rotary handle horizontal 3P 1 direct 4 , 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 without fixed motor mechanism horizontal 3P 1 direct 4 , 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 without fixed direct front rotary handle horizontal 3P 1 direct 4 , 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 without plug-in toggle horizontal 3P 1 direct 3 , 650 mm 400 mm PrismaSeT P cubicle EasyPact CVS630 without fixed direct front rotary handle horizontal 3P 1 direct 4 , 650 mm 400 mm PrismaSeT P cubicle EasyPact CVS630 without fixed toggle horizontal 3P 1 direct 4 , 650 mm 400 mm PrismaSeT P cubicle EasyPact CVS400 without fixed direct front rotary handle horizontal 3P 1 direct 4 , 650 mm 400 mm PrismaSeT P cubicle EasyPact CVS400 without fixed toggle horizontal 3P 1 direct 4 , 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 with fixed toggle horizontal 3P 1 direct 4 , 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 with fixed toggle horizontal 3P 1 direct 4 |
| [Ie] rated operational current | 630 A |
| Busbar cross section | 32 x 6 mm |
| Net weight | 3.04 kg |
| Installed device | ComPact: drawout NSX630 with earth leakage protection - control: motor mechanism horizontal installation, ComPact: drawout NSX630 with earth leakage protection - control: direct front rotary handle horizontal installation, ComPact: plug-in NSX630 with earth leakage protection - control: motor mechanism horizontal installation, ComPact: plug-in NSX630 with earth leakage protection - control: direct front rotary handle horizontal installation, ComPact: fixed NSX630 with earth leakage protection - control: motor mechanism horizontal installation, ComPact: fixed NSX630 with earth leakage protection - control: direct front rotary handle horizontal installation, ComPact: drawout NSX400 with earth leakage protection - control: motor mechanism horizontal installation, ComPact: drawout NSX400 with earth leakage protection - control: direct front rotary handle horizontal installation, ComPact: plug-in NSX400 with earth leakage protection - control: motor mechanism horizontal installation, ComPact: plug-in NSX400 with earth leakage protection - control: direct front rotary handle horizontal installation, ComPact: fixed NSX400 with earth leakage protection - control: motor mechanism horizontal installation, ComPact: fixed NSX400 with earth leakage protection - control: direct front rotary handle horizontal installation, EasyPact: fixed CVS630 with earth leakage protection - control: direct front rotary handle horizontal installation, EasyPact: fixed CVS630 with earth leakage protection - control: toggle horizontal installation, EasyPact: fixed CVS400 with earth leakage protection - control: direct front rotary handle horizontal installation, EasyPact: fixed CVS400 with earth leakage protection - control: toggle horizontal installation, ComPact: drawout NSX630 without earth leakage protection - control: motor mechanism horizontal installation, ComPact: drawout NSX630 without earth leakage protection - control: direct front rotary handle horizontal installation, ComPact: plug-in NSX630 without earth leakage protection - control: motor mechanism horizontal installation, ComPact: plug-in NSX630 without earth leakage protection - control: direct front rotary handle horizontal installation, ComPact: fixed NSX630 without earth leakage protection - control: motor mechanism horizontal installation, ComPact: fixed NSX630 without earth leakage protection - control: direct front rotary handle horizontal installation, ComPact: drawout NSX400 without earth leakage protection - control: motor mechanism horizontal installation, ComPact: drawout NSX400 without earth leakage protection - control: direct front rotary handle horizontal installation, ComPact: plug-in NSX400 without earth leakage protection - control: motor mechanism horizontal installation, ComPact: plug-in NSX400 without earth leakage protection - control: direct front rotary handle horizontal installation, ComPact: fixed NSX400 without earth leakage protection - control: motor mechanism horizontal installation, ComPact: fixed NSX400 without earth leakage protection - control: direct front rotary handle horizontal installation, EasyPact: fixed CVS630 without earth leakage protection - control: direct front rotary handle horizontal installation, EasyPact: fixed CVS400 without earth leakage protection - control: direct front rotary handle horizontal installation, ComPact: drawout NSX630 with earth leakage protection - control: toggle horizontal installation, ComPact: drawout NSX400 with earth leakage protection - control: toggle horizontal installation, ComPact: plug-in NSX630 with earth leakage protection - control: toggle horizontal installation, ComPact: plug-in NSX400 with earth leakage protection - control: toggle horizontal installation, ComPact: drawout NSX630 without earth leakage protection - control: toggle horizontal installation, ComPact: drawout NSX400 without earth leakage protection - control: toggle horizontal installation, ComPact: plug-in NSX630 without earth leakage protection - control: toggle horizontal installation, ComPact: plug-in NSX400 without earth leakage protection - control: toggle horizontal installation, ComPact: fixed NSX630 with earth leakage protection - control: toggle horizontal installation, ComPact: fixed NSX400 with earth leakage protection - control: toggle horizontal installation, EasyPact: fixed CVS630 without earth leakage protection - control: toggle horizontal installation, EasyPact: fixed CVS400 without earth leakage protection - control: toggle horizontal installation |
| Enclosure/cubicle description | cubicle - width 650 mm |
| Height | 200 mm |
| Cubicle-device connection | connection transfer assembly |
