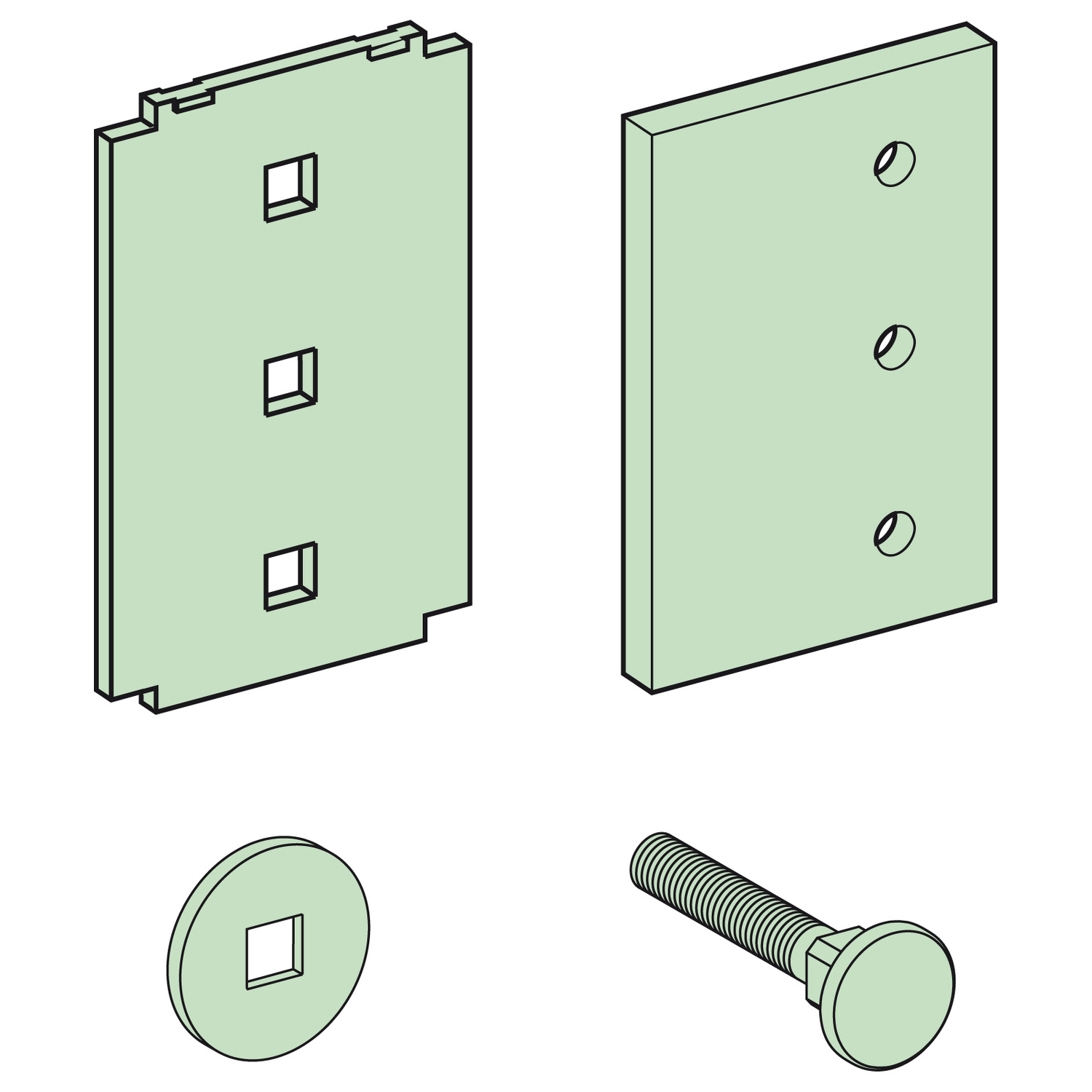

Joint connector designed for use with the Linergy BS busbar system. It is engineered to handle a rated operational current of 4000A and is suitable for horizontal busbar configurations. Suitable for 120mm wide busbars with a thickness of 10mm and with 3P and 4P configurations Designed for cubicle installation with a width of 650mm.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Standards | IEC 60439-2, inside enclosure, IEC 60439-1, inside enclosure |
| Range | Linergy |
| Product name | Linergy BS |
| Product or component type | connection adapter |
| Accessory / separate part category | coupling accessory |
| Range compatibility | PrismaSeT PrismaSeT P enclosure, Linergy Linergy BS busbar |
| Range of product | Linergy |
| Product certifications | ASTA |
| Complementary | |
| Width | 90 mm |
| Quantity per set | set of 1 |
| [Ie] rated operational current | 4000 A |
| Busbar cross section | 120 x 10 mm |
| Net weight | 1.92 kg |
| Height | 125 mm |
