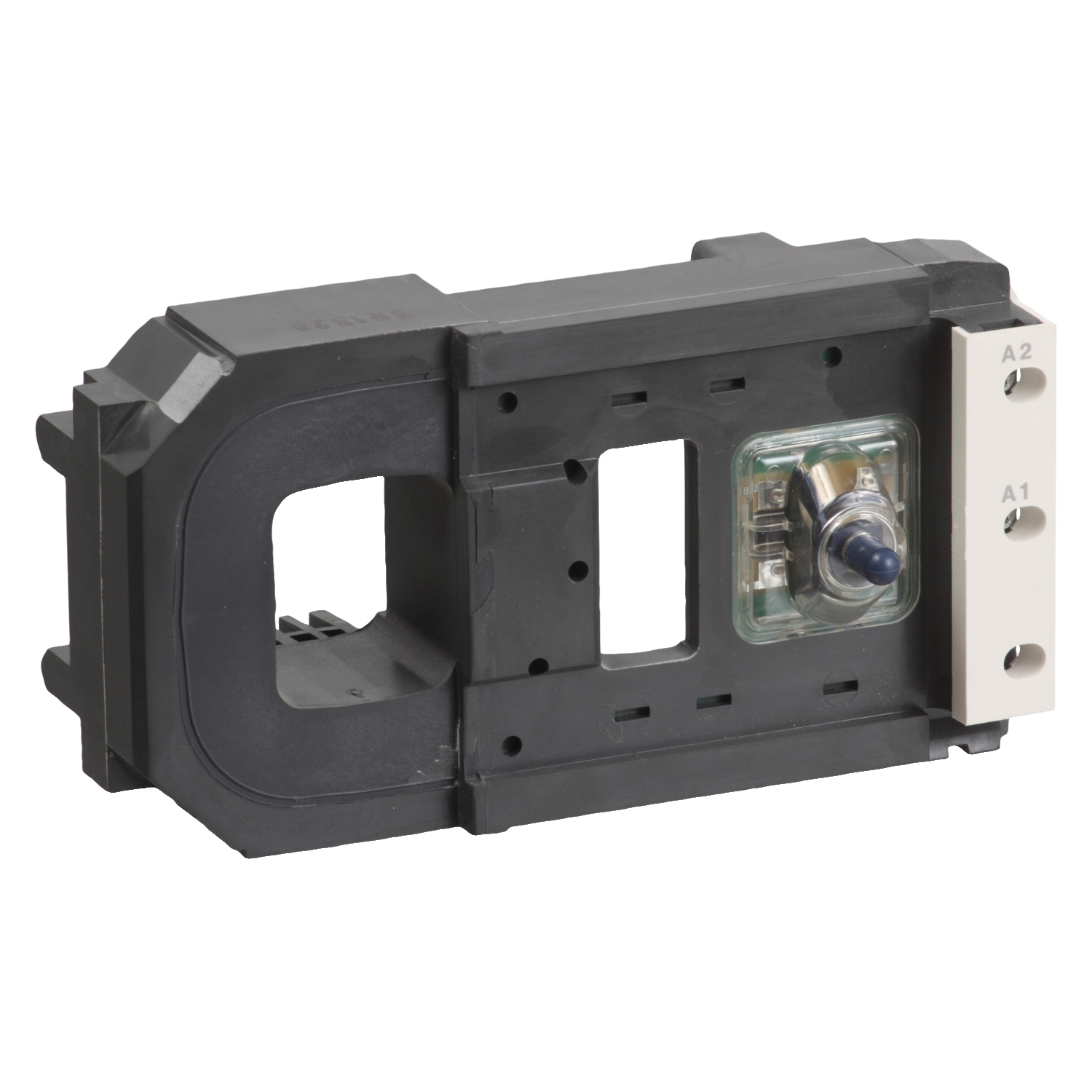

TeSys F AC coil 220/230V 40-400Hz (voltage code M7/P7), low sealed consumption, for TeSys F 3-pole and 4-pole contactors LC1F500. It operates in voltage limits 0.85-1.1 Uc and environments until 55°C. It provides high operating rates to the contactor, until 2400 cycles/hour. Green Premium compliant (RoHS/REACh).
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Mechanical durability | 10 Mcycles |
| Device short name | LX1FK |
| Product compatibility | LC1F500 |
| Operating time | 40...75 ms closing, 100...170 ms opening |
| Maximum operating rate | 2400 cyc/h 55 °C |
| Inductance of closed circuit | 4.55 H |
| Range | TeSys |
| Product or component type | contactor coil |
| Range compatibility | TeSys TeSys F LC1F contactor |
| Control circuit type | AC at 40...400 Hz |
| Range of product | TeSys F |
| [Uc] control circuit voltage | 220...230 V AC 40...400 Hz |
| Average resistance | 915 Ohm holding at 20 °C, 35.5 Ohm inrush at 20 °C |
| Complementary | |
| Heat dissipation | 18-18 W at 40...400 Hz |
| Hold-in power consumption in VA | 18-18 VA 40...400 Hz cos phi 0.3 (at 20 °C) |
| Coil technology | without built-in suppressor module |
| Inrush power in VA | 1100-1100 VA 40...400 Hz cos phi 0.9 (at 20 °C) |
| Control circuit voltage limits | drop-out: 0.3...0.5 Uc 40...400 Hz (at 55 °C), operational: 0.85...1.1 Uc 40...400 Hz (at 55 °C) |
| Environment | |
| Net weight | 1.15 kg |
| Ambient air temperature for operation | -5-55 °C |
