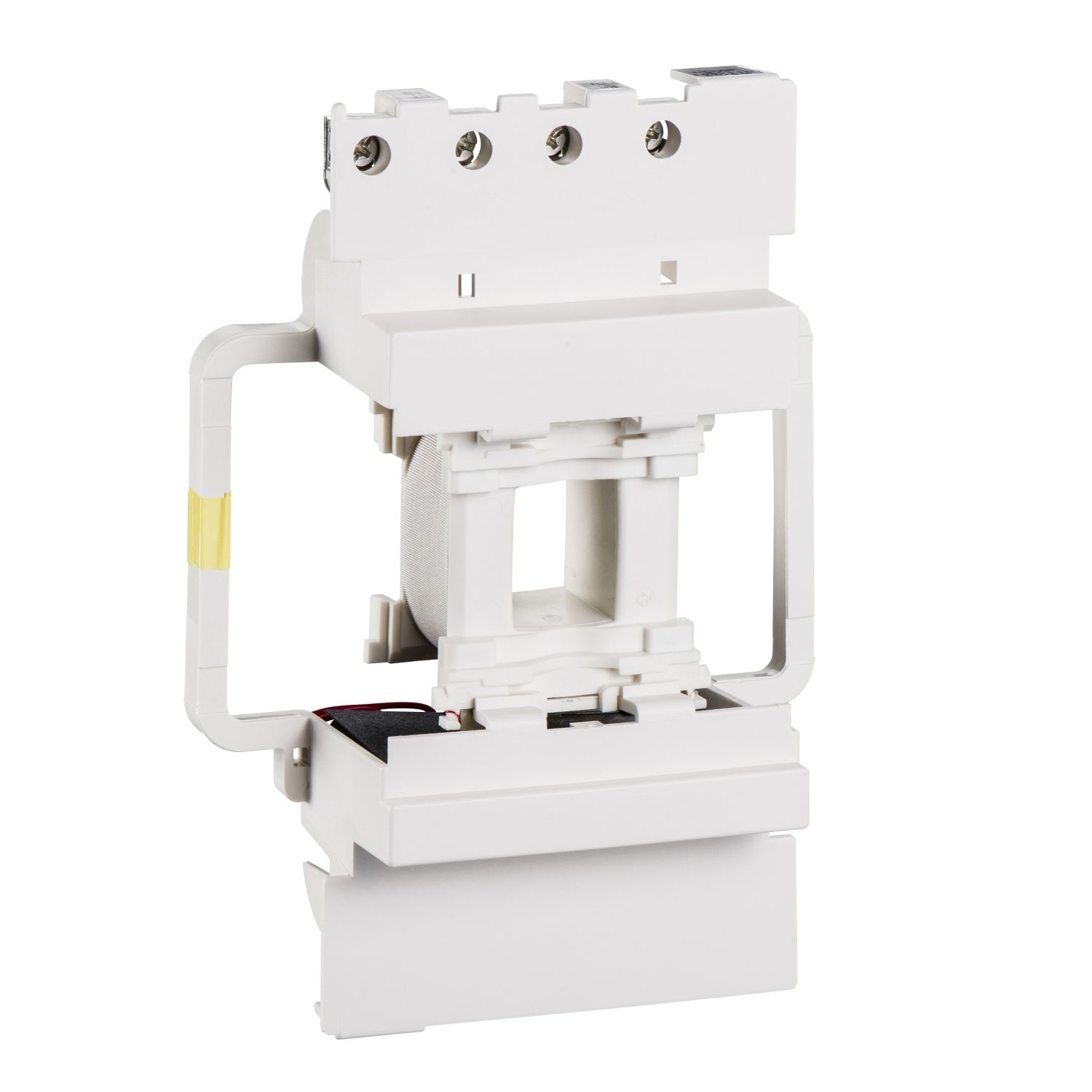

Contactor Coil, TeSys D, LX4D8, 24 V DC standard for 115 & 150 A Contactor

Manufacturer: Schneider Electric

SKU: LX4D8BD

GTIN: 3389110805116

Catalog

Environmental Disclosure

Old price: $535.15 inc GST

Price: $212.40 inc GST

Qty:

Supported cards

Full Description
Specifications
Reviews

TeSys Deca replacement DCcoil 24V, for TeSys Deca contactors. To be used with 3 and 4-pole contactors LC1 D115, D150. It operates in the voltage limits 0.75-1.2 Uc. Coil with integral suppression device fitted as standard. Green Premium compliant (RoHS/REACh).

Products specifications

Attribute name	Attribute value
Main
Device short name	LX4D8

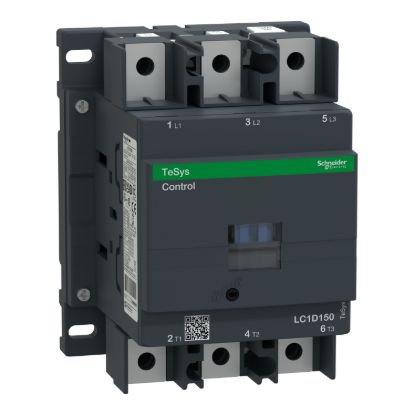

Product compatibility	LC1D115, LC1D150
Mechanical durability	8 Mcycles
Maximum operating rate	1200 cyc/h 60 °C
Inductance of closed circuit	3.03 H
Range	TeSys
Product or component type	contactor coil
Control circuit type	DC standard
Range of product	TeSys Deca
[Uc] control circuit voltage	24 V DC
Average resistance	147 Ohm at 20 °C
Complementary
Inrush power in W	270-365 W (at 20 °C)
Time constant	25 ms
Coil technology	without built-in suppressor module
Hold-in power consumption in W	2.4-5.1 W at 20 °C
Control circuit voltage limits	drop-out: 0.15...0.4 Uc (at <55 °C), operational: 0.75...1.2 Uc (at <55 °C)
Environment
Net weight	0.3 kg
Ambient air temperature for operation	-5-60 °C
