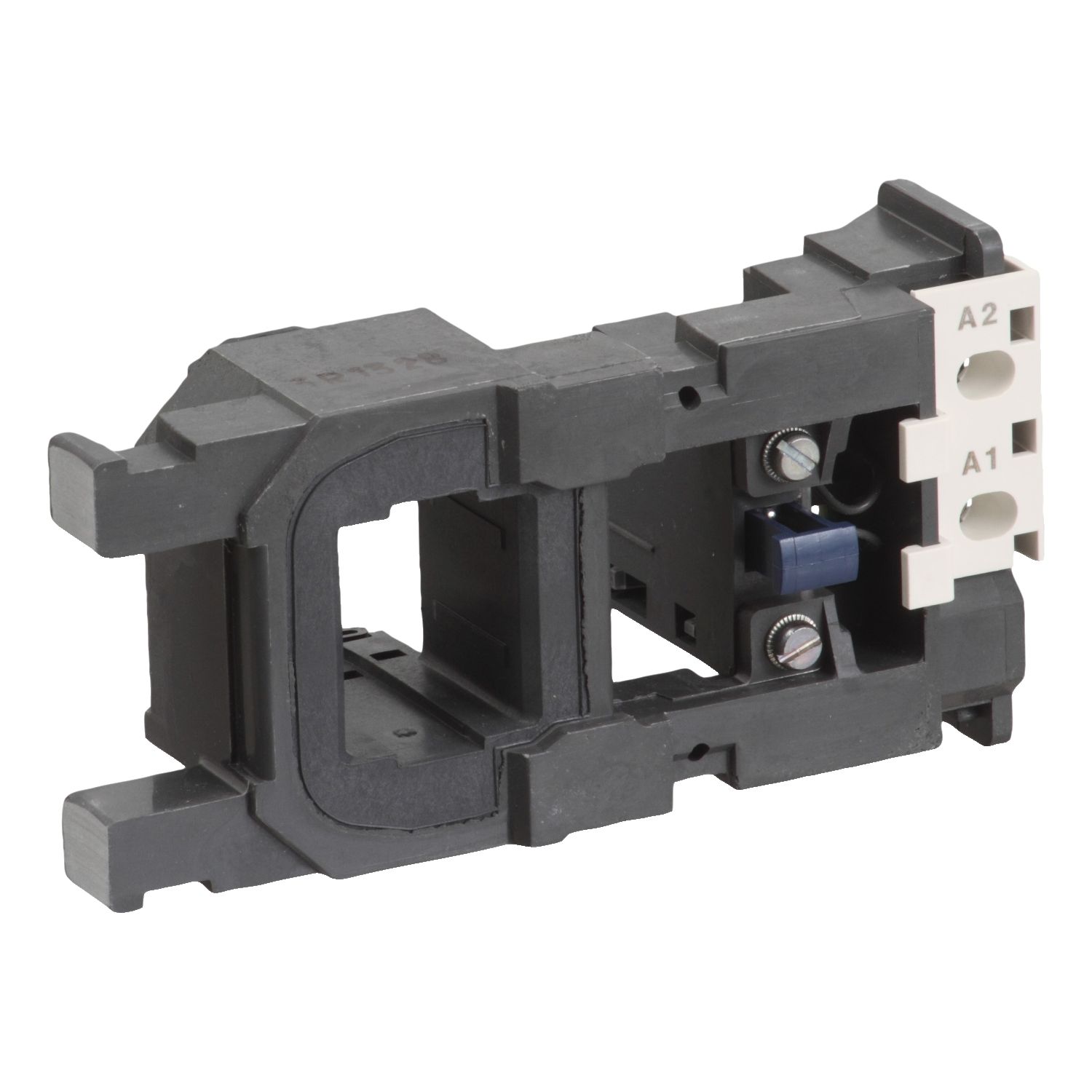

TeSys F DC coil 220/230V (voltage code MD), low sealed consumption, for TeSys F 3-pole and 4-pole contactors LC1 F115, F150. It operates in the voltage limits 0.85-1.1 Uc and environments until 55°C. It provides to the contactor high operating rates until 2400 cycles/hour. Green Premium compliant (RoHS/REACh).
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Mechanical durability | 10 Mcycles |
| Device short name | LX4FF |
| Product compatibility | LC1F150, LC1F115 |
| Operating time | 30...50 ms opening, 30...40 ms closing |
| Maximum operating rate | 2400 cyc/h 55 °C |
| Inductance of closed circuit | 704 H |
| Range | TeSys |
| Product or component type | contactor coil |
| Range compatibility | TeSys TeSys F LC1F contactor |
| Control circuit type | DC low consumption |
| Range of product | TeSys F |
| [Uc] control circuit voltage | 220...230 V DC |
| Average resistance | 11100 Ohm holding at 20 °C, 84 Ohm inrush at 20 °C |
| Complementary | |
| Inrush power in W | 560-560 W (at 20 °C) |
| Coil technology | without built-in suppressor module |
| Hold-in power consumption in W | 4.5-4.5 W at 20 °C |
| Control circuit voltage limits | drop-out: 0.15...0.2 Uc (at 55 °C), operational: 0.85...1.1 Uc (at 55 °C) |
| Environment | |
| Net weight | 0.43 kg |
| Ambient air temperature for operation | -5-55 °C |
