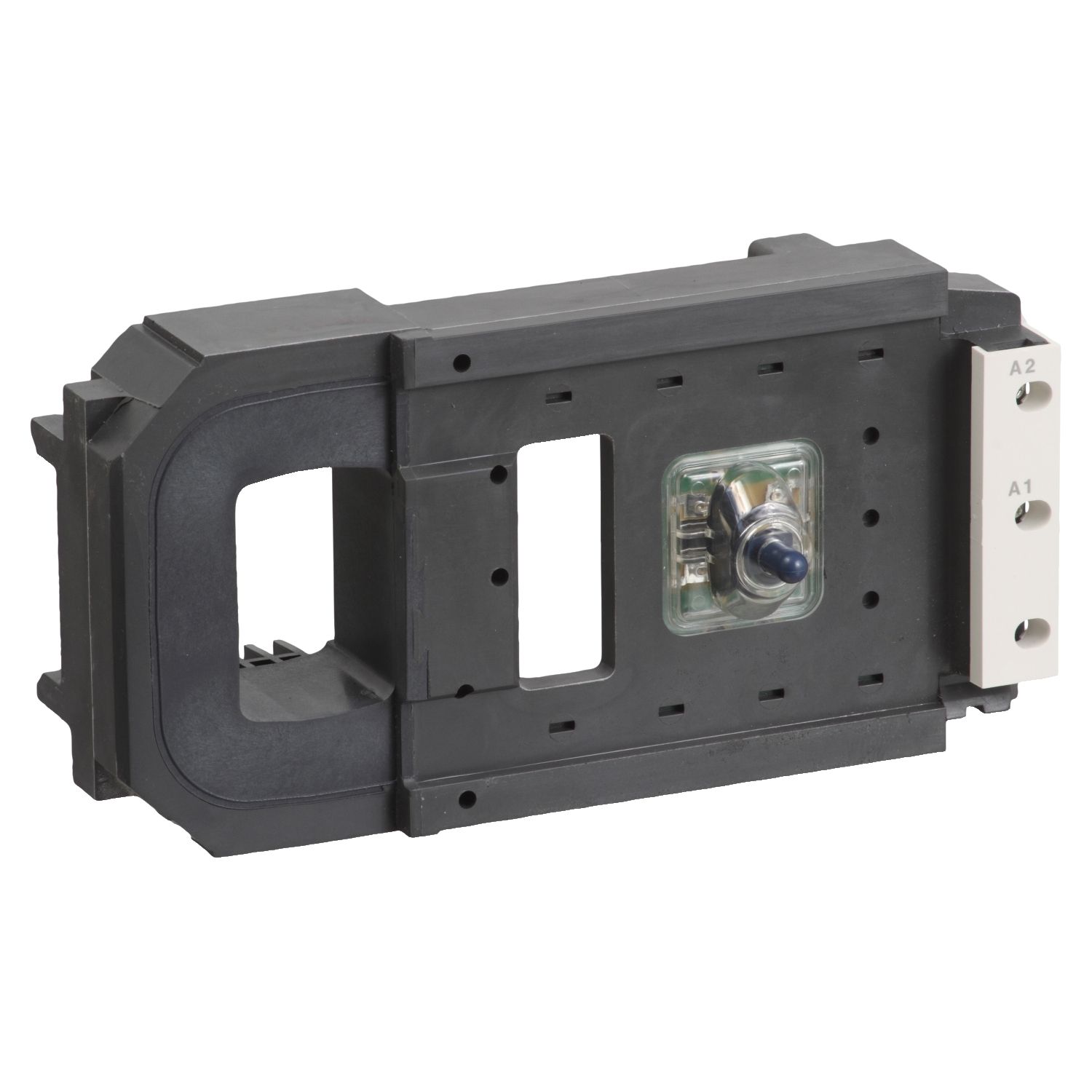

TeSys F DC coil 110V (voltage code FD), low sealed consumption, for TeSys F 3-pole and 4-pole contactors LC1F630, LC1F1250. It operates in the voltage limits 0.85-1.1 Uc and environments until 55°C. It provides to the contactor high operating rates until 1200 cycles/hour. Green Premium compliant (RoHS/REACh).
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Mechanical durability | 5 Mcycles |
| Device short name | LX4FL |
| Product compatibility | LC1F630, LC1F1250 |
| Operating time | 60...70 ms closing, 40...50 ms opening |
| Maximum operating rate | 1200 cyc/h 55 °C |
| Inductance of closed circuit | 180 H |
| Range | TeSys |
| Product or component type | contactor coil |
| Range compatibility | TeSys TeSys F LC1F contactor |
| Control circuit type | DC low consumption |
| Range of product | TeSys F |
| [Uc] control circuit voltage | 110 V DC |
| Average resistance | 1680 Ohm holding at 20 °C, 8.1 Ohm inrush at 20 °C |
| Complementary | |
| Inrush power in W | 1600-1600 W (at 20 °C) |
| Coil technology | without built-in suppressor module |
| Hold-in power consumption in W | 9-9 W at 20 °C |
| Control circuit voltage limits | operational: 0.85...1.1 Uc (at 55 °C), drop-out: 0.2...0.35 Uc (at 55 °C) |
| Environment | |
| Net weight | 1.45 kg |
| Ambient air temperature for operation | -5-55 °C |
