Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Mechanical durability | 10 Mcycles |
| Device short name | LX9FG |
| Product compatibility | LC1F115, LC1F150 |
| Operating time | 130 ms opening, 35 ms closing |
| Maximum operating rate | 2400 cyc/h 55 °C |
| Inductance of closed circuit | 0.13 H |
| Range | TeSys |

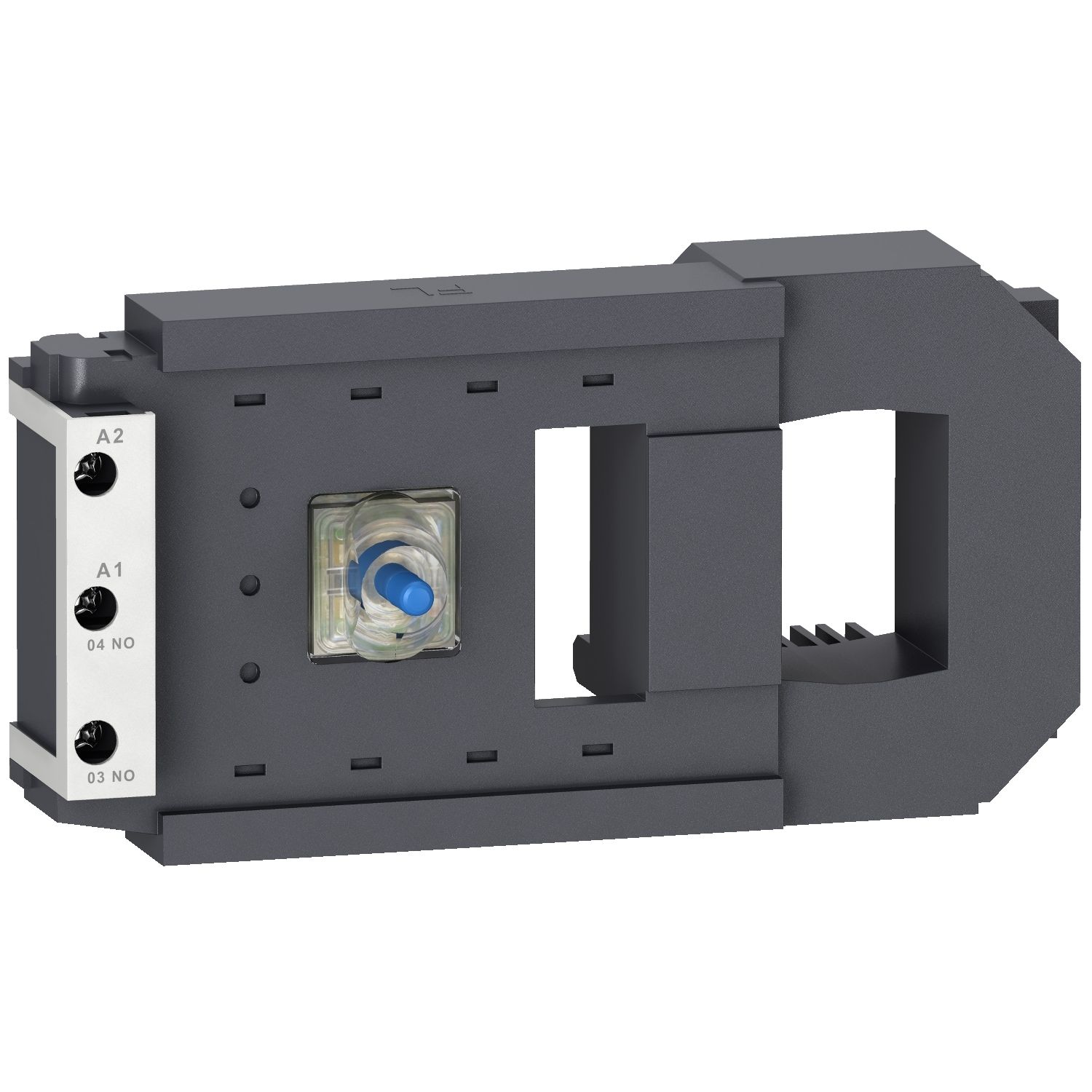

| Product or component type | contactor coil |
| Range compatibility | TeSys TeSys F LC1F contactor |
| Control circuit type | AC low consumption |
| Range of product | TeSys F |
| [Uc] control circuit voltage | 24 V AC |
| Average resistance | 34 Ohm holding at 20 °C, 0.56 Ohm inrush at 20 °C |
| Complementary | |
| Inrush power in W | 950-1180 W (at 20 °C) |
| Coil technology | without built-in suppressor module |
| Hold-in power consumption in W | 8.9-10.9 W at 20 °C |
| Control circuit voltage limits | drop-out: 0.2...0.55 Uc (at 55 °C), operational: 0.85...1.1 Uc (at 55 °C) |
| Environment | |
| Net weight | 0.55 kg |
| Ambient air temperature for operation | -5-55 °C |
