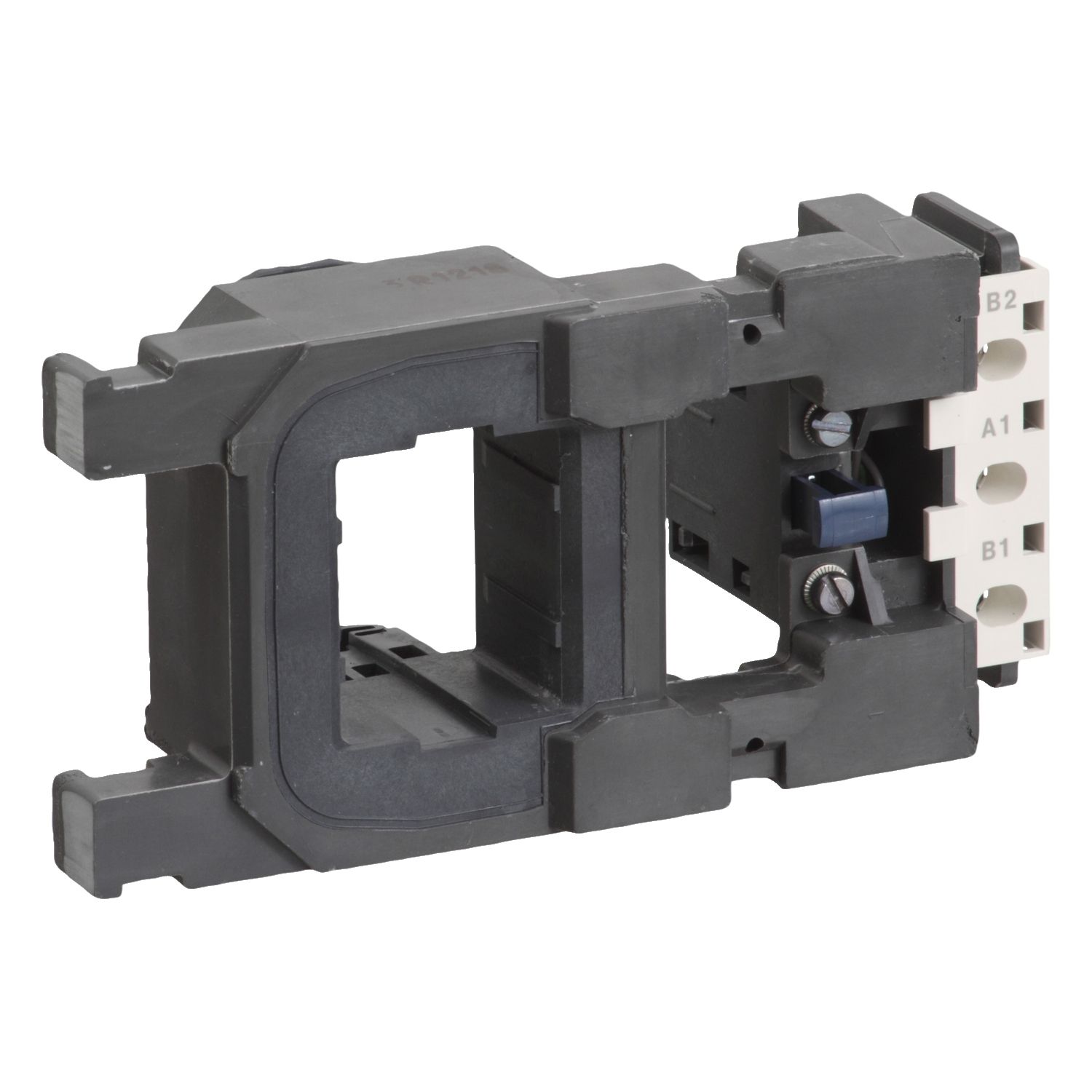

TeSys F AC coil 110/115V 40-400Hz (voltage code F7/FE7), low sealed consumption, high tolerance to voltage drops, for TeSys F 3-pole and 4-pole contactors LC1 F265, FG265, F330. It operates in voltage limits 0.85-1.1 Uc and environments until 55°C. It provides high operating rates to the contactor, until 2400 cycles/hour. Green Premium compliant (RoHS/REACh).
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Mechanical durability | 10 Mcycles |
| Device short name | LX9FH |
| Product compatibility | LC1F330, LC1F265 |
| Operating time | 45 ms closing, 25 ms opening |
| Maximum operating rate | 3600 cyc/h 55 °C |
| Range | TeSys |
| Product or component type | specific contactor coil |
| Range compatibility | TeSys TeSys F LC1F contactor |
| Control circuit type | AC at 40...400 Hz low consumption |
| Range of product | TeSys F |
| [Uc] control circuit voltage | 110...115 V AC 40...400 Hz |
| Average resistance | 415 Ohm holding at 20 °C, 18.7 Ohm inrush at 20 °C |
| Complementary | |
| Heat dissipation | 8.4-10.4 W |
| Hold-in power consumption in VA | 8-10 VA 40...400 Hz (at 20 °C) |
| Coil technology | without built-in suppressor module |
| Inrush power in VA | 560-660 VA 40...400 Hz (at 20 °C) |
| Control circuit voltage limits | drop-out: 0.35...0.55 Uc (at 55 °C), operational: 0.85...1.1 Uc (at 55 °C) |
| Environment | |
| Net weight | 0.75 kg |
| Ambient air temperature for operation | -5-55 °C |
