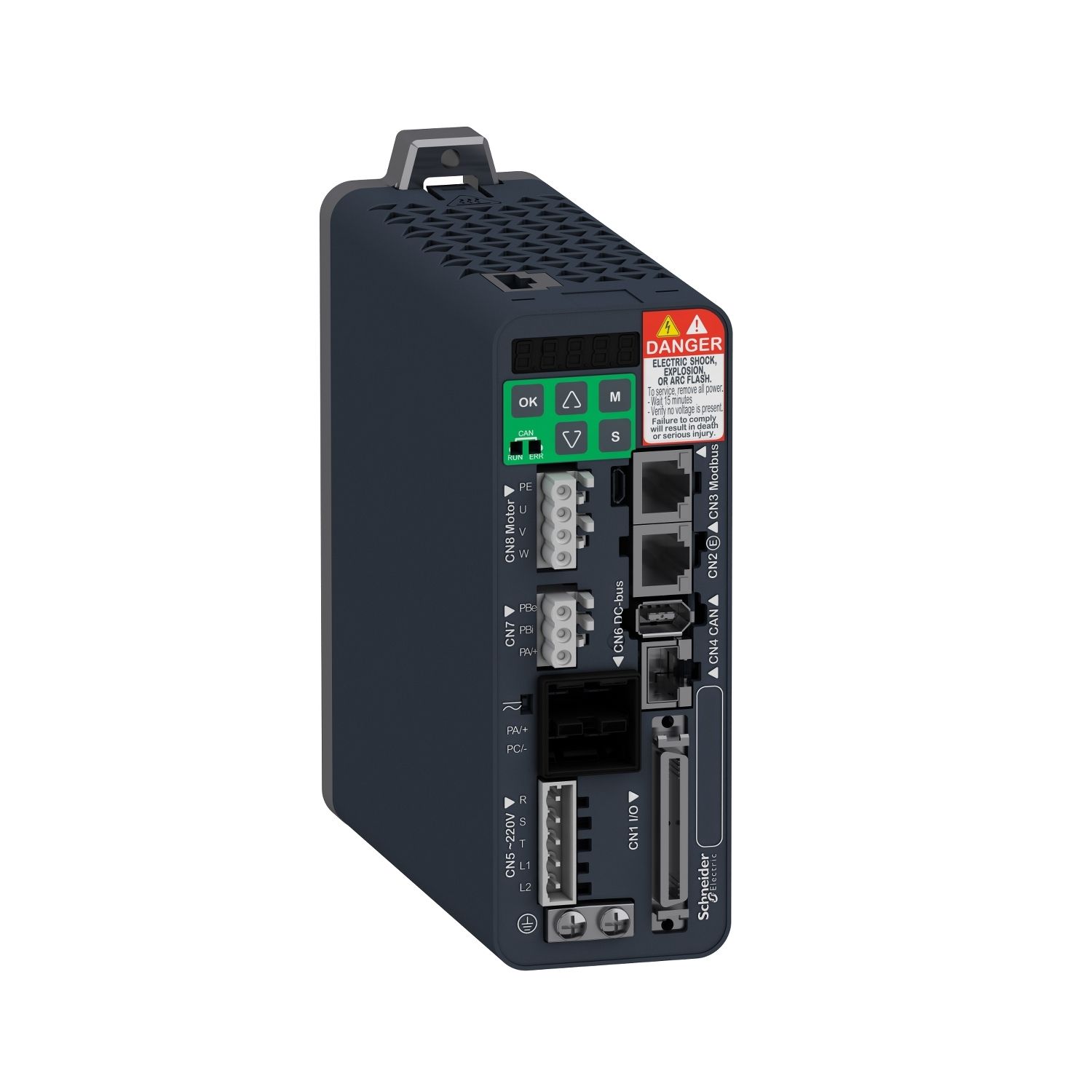

This product is part of the Lexium 28 range, an offer of motion servo drives for machines from 0.05 to 4.5kW. The motion servo drive without EMC filter, features an HMI interface 7-segment display with 5 buttons. Thanks to its open communication concept, Lexium 28 servo drive can be easily integrated into numerous different control system architectures. The motion servo drives embed one pulse-train-input PTI and one pulse train-output PTO interfaces. It is a motion servo drive with a rated supply voltage of 220V (single phase and three phase), an output current of 2.0A at 220V, a power of 50W/0.067HP and a continuous power of 50W at 220V. It is furnished with spring terminal for electrical connection and RJ45 connectors for Sercos integrated communication interface. It is an IP20 rated product. Its dimensions are 55mm (Width) x 146mm (Depth) x 150mm (Height). It weighs 1kg. This product is certified by CE, CSA and CULus. It meets EN/IEC 61800-5-1 standards. This product is compatible with motor BCH2 (40mm, 1 motor stacks) at 50W. Mount this servo drive in a vertical position (more or less 10°). This is required for cooling the device. Lexium 28 and Lexium BCH2, the optimized servo bundle for all motion control solutions are cost effective, energy efficient and embedded safety. Lexium 28 servo drives and Lexium BCH2 motors, optimized servo bundles for compact machines.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | LXM28S |
| Range of product | Lexium 28 |
| Product or component type | motion servo drive |
| Format of the drive | compact housing |
| Line current | 0.8 A 227 % at 220 V, three phase, 0.8 A 262.8 % at 220 V, single phase |
| Complementary | |
| Drive voltage drop coefficient | 1 |
| Continuous power | 50 W at 220 V |
| Protection type | overspeed: motor, overload: motor, overheating: motor, undervoltage: motor, overvoltage: motor, overcurrent: motor, against short-circuits: outputs signal, against reverse polarity: inputs signal |
| Switching frequency 3 | 16 kHz |
| Switching frequency 2 | 16 kHz |
| Continuous output current | 0.64 A at 16 kHz |
| EMC filter | without EMC filter |
| Operating position | vertical |
| Output voltage | <= power supply voltage |
| Control signal type | servo motor encoder feedback CN2 |
| Method of access | slave |
| Supply voltage limits | 170-255 V single phase, 200-255 V three phase |
| Type of cooling | natural convection |
| Supply voltage description | three phase 220 V AC 50...60 Hz, single phase 220 V AC 50...60 Hz |
| Electrical connection | spring terminal, clamping capacity: 0.82...1 mm², AWG 18 (PA/+, PBe), spring terminal, clamping capacity: 0.82...1 mm², AWG 18 (U, V, W, PE), spring terminal, clamping capacity: 0.82...1 mm², AWG 18 (R, S, T), spring terminal, clamping capacity: 0.82...1 mm², AWG 18 (L1-L2) |
| Communication interface | SERCOS III, integrated, Modbus, integrated |
| Output current 3s peak 3 | 2 A at 220 V |
| Output current 3s peak 2 | 2 A at 220 V |
| Marking | cULus, CSA, CE |
| Discrete output voltage | 12...24 V DC |
| Transmission rate | 9600 bauds...115200 bauds (automatic detection) for bus length of 100-100 m |
| Discrete input voltage | 24 V DC for logic |
| Status LED | 1 LED (red) error, 1 LED (green) RUN, 1 LED (red) charge |
| Product compatibility | servo motor BCH2 (40 mm, 1 motor stacks) at 50 W |
| Height | 150 mm |
| Safety level | SIL 2 conforming to IEC 62061: 2012, SIL 2 conforming to IEC 60204-1: 2010/AC, SIL 2 conforming to IEC 60204-1: 2009/A1, SIL 2 conforming to IEC 60204-1: 2006, SIL 2 conforming to ISO 13849-1: 2009/AC, PL d/category 3 conforming to ISO 13849-1: 2008, SIL 2 conforming to IEC 61508-1: 2010, SIL 2 conforming to IEC 61800-5-2: 2007 |
| Supply frequency | 50/60 Hz - 5...5 % |
| Network number of phases | 3, 1, three phase, single phase |
| Nominal power | 0.05 kW at 220 V 16 kHz |
| Depth | 146 mm |
| Overvoltage category | III |
| Width | 55 mm |
| Maximum leakage current | 1.3 mA |
| Safety function | STO (safe torque off), integrated |
| Field weakening | False |
| Emc filter compatibility | type 022, type 020 |
| Communication iinterface | SERCOS III, pulse train output |
| Discrete output logic | positive or negative (CN1) |
| Switching frequency | 16 kHz |
| Net weight | 1 kg |
| Connector type | RJ45 (CN4), RJ45 (CN3) |
| Signalling function | servo status and fault codes five 7-segment display units |
| Discrete input number | 1 safety function STO (CN9), 2 fast capture (CN1), 8 programmable (CN1) |
| Discrete output number | 1 pulse train output (PTO) (CN1), 4 logic output (CN1) at 12...24 V DC |
| Output current 3s peak | 2 A at 220 V |
| Electrical isolation | between power and control |
| Continuous output current 3 | 0.64 A |
| Continuous output current 2 | 0.64 A |
| Discrete input logic | positive or negative (CN1) |
| Type of cable | shielded motor cable (temperature: 0-55 °C) copper |
| Network frequency | 47.5...63 Hz |
| [Us] rated supply voltage | 200...240 V (- 20...15 %) for single phase, 200...240 V (- 10...15 %) for three phase |
| Environment | |
| IP degree of protection | IP20 |
| Relative humidity | 5-95 % without condensation |
| Ambient air temperature for storage | -25-65 °C |
| Electromagnetic compatibility | conducted emission - test level: level 3 category C3 conforming to IEC 61800-3 |
| Ambient air temperature for operation | 0-55 °C |
| Operating altitude | > 1000...2000 m 1 % per 100 m, <= 1000 m without derating |
| Shock resistance | 10 gn, type I conforming to IEC 60721-3-3 |
| Vibration resistance | 3M4 amplitude = 3 mm (f = 9-200 Hz) conforming to IEC 60721-3-3 |
| Standards | IEC 61800-5-1 |
| Product certifications | cULus, CE, CSA |
