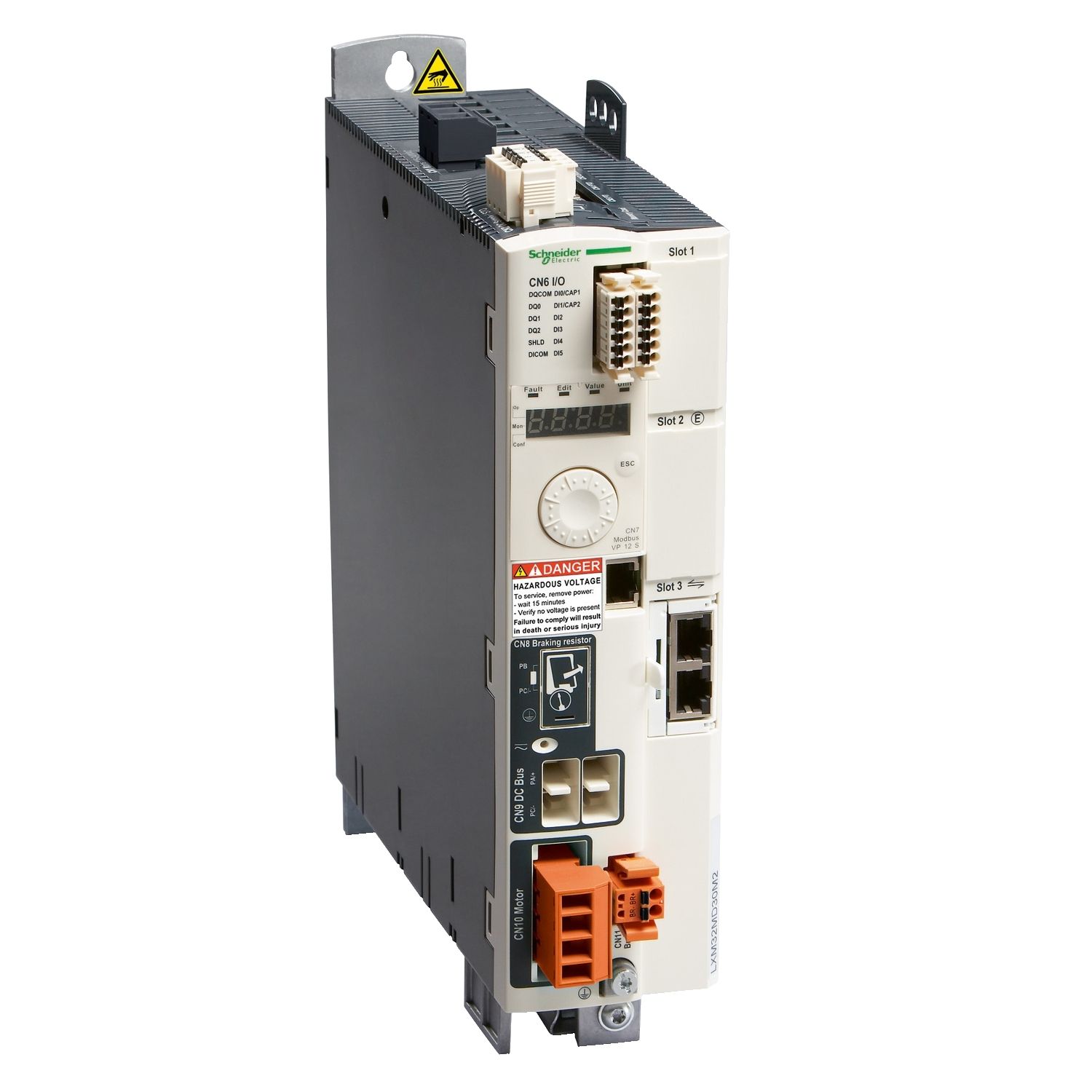

This product is part of the Lexium 32 range, an offer of motion servo drives for machines from 0.15kW to 7kW. The AC motion servo drive for one axis, features with an integrated EMC filter, compact drive with analogue inputs and pulse train. It provides 2 capture discrete inputs and 3 discrete outputs. Thanks to its compact design this servo drive enables to save on cabinet space and size, reduces the machine footprint and decreases costs. It is a motion servo drive with a rated supply voltage of 200V to 240V, 380V to 480V (three phase), a continuous output current of 3A at 8kHz and a continuous power of 800W at 230V. It is furnished with terminal for electrical connection and RJ45 connector for Modbus and SERCOS III integrated communication interfaces. It is an IP20 rated product. Its dimensions are 68mm (Width) x 237mm (Depth) x 270mm (Height). It weighs 1.9kg. This product is certified by CE and CSA. It meets EN/IEC 61800-3 standards. This product is compatible with servo motor BMH. Servo drive range with four servo drive models and two servo motor families plus an intelligent selection of options. It provides you with the drive and motor combination that has exactly the right power, performance and functionality.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | LXM32S |
| Continuous power | 1600 W at 480 V, 1600 W at 400 V, 800 W at 208 V |
| Continuous output current | 3 A at 8 kHz |
| EMC filter | integrated |
| Supply voltage limits | 323-528 V, 170-264 V |
| Line current | 2.4 A 182 % at 480 V, without line choke, 2.9 A 177 % at 400 V, without line choke, 3.6 A 136 % at 208 V, without line choke, 2.9 A 98 % at 480 V, with external line choke of 2 mH, 3.4 A 90 % at 400 V, with external line choke of 2 mH, 3.1 A 79 % at 208 V, with external line choke of 2 mH |
| Range of product | Lexium 32 |
| [Us] rated supply voltage | 380...480 V - 15...10 %, 200...240 V - 15...10 % |
| Supply frequency | 50/60 Hz - 5...5 % |
| Nominal power | 0.9 kW at 480 V 8 kHz, 0.9 kW at 400 V 8 kHz, 0.7 kW at 208 V 8 kHz |
| Network number of phases | three phase |
| Product or component type | motion servo drive |
| Format of the drive | book |
| Output current 3s peak | 12 A at 480 V for 5 s, 12 A at 208 V for 5 s |
| Network frequency | 47.5...63 Hz |
| Complementary | |
| Response time on output | 250 µs (DO) for discrete output(s) |
| Drive voltage drop coefficient | 0.95 |
| Discrete input number | 2 capture discrete input(s) |
| Switching frequency 3 | 8 kHz |
| Switching frequency 2 | 8 kHz |
| Tightening torque | CN8: 0.5-0.5 N.m |
| Operating position | vertical +/- 10 degree |
| Output voltage | <= power supply voltage |
| Compatibility code | LXM32S |
| Discrete input type | capture (CAP terminals) |
| Supply voltage description | three phase 230 V |
| Electrical connection | terminal, clamping capacity: 3 mm², AWG 12 (CN8) |
| Communication interface | SERCOS III, integrated, Modbus, integrated |
| Connector type | RJ45 (labelled CN7) for Modbus |
| Output current 3s peak 3 | 12 A |
| Contact bounce time | <= 1 ms for compliment of STO_A, compliment of STO_B |
| Number of inputs/outputs | 4 DI + 2 CI + 3 DO |
| Output current 3s peak 2 | 12 A |
| Marking | CE |
| Transmission rate | 9600, 19200, 38400 bps for bus length of 40-40 m for Modbus |
| Discrete input voltage | 24 V DC for capture |
| Status LED | 1 LED (red) servo drive voltage |
| Height | 270 mm |
| Product compatibility | servo motor BMH (70 mm, 1 motor stacks) |
| Sampling duration | 0.25 ms |
| Safety level | SIL 3 conforming to EN/IEC 61508 |
| Discrete output type | logic output(s) (DO)24 V DC |
| Network number of phases | 3 |
| Depth | 237 mm |
| Overvoltage category | III |
| Width | 68 mm |
| Maximum leakage current | 30 mA |
| Number of addresses | 1-247 for Modbus |
| Safety function | STO (safe torque off), integrated |
| Field weakening | False |
| Emc filter compatibility | type 022 |
| Communication iinterface | SERCOS III |
| Discrete output logic | positive or negative (DO) conforming to EN/IEC 61131-2 |
| Discrete output number | 3 |
| Discrete output voltage | <= 30 V DC |
| Switching frequency | 8 kHz |
| Braking current | 50 mA |
| Net weight | 1.9 kg |
| Signalling function | display of faults 7 segments |
| Response time | <= 5 ms compliment of STO_A, compliment of STO_B |
| Physical interface | 2-wire RS485 multidrop for Modbus |
| Electrical isolation | between power and control |
| Continuous output current 3 | 3 A |
| Continuous output current 2 | 3 A |
| Discrete input logic | positive (compliment of STO_A, compliment of STO_B) at State 0: < 5 V at State 1: > 15 V conforming to EN/IEC 61131-2 type 1 |
| Type of cable | single-strand IEC cable (temperature: 50-50 °C) copper 90 °C XLPE/EPR |
| Environment | |
| Relative humidity | Class 3K3 (5 to 85 %) without condensation conforming to IEC 60721-3-3 |
| IP degree of protection | IP20 conforming to EN/IEC 60529 |
| Type of cooling | integrated fan |
| Ambient air temperature for storage | -25-70 °C |
| Pollution degree | 2 conforming to EN/IEC 61800-5-1 |
| Electromagnetic compatibility | conducted EMC conforming to EN 55011 class A group 1 |
| Ambient air temperature for operation | 0-50 °C conforming to UL |
| Operating altitude | <= 1000 m without derating |
| Vibration resistance | 1 gn (f= 13-150 Hz) conforming to EN/IEC 60068-2-6 |
| Environmental characteristic | classes 3C1 conforming to IEC 60721-3-3 |
| Shock resistance | 15 gn for 11 ms conforming to EN/IEC 60028-2-27 |
| Standards | EN/IEC 61800-3 |
| Product certifications | CSA |
