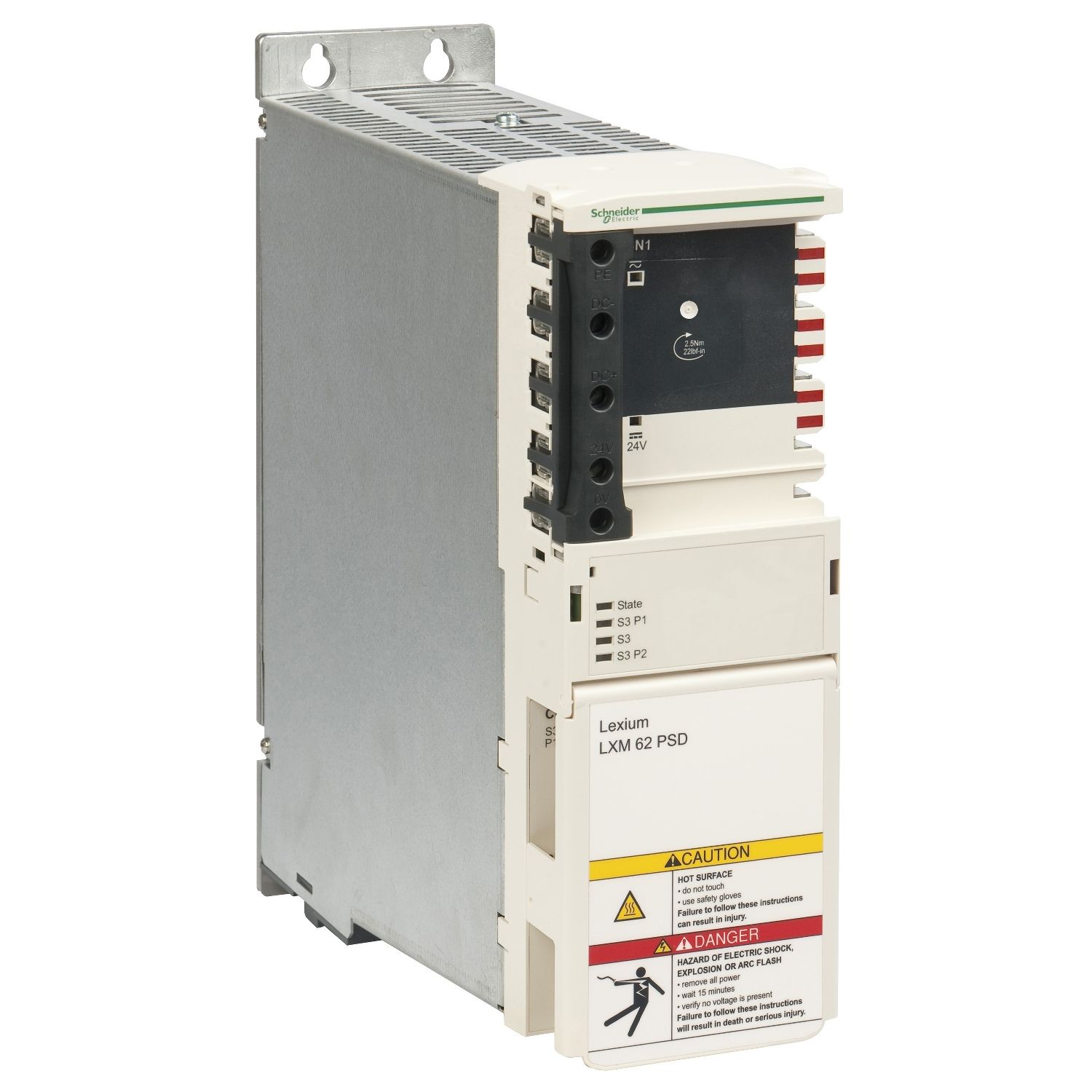

This product is part of the PacDrive 3 range, an offer of power supplies for integrated drives. The power supply module features SERCOS III communication interface. It offers 2 relay outputs for volt-free contacts. It is a power supply module with a rated supply voltage of 400V three phase, 230V three/single phase and a rated supply current of 10A single/three phase AC. It is an IP20 rated product. Its dimensions are 89.5mm (width) x 270mm (depth) x 310mm (height). It weighs 6.3kg. It is suitable for use in general machine control, packaging machine automation, material handling applications. This product is certified by CE and CSA. It meets EN/IEC 61800-5-1, EN/IEC 61800-3 and UL 508C standards. Lexium 62 ILM integrated servo modules can be controlled with all PacDrive LMC Eco and Pro/Pro 2 series motion controllers via SERCOS communication. Multiaxis integrated servo drives from 0.31kW to 1.91kW for automation solutions based on PacDrive 3.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Range of product | PacDrive 3 |
| Component name | LXM62 |
| Product or component type | power supply |
| Complementary | |
| Supply frequency | 50/60 Hz +/- 5 % |
| Braking resistance | 15 Ohm |
| Physical interface | SERCOS III |
| Maximum braking power | 46 kW |
| Marking | CE |
| Output type | 2 relays for volt-free contacts |
| [Us] rated supply voltage | 230 V single phase (tolerance: - 10...10 %) , 230 V three phase (tolerance: - 10...10 %) , 400 V three phase (tolerance: - 10...10 %) |
| Height | 310 mm |
| Safety level | can reach PL d/category 3 conforming to EN/ISO 13849-1, can reach SIL 2 conforming to EN 61508 |
| Maximum power | 12.5 kW at 480 V three phase AC, 10.4 kW at 400 V three phase AC |
| Depth | 270 mm |
| Nominal power | 6.2 kW at 480 V three phase AC, 5.2 kW at 400 V three phase AC |
| Holding time | 15 min |
| Width | 89.5 mm |
| Supply circuit type | AC |
| Bus voltage | 270-700 V |
| Peak current | 20 kA three phase AC for 1 s, 20 kA single phase AC for 1 s |
| Overvoltage category | III conforming to EN 61800-5-1 |
| Power supply output current | 20 A |
| Maximum cable capacity | 1.36 mF |
| Maximum DC bus voltage | 860 V |
| Net weight | 6.3 kg |
| [In] rated current | 10 A three phase AC, 10 A single phase AC |
| [Uc] control circuit voltage | 24 V DC (tolerance: - 20...25 %) |
| Permanent braking power | 400 W |
| Environment | |
| IP degree of protection | IP20 conforming to EN/IEC 60721-3-3 (with plugged-in connectors) |
| Ambient air temperature for storage | -25-55 °C |
| Pollution degree | 2 conforming to EN/IEC 60721-3-3 |
| Shock resistance | 300 m/s² during transport conforming to EN/IEC 60721-3-3, 100 m/s² in operation conforming to EN/IEC 60721-3-3 |
| Ambient air temperature for operation | 5-40 °C, 40-55 °C (with current derating of 2 % per °C) |
| Vibration resistance | 10 m/s² conforming to EN/IEC 60721-3-3 |
| Environmental characteristic | 3K3 conforming to IEC 60721-3-3 5-85 % |
| Standards | EN/IEC 61800-3, EN/IEC 61800-5-1, UL 508C |
| Product certifications | CSA, UL |
