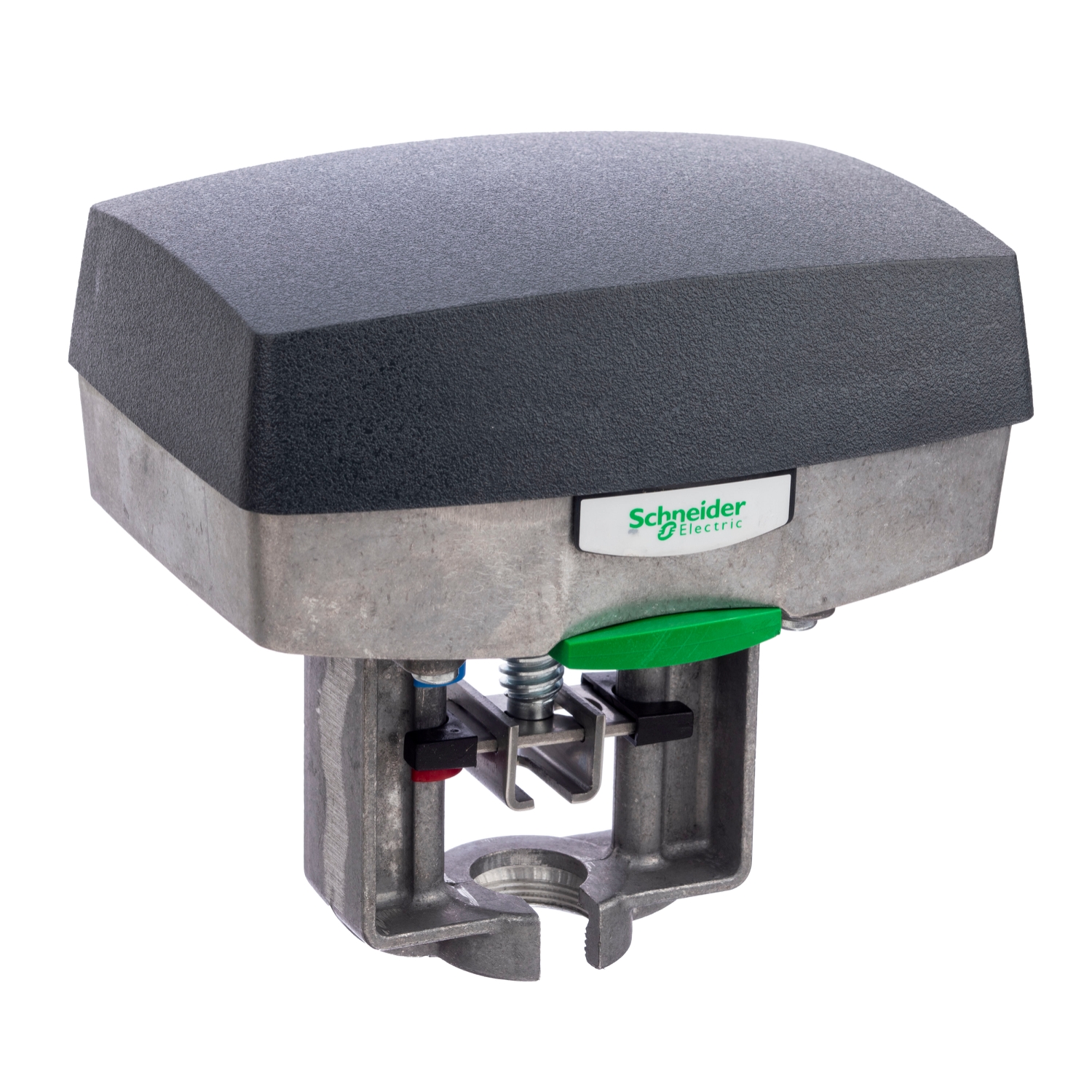

Forta, Actuator, floating or proportional, non-spring return, 24 Vac/Vdc, 1500 N, screw mount, NEMA 1 or 2
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Force N | 1500 N |
| Switch function | 2 SPDT (optional) |
| Relative humidity | 15-95 % non-condensing |
| Motor type | brushless DC motor |
| Ambient air temperature for storage | -25-65 °C |
| [Us] rated supply voltage | 20...29 V DC, 24 V AC/DC |
| Product destination | globe valve |
| Control type | manual override with 5/32 allen wrench |
| Product or component type | actuator |
| Targeted region | North America. |
| Analogue input range | 4...20 mA with 500 Ohm resistor, 0...10 V DC |
| Output voltage | 16 V DC |
| Force lbf | 337 lbf |
| Actuator | linear |
| Output current | 30 mA |
| Ambient air temperature for operation | -10-50 °C |
| Power loss return | non-spring return |
| Feedback signal | 2...10 V DC |
| Control signal | proportional, floating |
| Stroke auto calibration | False |
| Actuator type | electric |
| Actuator product range | SpaceLogic |
| Actuator product series | M1500 |
| Position indicator | green push stem with color markers |
