Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | ION7650 |
| Range | PowerLogic |

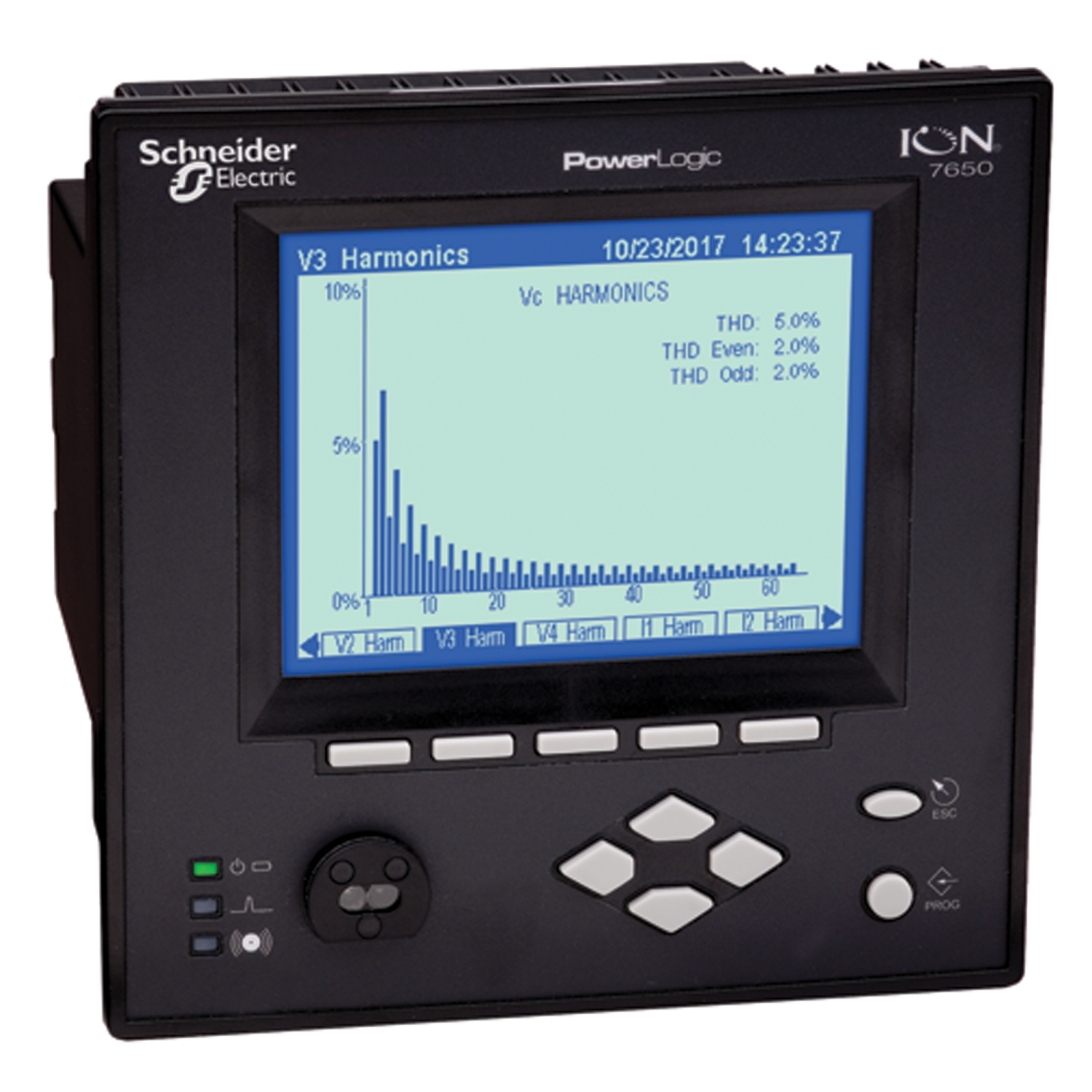

| Product name | PowerLogic ION7650 |
| Product or component type | energy and power quality meter |
| Range of product | PowerLogic |
| Complementary | |
| Maximum power consumption in VA | 20 VA at 20...60 V DC, 45 VA at 110...300 V DC, 45 VA at 85...240 V AC |
| Accuracy class | class 0.2S energy conforming to IEC 62053-22 |
| Device application | tariff metering, load curtailment, co-generation and IPP monitoring, energy pulsing and totalisation, equipment monitoring and control, demand and power factor control, instrument transformer correction |
| Transmission rate | 300...57600 bauds, <= 19200 bauds, 300...115200 bauds, 10/100 Mbit/s |
| Display type | backlit LCD |
| Web services | web server |
| Analogue input type | current 0.005...20 A (impedance 0.002 Ohm) |
| [In] rated current | 5 A |
| [Us] rated supply voltage | 85...240 V AC 47...63 Hz, 20...60 V DC, 110...300 V DC |
| Data recording | GPS synchronisation, trending/forecasting, sequence of event recording, event logs, data logs, min/max of instantaneous values, time stamping |
| Compatibility code | ION7650 |
| Poles description | 3P + N, 3P, 1P + N |
| Measurement accuracy | energy 0.2 %, voltage 0.1 % 57...288 V, current 0.1 % 1...5 A |
| Measurement current | 0-5 A |
| Tamperproof of settings | protected by access code |
| Number of inputs | 8 digital 120 V DC |
| Power consumption in VA | 15 VA at 20...60 V DC, 20 VA at 110...300 V DC, 20 VA at 85...240 V AC |
| Market segment | industry network management: main incomer, healthcare network management: main incomer, data center network management: main incomer, buildings multi-site network management: main incomer, buildings large building network management: main incomer, utility: grid |
| Display resolution | 320 x 240 pixels QVGA |
| Frequency measurement range | 42-69 Hz |
| Communication port protocol | TCP/IP, Modbus, DNP3, IEC 61850, Telnet, ION |
| Type of measurement | reactive power per phase, reactive power total, active power per phase, active power total, power factor per phase, apparent power per phase, power factor total, apparent power total, frequency, voltage, current |
| Number of outputs | 4 solid state, 3 relay |
| Memory capacity | 10 MB |
| Sampling rate | 1024 samples/cycle |
| Measurement voltage | 57-347 V AC phase to neutral, 100-600 V AC phase to phase |
| Power quality analysis | conforming to EN 50160 compliance report, conforming to IEC 61000-4-30: class A power quality measurement, up to the 63rd harmonic, setpoint learning, programmablity (logic and math functions), disturbance direction detection, dip and swell, transient, compliance monitoring, waveform capture, voltage sag and swell detection, harmonic distortion |
| Communication port support | ST: fiber optic, SUB-D 9: RS232, RJ11: modem, RS485, RJ45: ETHERNET |
| Network frequency | 50 Hz |
| Environment | |
| Operating altitude | 0...2000 m |
| Depth | 174 mm |
| Overvoltage category | III |
| Width | 192 mm |
| IP degree of protection | IP50 front face: conforming to IEC 60529, IP30 back: conforming to IEC 60529 |
| Mounting support | enclosure door |
| Relative humidity | 5-95 % |
| Ambient air temperature for storage | -40-85 °C |
| Pollution degree | 2 |
| Mounting mode | flush-mounted |
| Type of installation | indoor installation |
| Net weight | 1.9 kg |
| Electromagnetic compatibility | conducted and radiated emissions B conforming to CISPR 22, 1.2/50 µs shock waves immunity test conforming to IEC 61000-4-5, susceptibility to electromagnetic fields conforming to IEC 61000-4-3, electrostatic discharge conforming to IEC 61000-4-2, electrical fast transient/burst immunity test conforming to IEC 61000-4-4 |
| Standards | IEC 61010-1 |
| Height | 192 mm |
| Ambient air temperature for operation | -20-70 °C |
