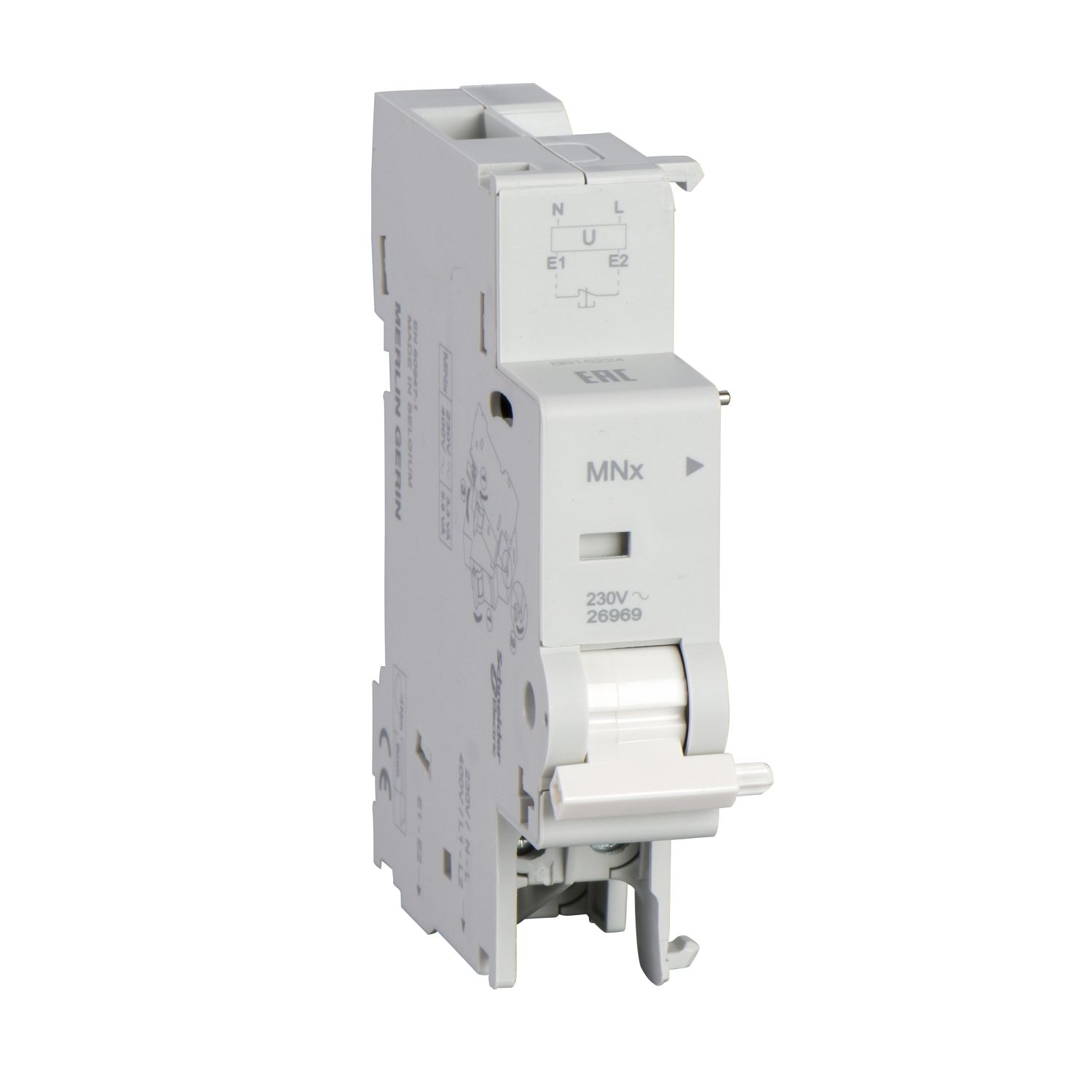

This Multi9 MNx electrical auxiliary is an undervoltage release. It is dedicated to Multi9 GFP, C60BP, C60SP, C60BPR. The width in 9mm pitches is 2. The Uc control circuit voltage is 230VAC. It can be mounted on a DIN rail for modular installation. The operating temperature is -25°C to 50°C. The storage temperature is -40°C to 85°C. This product complies with EN/IEC 60947-1 standard.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | MNx |
| Control type | with external feeding |
| Range | Multi9 |
| Product or component type | undervoltage release |
| 9 mm pitches | 2 |
| Range of product | GFP, C60BP, C60SP, C60BPR |
| [Uc] control circuit voltage | 230 V AC 50/60 Hz |
| Complementary | |
| Tightening torque | 1-1 N.m bottom |
| Depth | 68 mm |
| Width | 18 mm |
| Local signalling | action indicator |
| Mounting mode | fixed |
| Connections - terminals | clamp terminal (bottom) - 2 cable(s) 1.5-1.5 mm² (AWG 16) - rigid, clamp terminal (bottom) - 1 cable(s) 2.5-2.5 mm² (AWG 14) - rigid |
| Wire stripping length | 9 mm for bottom connection |
| Net weight | 0.073 kg |
| Comb busbar and distribution block compatibility | top: YES |
| Range compatibility | Multi 9 Multi9 C60H-DC C60H-DC, Multi 9 Multi9 GFP GFP, Multi 9 Multi9 C60 C60SP, Multi 9 Multi9 C60 C60BPR, Multi 9 Multi9 C60 C60BP |
| Mounting support | DIN rail |
| Height | 82.5 mm |
| Environment | |
| Ambient air temperature for storage | -40-85 °C |
| Pollution degree | 3 |
| Standards | EN/IEC 60947-1 |
| Ambient air temperature for operation | -25-50 °C |
| Product certifications | CSA, PCT, UL, UR |
