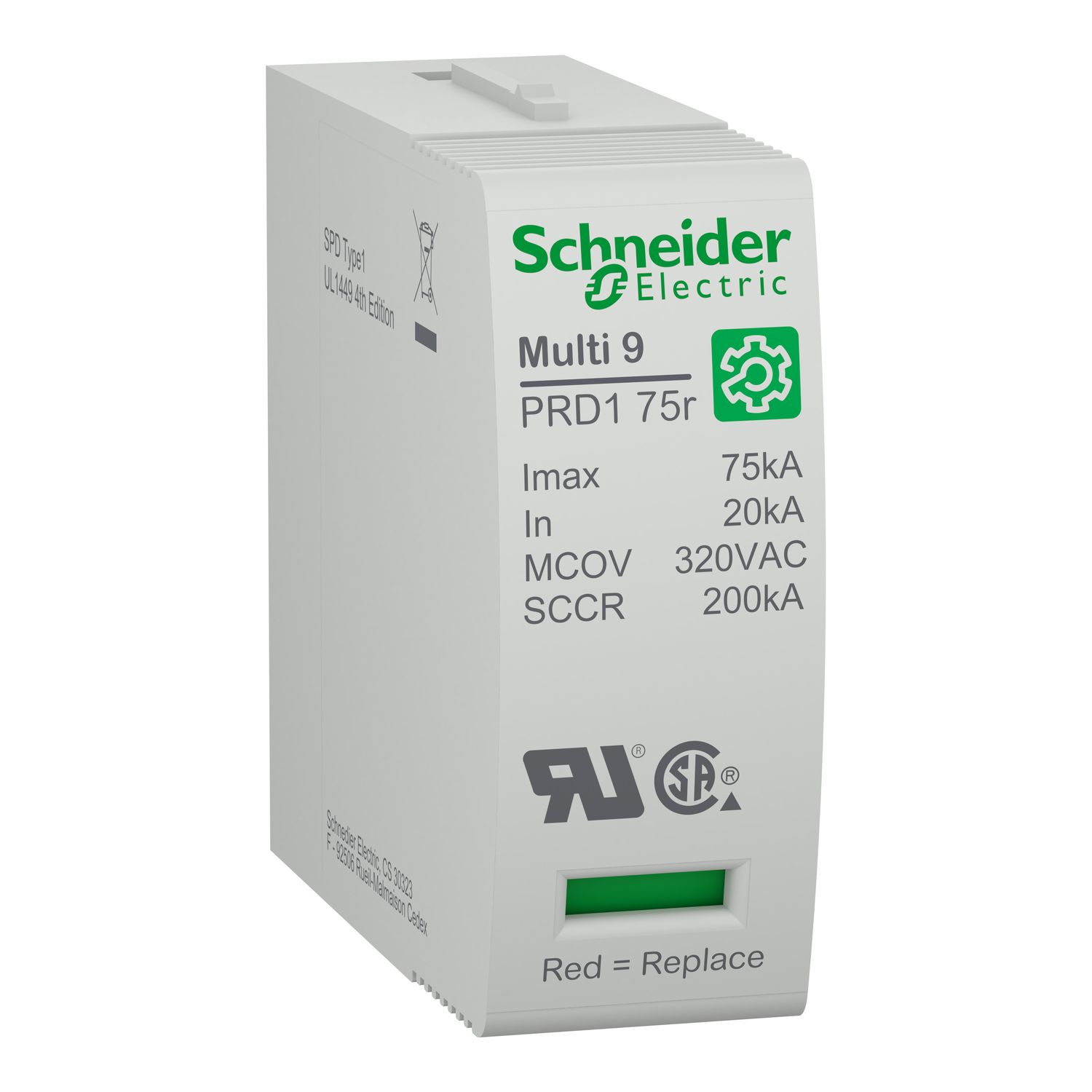

This Multi9 product is a cartridge for PRD1 75r surge protection device. The Imax maximum discharge current is 75kA. The In nominal discharge current is 20kA. The Uc maximum continuous operating voltage is 320VAC. The maximum Up voltage protection level is 1000V. It can be plugged into a surge protecting device module. Its width is 2 pitches of 9mm. The product color is light grey (RAL 7035). The dimensions are (W) 17.5mm x (H) 45mm x (D) 68.5mm. The degree of protection is NEMA 1. The operating temperature is -25°C to 60°C. The storage temperature is -40°C to 85°C. It is compliant withUL 1449 standard.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Poles description | 1P |
| Range | Multi9 |
| Product name | Multi9 PRD |
| Product or component type | cartridge |
| Complementary | |
| Depth | 68.5 mm |
| Market segment | OEM |
| Width | 17.5 mm |
| Colour | grey (RAL 7035) |
| Maximum [Up] voltage protection level | <1000 V |
| Response time | < 25 ns |
| Local signalling | mechanical indicator (green and red) |
| Mounting mode | plug-in |
| Net weight | 82 g |
| Maximum discharge current | 75 kA |
| [Uc] maximum continuous operating voltage | 320 V |
| 9 mm pitches | 2 |
| Nominal discharge current | 20 kA |
| Mounting support | into SPD module |
| Surge arrester class type | type 1 |
| Height | 45 mm |
| Surge arrester technology | MOV |
| Environment | |
| Operating altitude | 0...2000 m |
| IP degree of protection | NEMA 1 |
| Quality labels | UR, CSA |
| Relative humidity | 0-95 % |
| Ambient air temperature for storage | -40-85 °C |
| Standards | UL 1449 |
| Ambient air temperature for operation | -25-60 °C |
Only registered users can write reviews
Related products

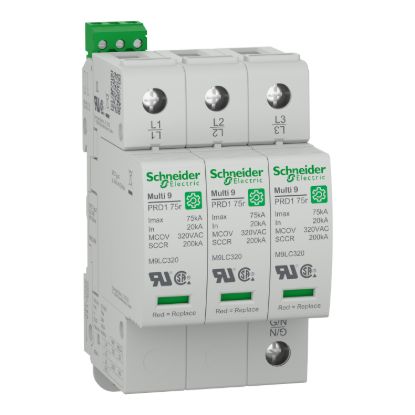

surge arrester, Multi9 PRD1 75r, 3P, 277/480 V
