Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Total number of 18 mm modules | 12 |

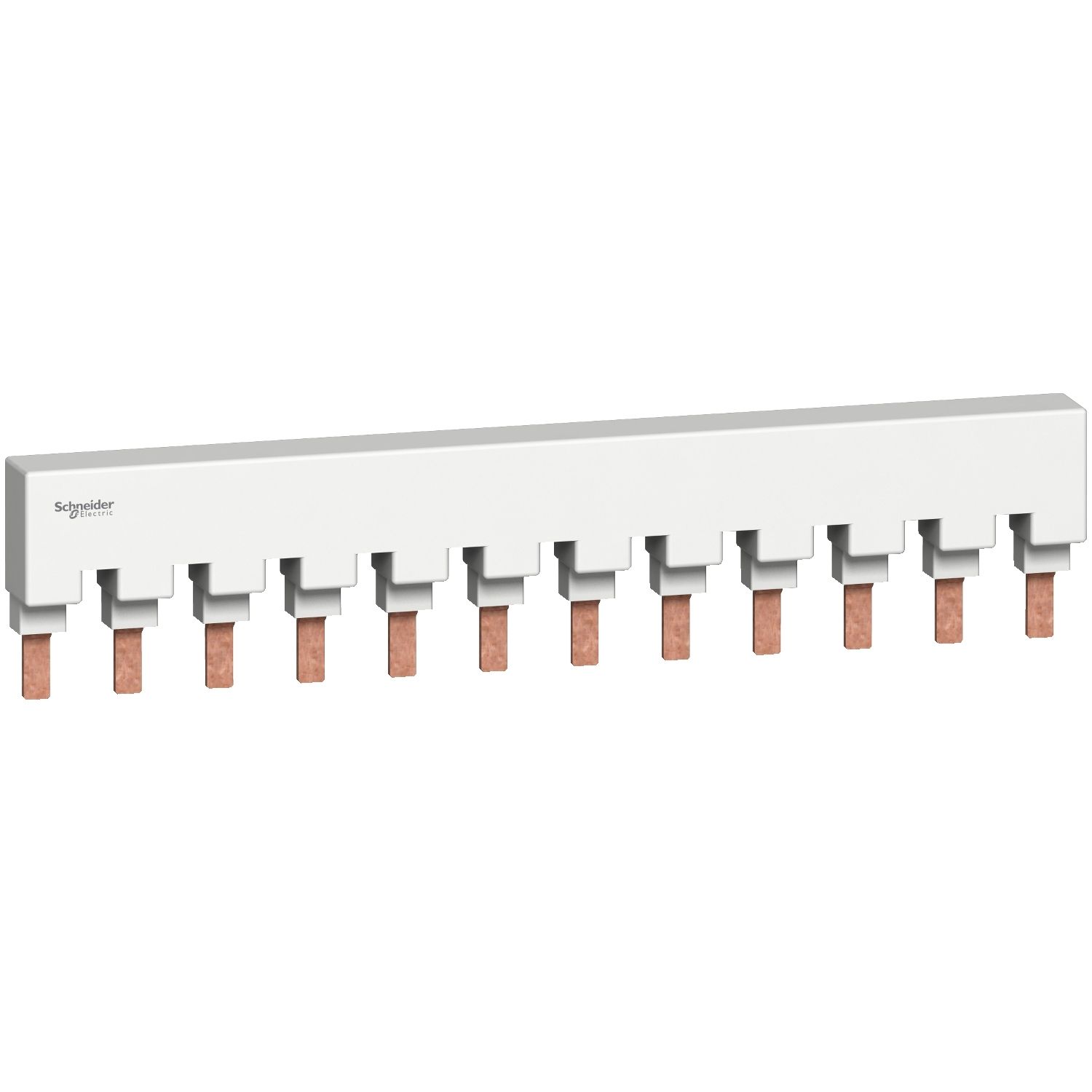

| Product or component type | comb busbar |
| Range | Multi9 |
| Mounting mode | horizontal |
| Lines description | 1L |
| Standards | UL 508, UL 489, EN/IEC 61439-1 |
| Accessory / separate part category | connection accessory |
| Complementary | |
| Connector type | tooth |
| Width | 216 mm |
| Mounting location | top on tunnel type terminals |
| Insulation | insulated |
| [Ue] rated operational voltage | 480 V AC 50/60 Hz Ph/Ph, 277 V AC 50/60 Hz Ph/N |
| Connection pitch | 18 mm |
| Colour | light grey (RAL 7035) |
| Poles configuration for 1 way | 1 x 1P |
| Range compatibility | Multi9 Multi9 C60BP |
| Number of ways | 12 ways 1 L |
| 9 mm pitches | 24 |
| Distance between way | 18 mm |
| [Ui] rated insulation voltage | 1000 V AC 50/60 Hz conforming to UL 508 |
| [Ie] rated operational current | 115 A at 40 °C |
| Device presentation | uncuttable |
| Environment | |
| IP degree of protection | IP20 with end-pieces and tooth covers |
| Pollution degree | 3 |
| Fire resistance | 960 °C ( 30 s ) conforming to IEC 60695-2-1 |
| Contractual warranty | |
| Warranty | 18 |
