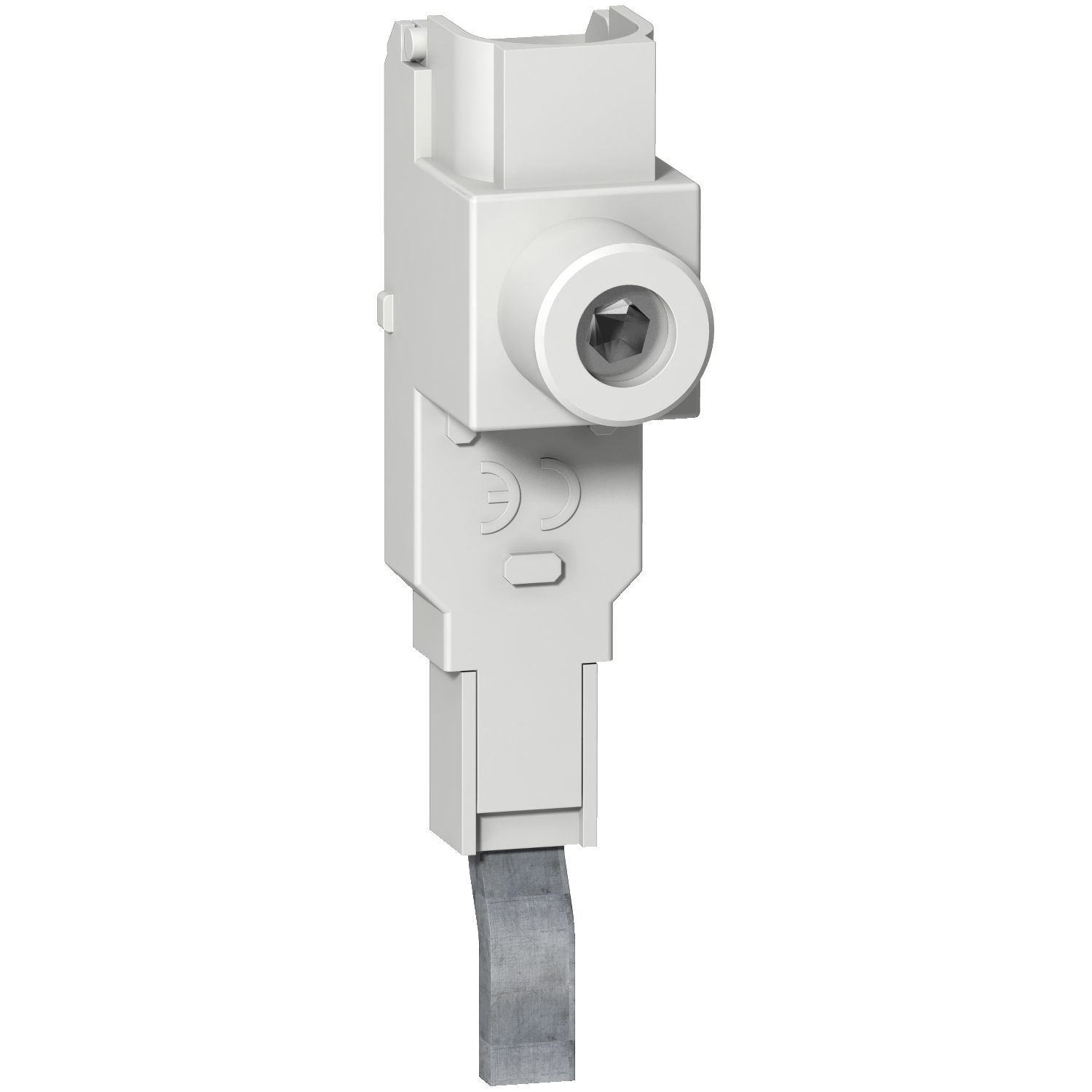

This Multi9 product is a set of 4 cable connectors. It accepts a rigid or flexible cable cross-section from 6mm² to 35mm². It is compatible with C60BP device. The tightening torque is 3.5N.m. The color of the device is white (RAL 9001).
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Range of product | Multi9 |
| Standards | UL 486E, EN/IEC 61439-1 |
| Product certifications | cURus, IEC |
| Accessory / separate part category | connection accessory |
| Product or component type | connector |
| Range | Multi9 |
| Quantity per set | set of 4 |
| Complementary | |
| [In] rated current | 63 A |
| Connections - terminals | screw terminal top connector6-35 mm² rigid, screw terminal top connector6-35 mm² flexible |
| Connection pitch | 18 mm |
| Range compatibility | Multi9 C60BP comb busbar |
| [Ui] rated insulation voltage | 1000 V |
| Distribution type | 2 L, 3 L, 1 L |
| Colour | white (RAL 9001) |
| Tightening torque | 3.5-3.5 N.m |
| Contractual warranty | |
| Warranty | 18 |
