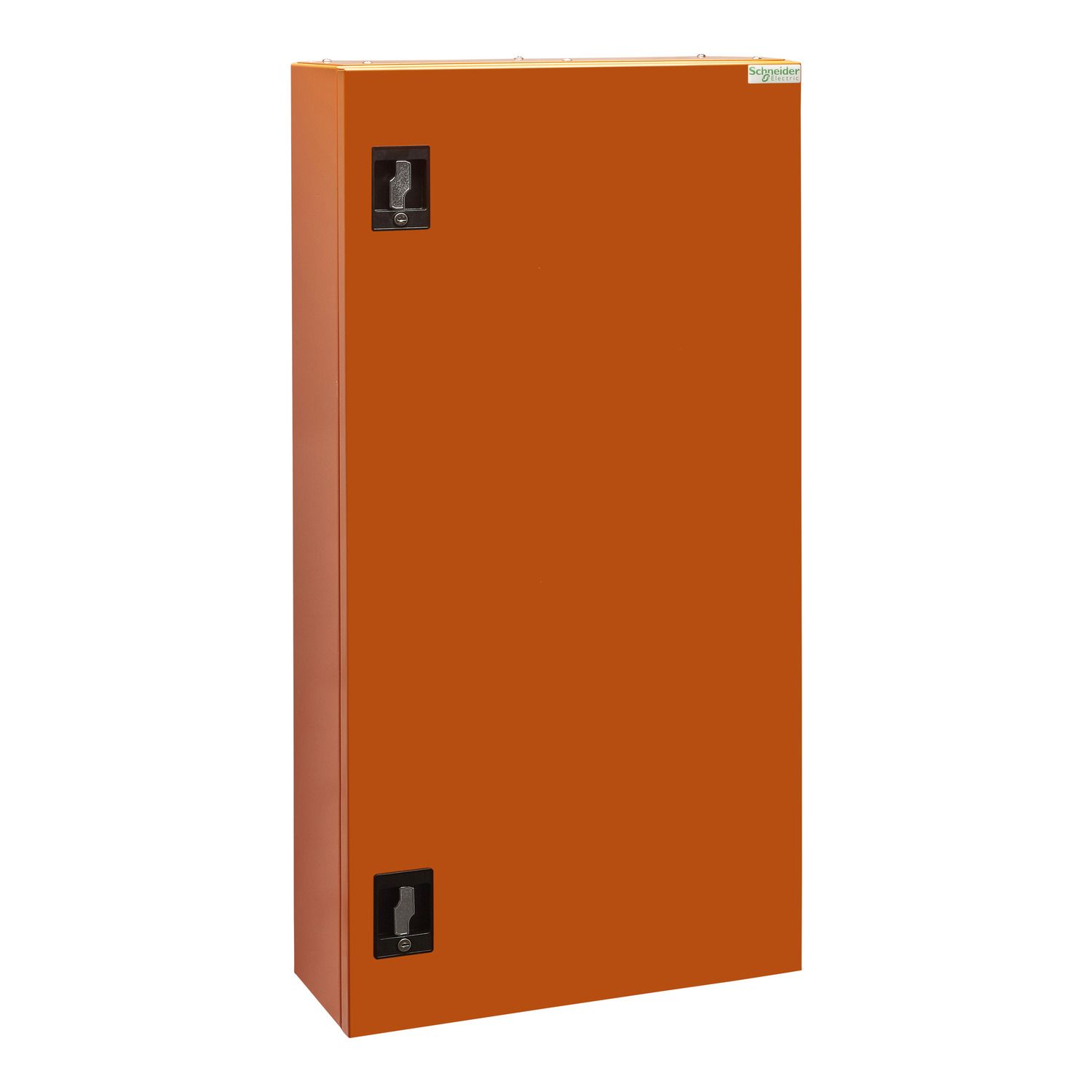

The Acti9 MB Encapsulated hybrid distribution board is surface mount. The rated current can be up to 250A.The number of poles is 72. [Ue] rated operational voltage is 415V 50Hz. [Ui] rated insulation voltage 500V. [Uimp] rated impulse withstand voltage 6kV. The color of the distribution board is orange. The enclosure material is made of steel. The dimensions are (W) 1200mm x (H) 580mm x (D) 225mm. The degree of protection is IP44. It is compliant to AS/NZS 61439 It supports the complinace to AS/NZS 3000 wiring regulations
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | MB |
| Device application | distribution |
| Door type | external plain |
| Colour | orange |
| Range | Acti9 |
| Product name | Acti9 encapsulated DB |
| Enclosure type | standard |
| Product or component type | distribution board |
| Provided equipment | DIN rail, 2 earth/neutral terminal block - top and bottom 165 A, SAU chassis, keys, removable gland plates, door, enclosure, circuit schedule card, pole filler |
| Complementary | |
| [Ue] rated operational voltage | 415 V |
| Depth | 235 mm |
| Width | 580 mm |
| [Ie] rated operational current | 250 A |
| Enclosure material | steel |
| Poles description | 3P + N |
| Number of poles | 12 x 27 mm, 60 x 18 mm |
| Enclosure mounting | surface |
| IP degree of protection | IP42 |
| [Ui] rated insulation voltage | 500 V |
| [Uimp] rated impulse withstand voltage | 6 kV |
| Breaking capacity | 25 kA |
| Height | 1200 mm |
| Network frequency | 50 Hz |
