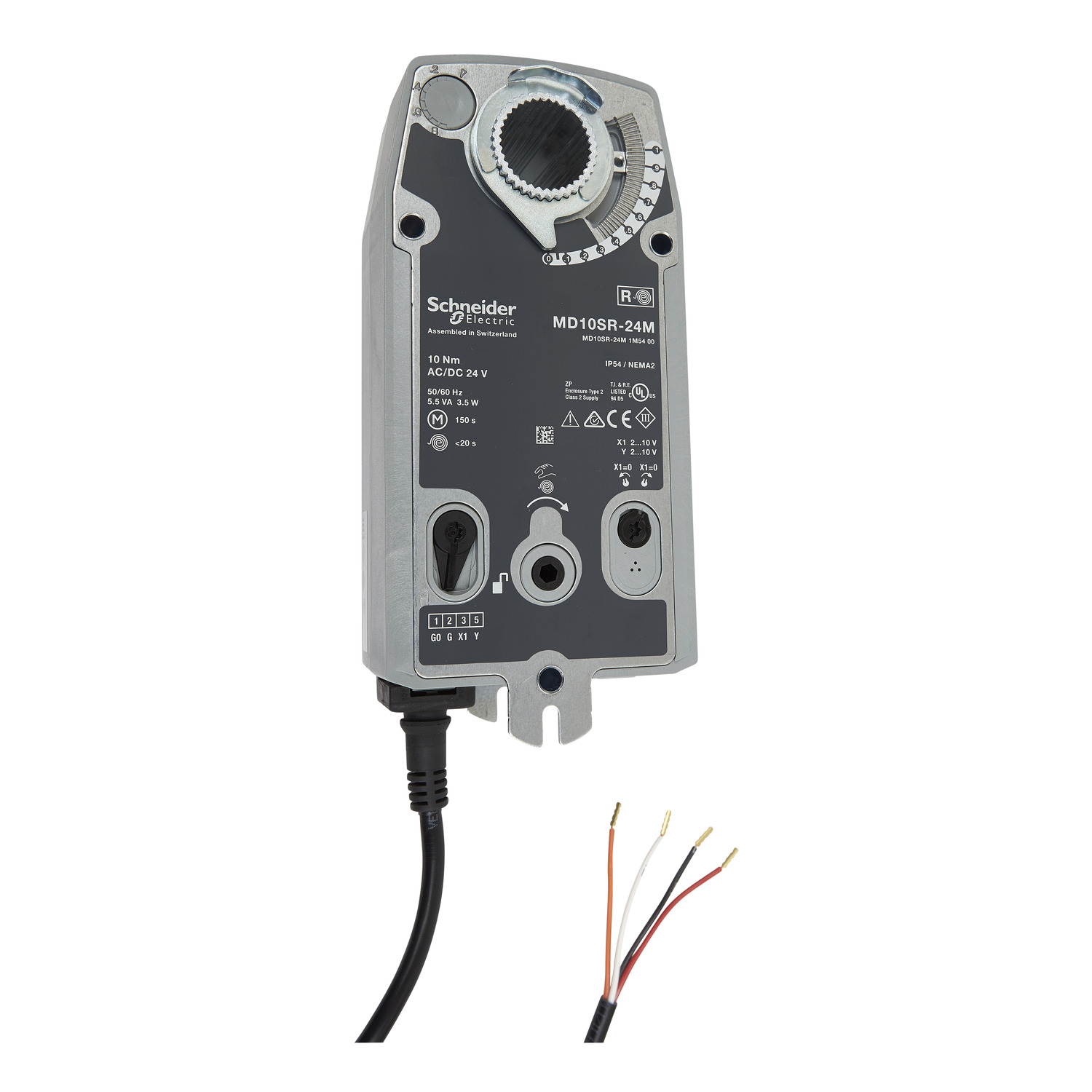

The MD10SR is a compact spring return damper actuator for the operation of ventilation dampers up to 2m² in building service installations. Power Supply: 24 Vac/Vdc. Modulating Control Signal, 2…10 Vdc. Torque: 1 Nm, IP 54 Enclosure rating. III Extra low Voltage. Adjustable angle of rotation: …Max 95°.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Hold-in power consumption in W | 2.5-2.5 W |
| IP degree of protection | IP43 |
| Relative humidity | 0-95 % RH, non-condensing |
| Ambient air temperature for storage | -40-80 °C |
| [Us] rated supply voltage | 24 V AC/DC |
| Electrical insulation class | class III |
| Product destination | dampers |
| Control type | automatic reset |
| Product or component type | actuator |
| Power consumption in VA | 5.5 VA AC |
| Transformer rated power in VA | 5.5 VA |
| Targeted region | Australia., Asia Pacific., Europe |
| Power consumption in W | 3.5 W |
| Actuator rotation | 95 ° |
| Spring return timing | 75 s |
| Analogue input range | 2...10 V DC |
| Actuator | rotary |
| Ambient air temperature for operation | -30-50 °C |
| Tightening torque | 1.1 N.m, 10 lb.in |
| Power loss return | spring return |
| Feedback signal | 2...10 V DC |
| Control signal | proportional/modulating |
| Lead length | 1 m |
| Actuator type | electric |
| Actuator product series | MD10SR |
| Position indicator | Stroke indicator on bracket |
| Rotational range adjustment | 95° maximum (limited by an adjustable end stop) |
