Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| [Ue] rated operational voltage | 220/230/240 V AC 50 Hz conforming to AS/NZS 3190 |
| Earth-leakage protection time delay | 40 ms |

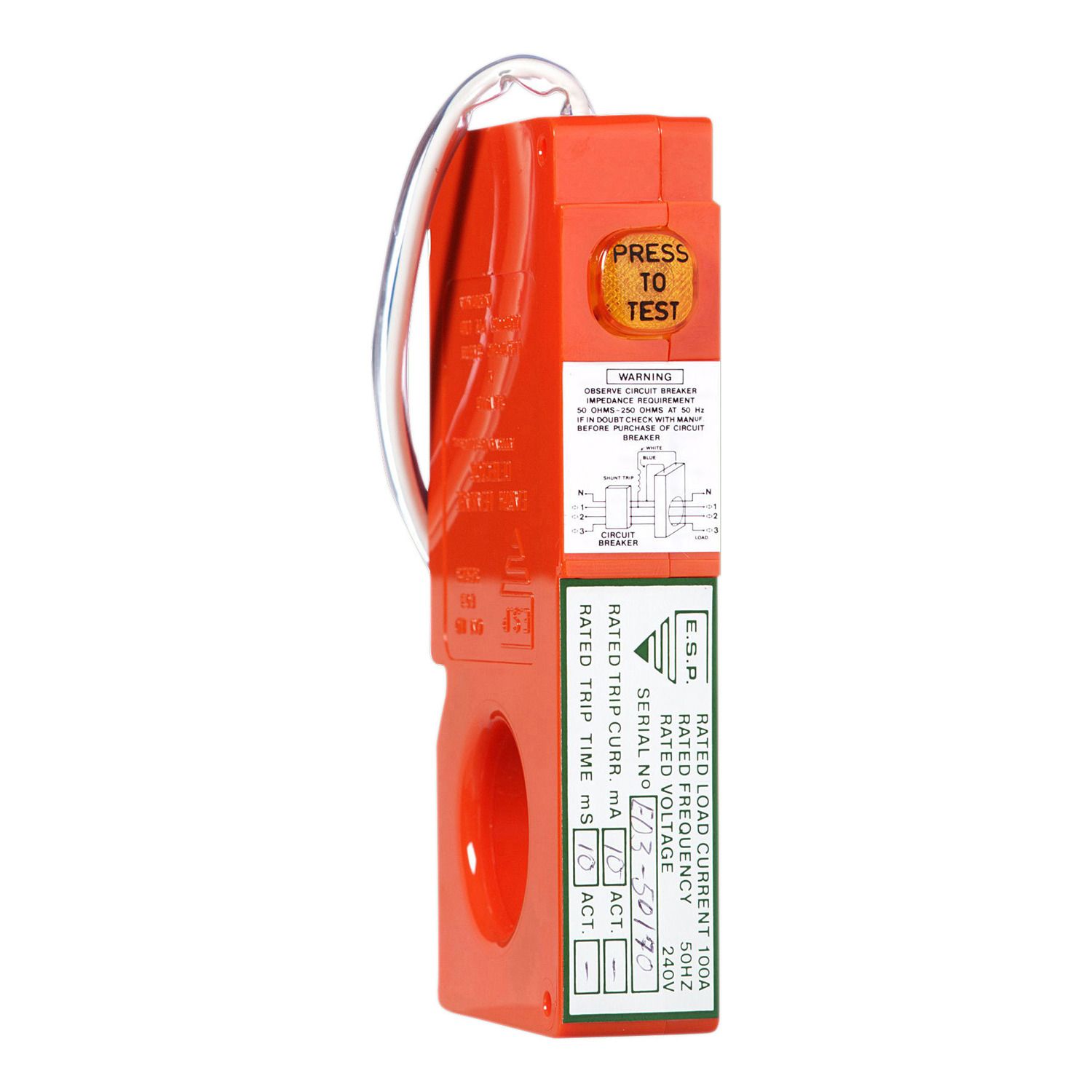

| Product or component type | residual current protection relay |
| Earth-leakage sensitivity | 10 mA conforming to AS/NZS 3190 |
| Earth-leakage protection class | type I |
| Network type | AC |
| Range of product | Series E03 |
| [In] rated current | 100 A at 40 °C |
| Product brand | Clipsal |
| Complementary | |
| Depth | 72 mm |
| Width | 27 mm |
| Colour | orange |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to AS/NZS 3190 |
| Local signalling | 1 neon |
| Protection type | MCB |
| [Ui] rated insulation voltage | 500 V DC conforming to AS/NZS 3190 |
| Residual current tripping technology | electromechanical |
| Control type | manual tripping test |
| Net weight | 0.23 kg |
| Surge current | 25 A |
| 9 mm pitches | 3 |
| Mounting support | bracket |
| Height | 141 mm |
| Network frequency | 50 Hz |
| Environment | |
| Product certifications | RCM conforming to AS/NZS 3190 |
| Standards | AS/NZS 3190 |
