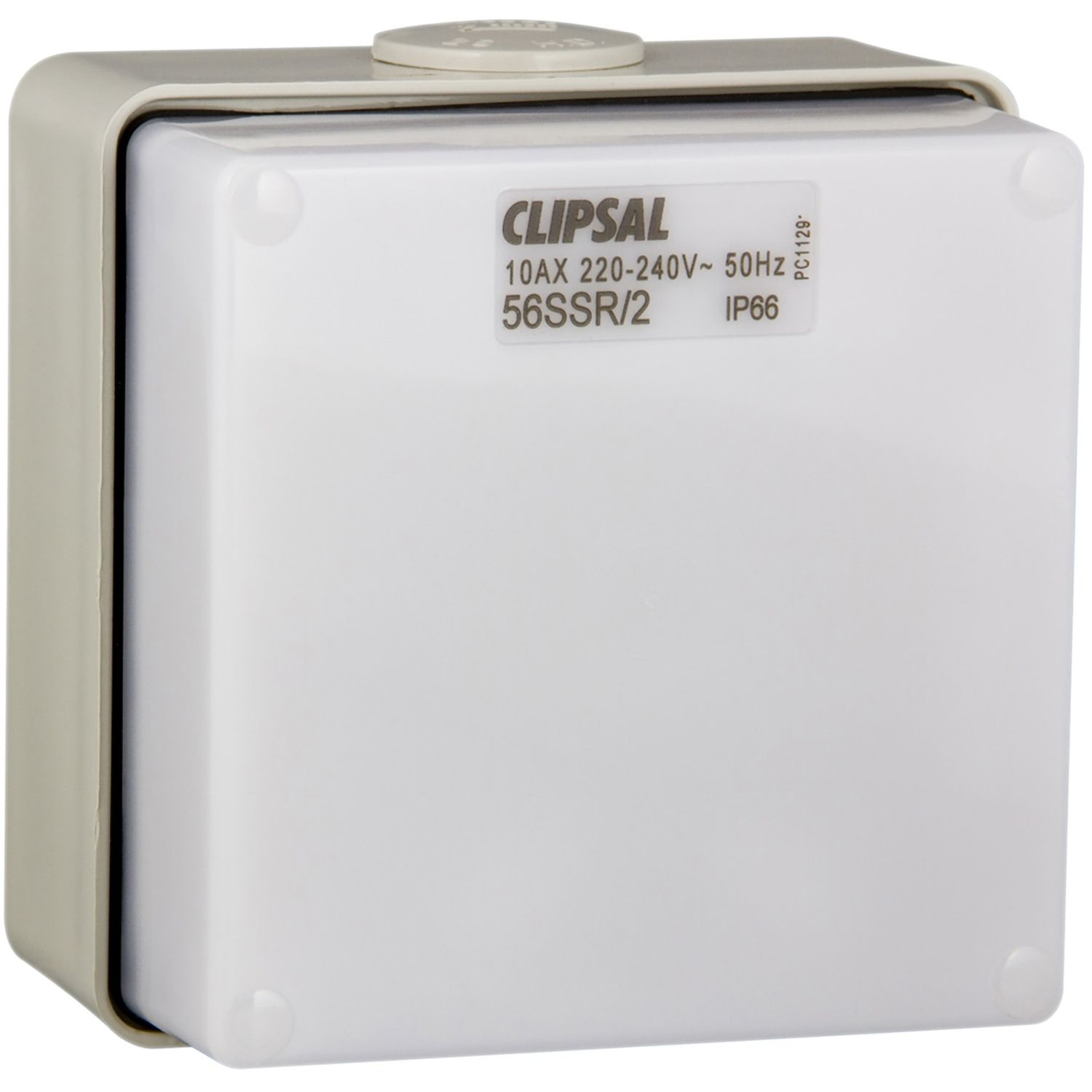

This Clipsal outdoor sunset switch is IP66 rated. Light level sensing range from 20 to 500 lux The timer setting range from 2 hours to 12 hours. The switching hysteresis time is 90 seconds It is 2 wire design and supports resistive and fluorescent loads current at 10AX maximum It comes in grey color and comply with the relevant IEC and AS/NZS standards
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device application | control |
| Colour | cover: opal, enclosure: grey (RAL 7035) |
| Device presentation | basic element |
| Range | Clipsal - 56 Series |
| Product or component type | sunset switch |
| Range of product | Series 56 |
| Product brand | Clipsal |
| Complementary | |
| Depth | 70 mm |
| Width | 101 mm |
| Quantity per set | set of 1 |
| Light intensity adjustment | 20-500 lux |
| Material | polycarbonate, PVC (polyvinyl chloride) |
| Local signalling | without |
| Time delay range | 2…12 h |
| Installation direction | horizontal, vertical |
| Control type | electronic |
| Colour code | GY |
| Type of packing | carton |
| Marking | without marking |
| Cable entry | 1 rear entry of 20-25 mm diameter |
| Surface finish | gloss |
| Fixing mode | by screws |
| Rated current | 10 AX |
| Device mounting | surface |
| Height | 101 mm |
| [Ue] rated operational voltage | 250 V AC 50 Hz |
| Environment | |
| IP degree of protection | IP66 |
| Standards | IEC 60669-2-1, AS/NZS 3100, AS/NZS 3133 |
| Ambient air temperature for operation | 45-45 °C |
