Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device application | power supply |
| Colour | yellow |
| Range | Clipsal - 56 Series |

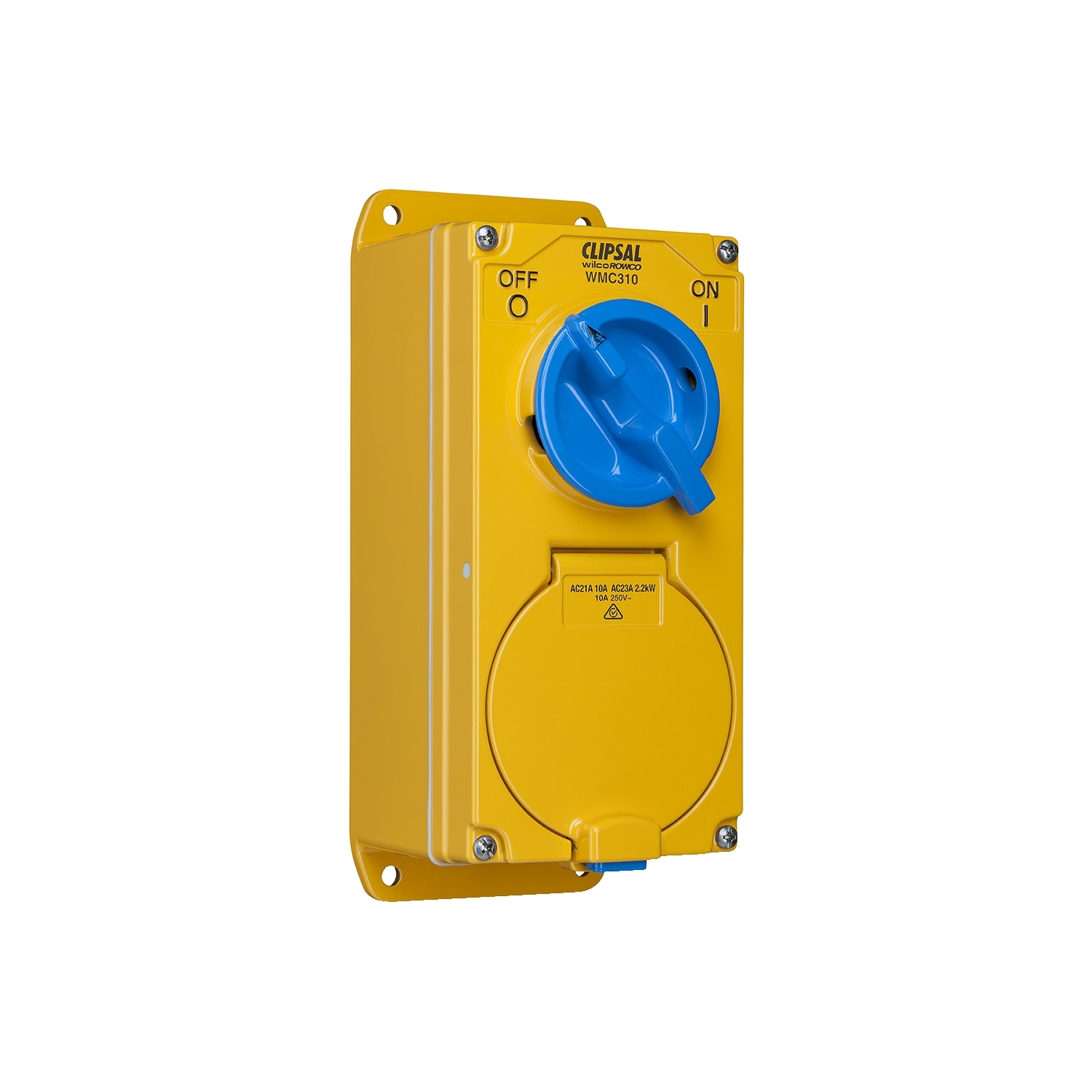

| Product or component type | socket-outlet |
| Product brand | Clipsal |
| Complementary | |
| Number of poles | 2 |
| Depth | 116 mm |
| Market segment | utility, industry, small commercial |
| Plug, socket category | low voltage |
| Width | 99 mm |
| Protection type | without protection |
| [In] rated current | 10 A |
| Electrical connection | industrial connector |
| Poles description | 1P + N + E |
| Material | aluminium: cover |
| Number of power socket outlets | 1 protective cover |
| Colour code | YL |
| Connections - terminals | screw terminals cable(s) 1.5-16 mm² |
| Outlet standard deviation | Australian/New Zealand |
| Plug, socket, control station shape | straight |
| Contacts material | pins: phosphor bronze |
| Device mounting | surface |
| [Ue] rated operational voltage | 250 V AC 50 Hz |
| Number of modules | 2 |
| Height | 201 mm |
| Targeted country | Australia |
| Environment | |
| IP degree of protection | IP66 conforming to AS 60529 |
| Standards | AS/NZS 3112, AS/NZS 4417.1 |
| Ambient air temperature for operation | -25-75 °C |
