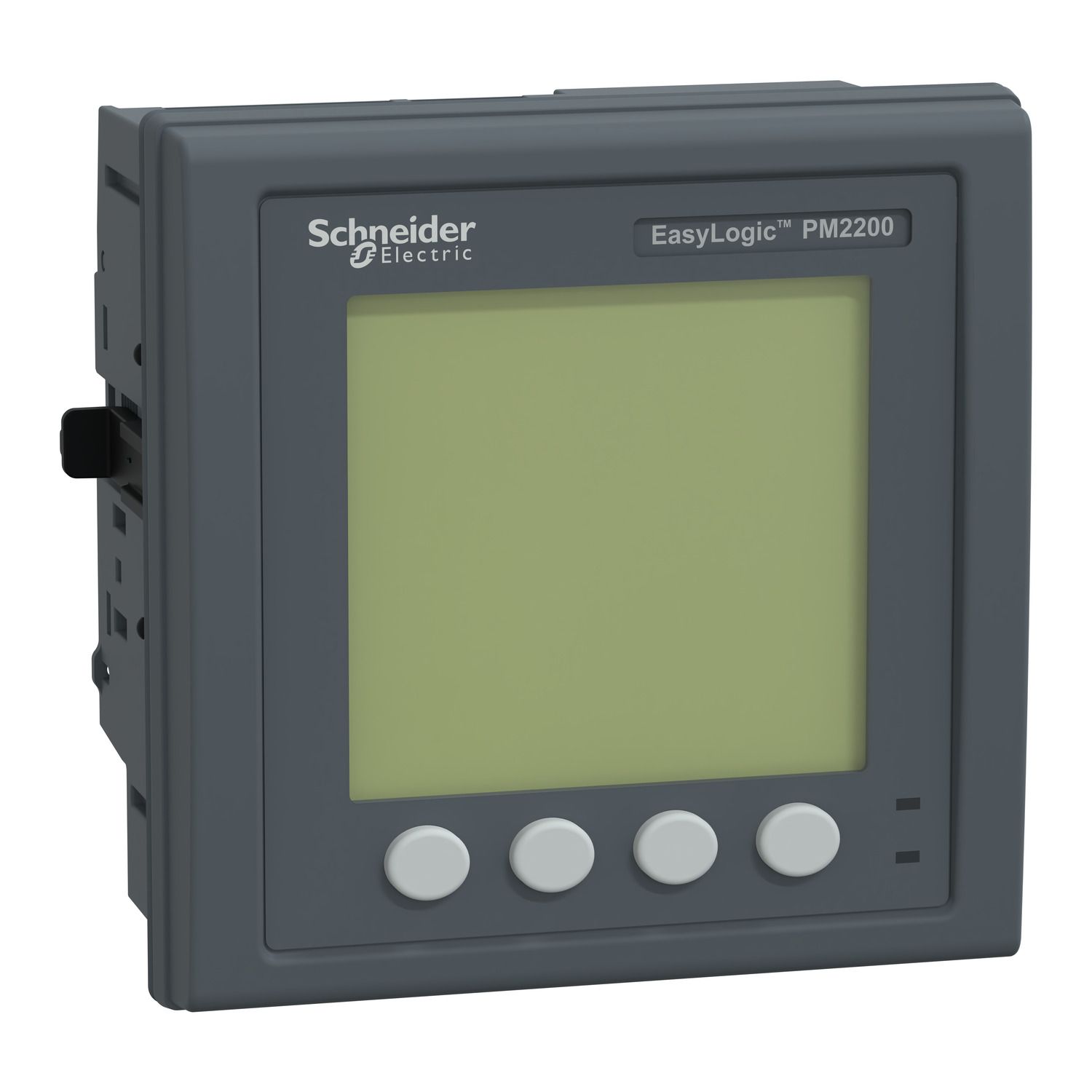

This device is a panel mount or flush mount power meter with a 96mm by 96mm bezel size having backlit LCD display of 128 by 128 pixels. The meter measures active energy as per accuracy class Class 1.0 complying to IEC 62053-21 standard with sampling rate of 64 samples per cycle. Able to measures all three vectors of power and energy such as Active, Apparent & Reactive beside Voltages, Current, Frequency and Power Factor. Plus the total Harmonic Distortion and Individual harmonics up to 15th Harmonic order. The meter will function in either 50Hz or 60Hz network frequency and accepts universal control power voltages ranging from 44 to 300 V Line to Neutral AC or DC voltages. Current is measured with the help of a 3-in-1 current transducer connected to the device with a RJ45 connector. it supports up to 13 different types of wiring schemes under Single Phase, Two Phase or Three Phase configuration types. The range of measurement voltage between Phases is 35 to 480 V Line to Line AC at 45 to 65 Hz while it is 20 to 277 V between Line and Neutral. It is having RS485 communication port over Modbus RTU protocol. Product dimensions are as follows: width 3.78 in (96 mm), depth 2.16 in (54 mm), height 3.78 in (96 mm) and product weight 10.58 oz (300 g).
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | PM2220 |
| Range | EasyLogic |
| Product name | EasyLogic PM2200 |
| Product or component type | power meter |
| Complementary | |
| Maximum power consumption in VA | 6 VA at 277 V AC |
| Accuracy class | class 5 harmonic distorsion (I THD & U THD), class 1 reactive energy conforming to IEC 62053-24, class 1 active energy conforming to IEC 62053-21 |
| Metering type | calculated neutral current, unbalance current, active power P, P1, P2, P3, demand power P, Q, S, peak demand power PM, QM, SM, apparent power S, S1, S2, S3, peak demand currents, current I, I1, I2, I3, reactive power Q, Q1, Q2, Q3, active, reactive, apparent energy (signed, four quadrant), voltage U, U21, U32, U13, V, V1, V2, V3 |
| Device application | power monitoring, sub billing |
| Measurement category | category II 480-600 V, category III 480-480 V |
| Display type | backlit LCD |
| Width | 96 mm |
| Mounting position | vertical |
| Analogue input type | voltage (impedance > 5 MOhm), current (impedance <= 0.3 mOhm) |
| Display colour | monochrome |
| Cybersecurity | enable/disable communication ports |
| [In] rated current | 1 A, 5 A |
| Data recording | min/max for 8 parameters, time stamping |
| Refresh time | configurable from 1 to 60 min |
| Compatibility code | PM2220R |
| Mounting support | framework |
| Measurement accuracy | frequency +/- 0.05 %, current +/- 0.5 %, power factor +/- 0.01, voltage +/- 0.5 %, active power +/- 1 %, reactive energy +/- 1 %, active energy +/- 1 %, apparent power +/- 1 % |
| Mounting mode | clip-on |
| [Us] rated supply voltage | 44...277 V DC +/- 10 %, 44...277 V AC 45...65 Hz +/- 10 % |
| Flame retardance | V-0 conforming to UL 94 |
| Function available | alarm, real time clock |
| Control type | 4 x button |
| Information displayed | harmonic amplitude, unbalanced in %, reactive power, apparent power, active power, power factor, harmonic distortion, energy consumption, frequency, current, voltage, demand power (present value), demand power (past value), demand current (present value), demand current (past value) |
| Electrical insulation class | class II, double insulation |
| Connections - terminals | voltage inputs: screw connection (top) 4 , current transformer: RJ45 connector1 |
| Local signalling | green LED: module operation and integrated communication, red LED: output signal 1...9999000 pulse/ k_h (kWh, kVAh, kVARh) |
| Measurement current | 5-6000 mA |
| Depth | 61.64 mm embedded: , 76.09 mm total: |
| Provided equipment | 1 x installation guide |
| Tamperproof of settings | protected by access code |
| Net weight | 300 g |
| Material | polycarbonate |
| Number of inputs | 0 |
| Display resolution | 128 x 128 pixels |
| Frequency measurement range | 45-65 Hz |
| Communication service | remote monitoring |
| Communication port protocol | Modbus RTU at 4800 bps, 9600 bps, 19200 bps, 38.4 Kbps even/odd or none - 2 wires, insulation 2500 V |
| Type of measurement | active and reactive energy total, apparent energy total, power factor min/max, avg, total voltage harmonic distortion THD (U) per phase, total current harmonic distortion THD (I) per phase, frequency min/max, avg, voltage min/max, avg, current min/max, avg, active and reactive power min/max, total, apparent power min/max, total |
| Product certifications | C-Tick, EAC, RCM, cULus conforming to CSA C22.2 No 61010-1, cULus conforming to UL 61010-1, CE conforming to IEC 61010-1 |
| User language | English, Russian, Spanish, Portuguese, French, Chinese, German |
| Number of outputs | 0 |
| Maximum power consumption in W | 2 W at 277 V (power lines (DC)), 3.3 W (power lines (AC)) |
| Sampling rate | 64 samples/cycle |
| Measurement voltage | 480-999000 V AC 50/60 Hz with external VT, 20-277 V AC 50/60 Hz between phase and neutral, 35-480 V AC 50/60 Hz between phases |
| Height | 96 mm |
| Power quality analysis | up to the 15th harmonic, total harmonic distortion |
| Communication port support | screw terminal block: RS485 |
| Network frequency | 50 Hz, 60 Hz |
| Environment | |
| Operating altitude | <= 2000 m |
| Overvoltage category | III |
| IP degree of protection | IP30 body: conforming to IEC 60529, IP54 front: conforming to IEC 60529 |
| Service life | 7 year(s) |
| Relative humidity | 5-95 % at 50-50 °C |
| Ambient air temperature for storage | -25-70 °C |
| Pollution degree | 2 |
| Electromagnetic compatibility | emission tests conforming to FCC part 15 class A, voltage dips and interruptions immunity test conforming to IEC 61000-4-11, magnetic field at power frequency conforming to IEC 61000-4-8, conducted RF disturbances conforming to IEC 61000-4-6, surge immunity test conforming to IEC 61000-4-5, electrical fast transient/burst immunity test conforming to IEC 61000-4-4, radiated radio-frequency electromagnetic field immunity test conforming to IEC 61000-4-3, electrostatic discharge conforming to IEC 61000-4-2 |
| Ambient air temperature for operation | -10-60 °C |
