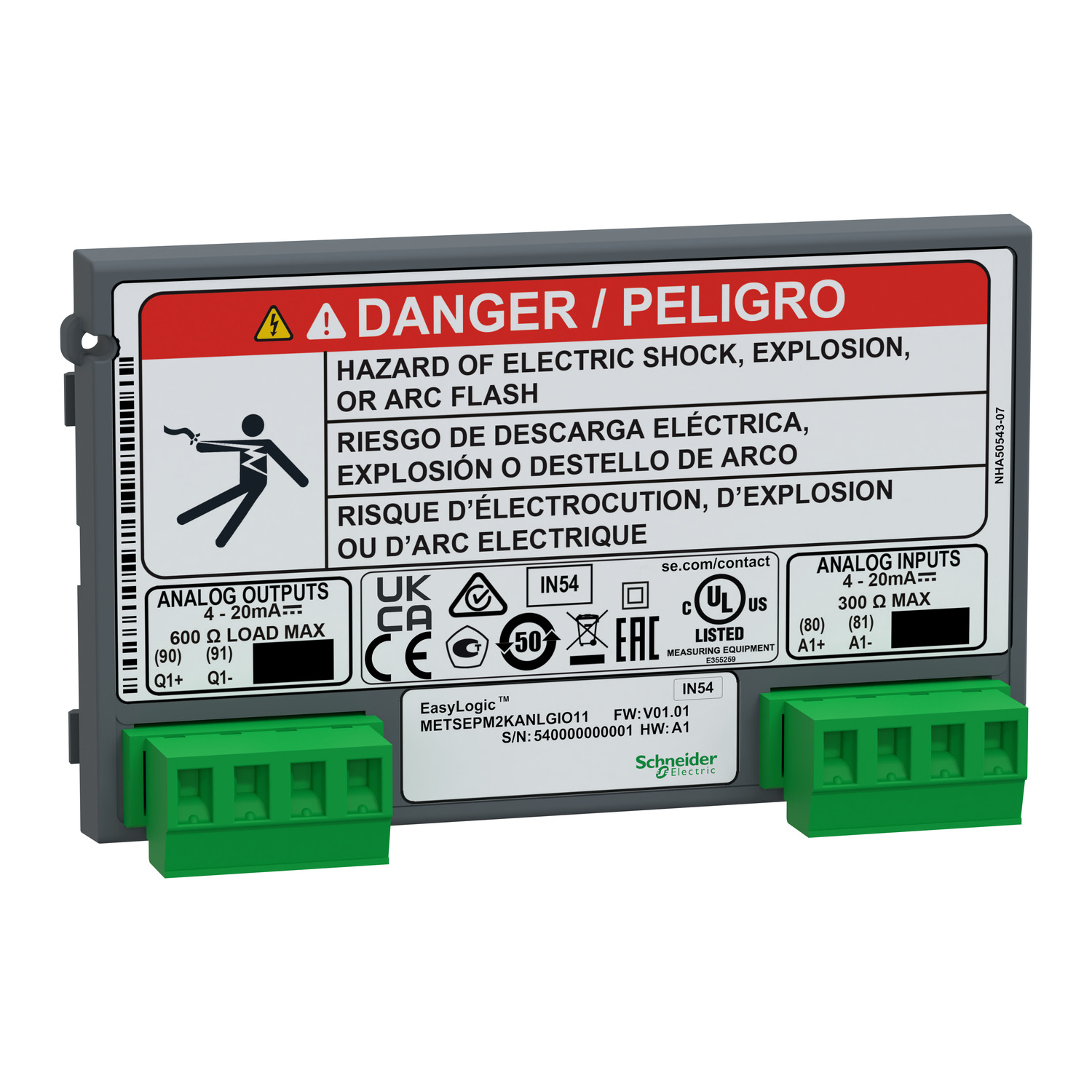

Optional Input Output module compatible with EasyLogic PM2130, PM2230 devices that provides additional analog inputs outputs. This analog module provides 1 analog input that support 4 to 20mA. Plus 1 analog output that can be assiciated to one out of 40 instantaneous parameters. The analog outputs support 4 to 20mA. Analog inputs and outputs are setted-up and configured through ION set-up software utility tool. The option modules are attached to the back of the meter providing connection for control power and interfacing bus. The EasyLogic PM2130 and PM2230 devices allow a maximum of 1 input/output option modules per meter.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | PM2K1AIAO |
| Device application | optional expansion module |
| Range | EasyLogic |
| Product or component type | I/O module |
| Range compatibility | EasyLogic EasyLogic PM2200 PM2230, EasyLogic EasyLogic PM2100 PM2130 |
| Complementary | |
| Depth | 14.6 mm |
| Width | 90.5 mm |
| Analogue input type | analog input (impedance <= 300 Ohm) |
| Input voltage | 12...30 V AC |
| Number of inputs | 1 analog 4...20 mA |
| Net weight | 50 g |
| [Ui] rated insulation voltage | 2500 V |
| Analogue output type | analog output, impedance <600 Ohm |
| Output voltage | 12 V AC |
| Number of outputs | 1 analog, 4...20 mA |
| Height | 53 mm |
| Environment | |
| Ambient air temperature for storage | -25-70 °C |
| Ambient air temperature for operation | -10-60 °C |
