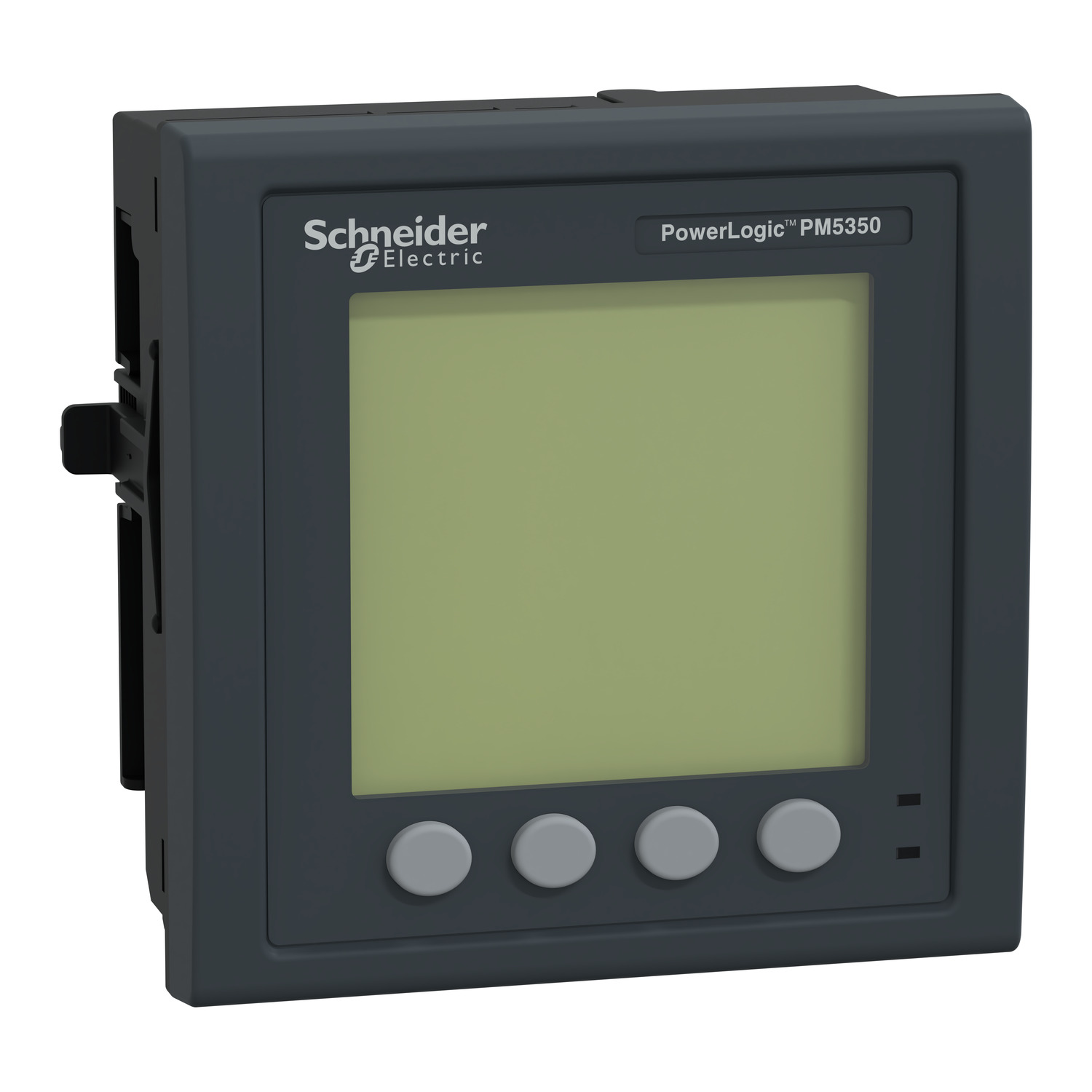

This device is a flush-mount energy meter with a 96mm by 96mm backlit LCD display. The meter provides Class 0.5S accuracy per IEC 62053-22 standard and 32 samples per cycle. The meter will measure Energy, Active and Reactive Power, Voltage, Current, Frequency, Power Factor and up to 15th Harmonic. Include a non-volatile memory for several parameters and alarms. The meter will function in a 50Hz or 60Hz network and accepts supply voltage ranging from 85 to 265 VAC and 100 to 300 VDC. Line rated current for this meter is 1A or 5A input and will support Single Phase and Neutral, Three Phase, or Three Phase and Neutral configurations. The range of measurement voltage between Phases is 20V AC to 480V AC, CAT III or 20V AC to 690V AC, CAT II at 45 Hz to 70 Hz. The range of measurement voltage between Phase and Neutral is 20V AC to 277V AC, CAT III or 20V AC to 400V AC, CAT II at 45 Hz to 70 Hz. Communication protocol is Modbus RTU and ASCII 2 wires with RS485 port support. The meter also has four digital inputs and dual relay outputs. Product dimensions are as follows: width 3.78 inches (96 millimetres), depth 2.24 inches (57 millimetres), height 3.78 inches (96 millimetres) and product weight 8.8 onces (250 g).
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | PM5350 |
| Range | PowerLogic |
| Market segment | industry network management: sub feeder, healthcare network management: sub feeder, data center network management: sub feeder, buildings multi-site network management: sub feeder, buildings large building network management: sub feeder, buildings medium building network management: sub feeder, buildings medium building network management: main incomer, buildings small building network management: sub feeder, buildings small building network management: main incomer, industry cost management: cost allocation: sub feeder, industry cost management: cost allocation: main incomer, healthcare cost management: cost allocation: sub feeder, healthcare cost management: cost allocation: main incomer, data center cost management: cost allocation: sub feeder, data center cost management: cost allocation: main incomer, buildings multi-site cost management: cost allocation: sub feeder, buildings multi-site cost management: cost allocation: main incomer, buildings large building cost management: cost allocation: sub feeder, buildings large building cost management: cost allocation: main incomer, buildings medium building cost management: cost allocation: sub feeder, buildings medium building cost management: cost allocation: main incomer, buildings small building cost management: cost allocation: sub feeder, buildings small building cost management: cost allocation: main incomer, industry cost management: billing: sub feeder, industry cost management: billing: main incomer, healthcare cost management: billing: sub feeder, healthcare cost management: billing: main incomer, data center cost management: billing: sub feeder, data center cost management: billing: main incomer, buildings multi-site cost management: billing: sub feeder, buildings multi-site cost management: billing: main incomer, buildings large building cost management: billing: sub feeder, buildings large building cost management: billing: main incomer, buildings medium building cost management: billing: sub feeder, buildings medium building cost management: billing: main incomer, buildings small building cost management: billing: sub feeder, buildings small building cost management: billing: main incomer |
| Product name | PowerLogic PM5350 |
| Product or component type | power meter |
| Complementary | |
| Device application | power monitoring |
| Display type | monochrome graphic LCD |
| Measurement accuracy | reactive power +/- 2 %, apparent energy +/- 0.5 %, apparent power +/- 0.5 %, active power +/- 0.5 %, reactive energy +/- 2 %, active energy +/- 0.5 %, power factor +/- 0.005, frequency +/- 0.05 %, voltage +/- 0.3 %, current +/- 0.3 % |
| Mounting mode | flush-mounted |
| [Us] rated supply voltage | 100...300 V DC, 85...265 V AC 45...65 Hz |
| Information displayed | tariff (4) |
| Depth | 44 mm |
| Frequency measurement range | 45-70 Hz |
| Communication port protocol | Modbus RTU and ASCII at 9.6, 19.2 and 38.4 kbauds, JBUS |
| Type of measurement | reactive power, active power, apparent power, phase angle, energy, power factor, frequency, voltage, current |
| Product certifications | cULus, CE |
| Standards | IEC 61010-1 |
| Height | 96 mm |
| Power quality analysis | total harmonic distortion, total demand distortion |
| Communication port support | terminal block: RS485 |
| Maximum power consumption in VA | 11.9 VA |
| Accuracy class | class 0.5 power conforming to IEC 61557-12, class 2 reactive energy conforming to IEC 61557-12, class 2 reactive energy conforming to IEC 62053-23, class 0.5 active energy conforming to IEC 61557-12, class 0.5S active energy conforming to IEC 62053-22 |
| Width | 96 mm |
| Analogue input type | voltage (impedance 10 MOhm), current 0.05...9 A (impedance <= 0.3 mOhm) |
| [In] rated current | 1 A, 5 A |
| Data recording | alarms, min/max of instantaneous values |
| Poles description | 3P, 3P + N, 1P + N |
| Connections - terminals | Ethernet network: RJ45 connector, relay output: screw terminal block4 , input/output circuit: screw terminal block6 , current transformer: screw terminal block6 , control circuit: screw terminal block2 , voltage circuit: screw terminal block4 |
| Measurement current | 5-9000 mA |
| Type of installation | for indoor use in a stationary panel |
| Net weight | 0.25 kg |
| Number of inputs | 4 digital |
| Display resolution | 6 lines |
| Ride-through time | 50 ms 125 V DC typical, 400 ms 230 V AC typical, 100 ms 120 V AC typical |
| Number of outputs | 2 relay |
| Sampling rate | 32 samples/cycle |
| Measurement voltage | 20-277 V AC phase to neutral, 35-480 V AC 45...65 Hz phase to phase |
| Network frequency | 60 Hz, 50 Hz |
| Environment | |
| Compatibility code | PM5350 |
| IP degree of protection | IP54 display: conforming to IEC 60529, IP30 rear: conforming to IEC 60529 |
| Relative humidity | 5-95 % at 50-50 °C non-condensing |
| Ambient air temperature for storage | -40-85 °C |
| Pollution degree | 2 |
| Electromagnetic compatibility | limits for harmonic current emissions conforming to IEC 61000-3-2, conducted and radiated emissions class A conforming to EN 55011, immunity to impulse waves conforming to IEC 61000-4-12, conducted RF disturbances conforming to IEC 61000-4-6, 1.2/50 µs shock waves immunity test conforming to IEC 61000-4-5, electrical fast transient/burst immunity test conforming to IEC 61000-4-4, susceptibility to electromagnetic fields conforming to IEC 61000-4-3, electrostatic discharge conforming to IEC 61000-4-2, limitation of voltage changes, voltage fluctuations and flicker in low-voltage conforming to IEC 61000-3-3 |
| Ambient air temperature for operation | -25--20 °C (with reduced performance) display, -20-70 °C display, -25-70 °C meter |
| Overvoltage category | III |
| Operating altitude | <= 3000 m |
