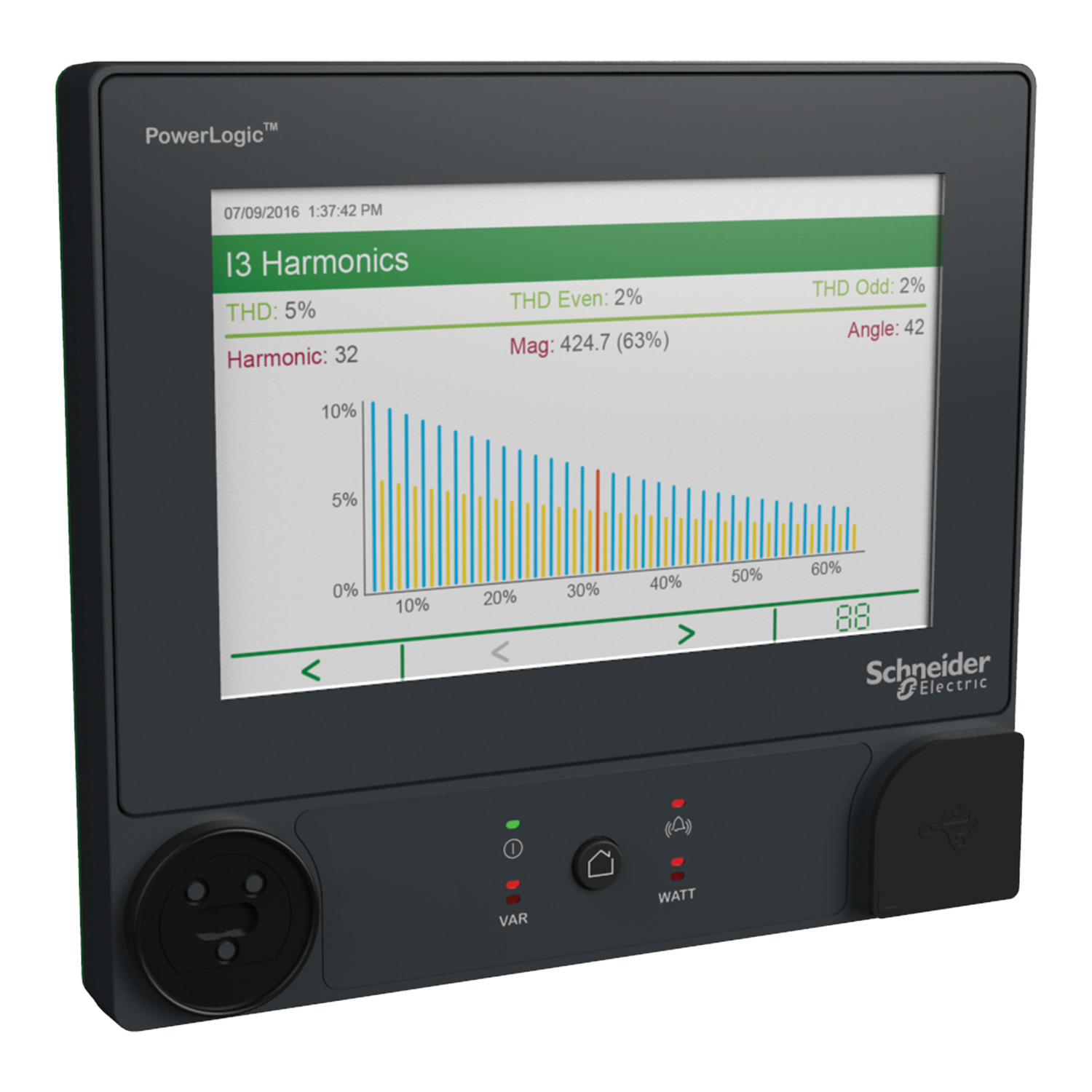

Display (RD192) compatible with PowerLogic ION9000 series. 192mm by 192mm color graphical LCD with touchscreen interface. Information avaiable from the display: power, energy consumption, harmonics, frequency, voltage, current, alarms and input output status. Viewable area: LCD touchscreen, 7 inches, 800 pixels by 480 pixels. Panel mounting using a 30 mm push-button hole or 1/4 DIN cutout. Ingress Protection IP65 (UL type 12) rating.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device application | human-machine dialogue application |
| Display type | LCD touch screen |
| Range | PowerLogic |
| Product or component type | remote display |
| Range compatibility | PowerLogic PowerLogic ION9000 |
| Complementary | |
| Projecting depth | 27.5 mm |
| Width | 197 mm |
| Display colour | color |
| Display size | 7 inch |
| Mounting support | framework remote display |
| Local signalling | alarm: LED (red), status: LED (green) |
| Mounting mode | flush-mounted |
| Control type | touch screen, 1 x push-button |
| Connector type | RJ45 |
| Messages display capacity | graphic objects (bargraph, button, light...) |
| Provided equipment | mounting hardware |
| Net weight | 300 g |
| Display resolution | 800 x 480 pixels |
| Height | 175 mm |
| Information displayed | I/O status, system alarm, current, frequency, harmonic distortion, power, voltage, energy consumption |
| Environment | |
| Operating altitude | 0...3000 m |
| IP degree of protection | IP65 conforming to IEC 60529 |
| Relative humidity | 5-95 % |
| Ambient air temperature for storage | -40-85 °C |
| Ambient air temperature for operation | -25-60 °C |
| IK degree of protection | IK08 |
| Product certifications | IEEE, IEC |
