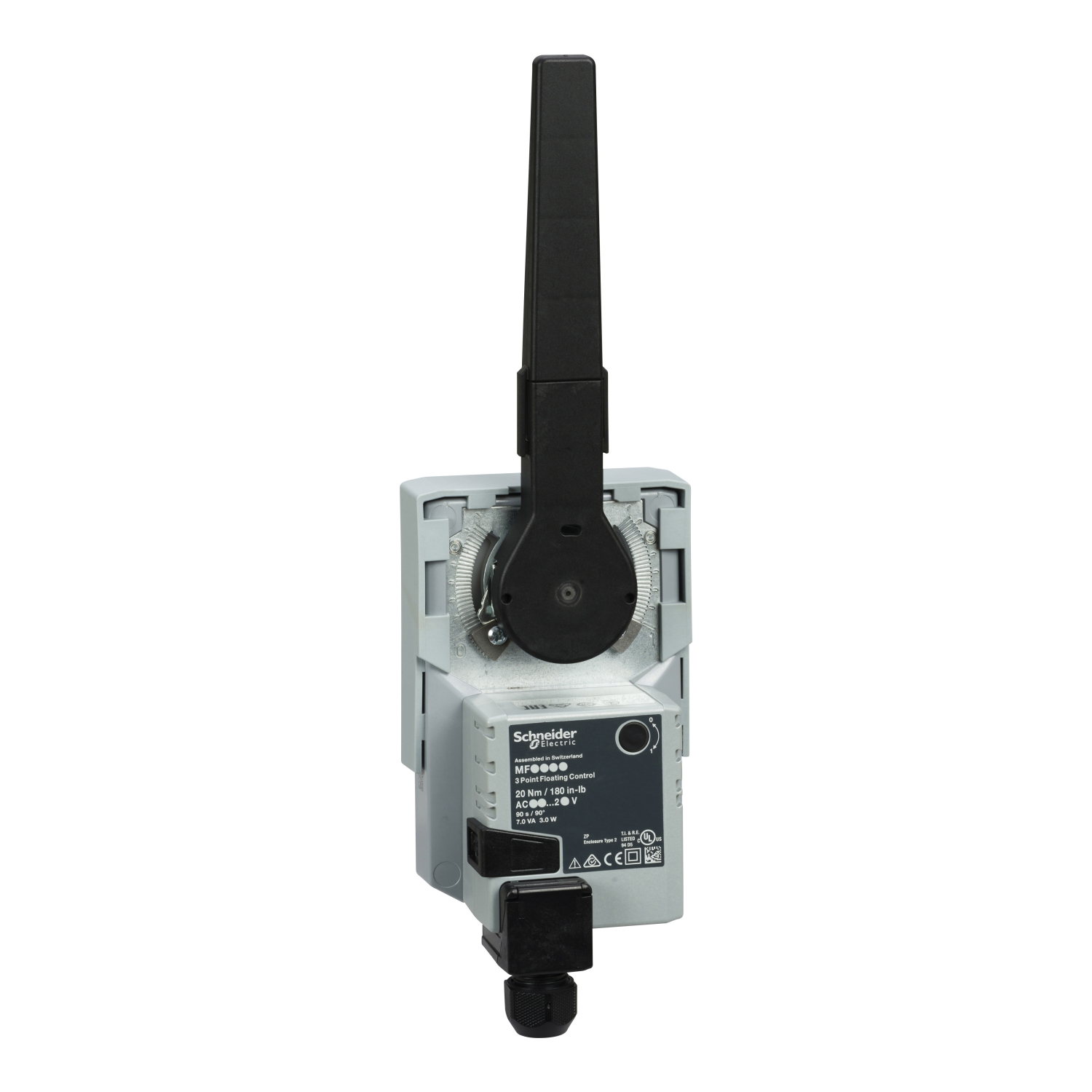

The MF20 is a robust reliable actuator for the control of the VF208W butterfly valves. The actuator mount the valve without linkage kits and connect using terminal blocks to simplify and reduce installation time. Auxiliary switch is available as an accessory. Power supply: 24 Vac/Vdc. Modulating control signal: 2…1 V. Torque: 2 Nm. Suitable for DN25…1. Operating time: 9 sec.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Switch function | 2 SPDT (optional) |
| Hold-in power consumption in W | 0.4-0.4 W |
| IP degree of protection | IP54 |
| [Us] rated supply voltage | 24 V AC/DC |
| Electrical insulation class | class III |
| Product destination | butterfly valves |
| Control type | electrically operated |
| Product or component type | actuator |
| Power consumption in VA | 5 VA AC |
| Targeted region | Australia., Asia Pacific., Europe |
| Power consumption in W | 2.5 W |
| Analogue input range | 2...10 V DC |
| Actuator | rotary |
| Ambient air temperature for operation | 0-50 °C |
| Tightening torque | 20 N.m, 177 lb.in |
| Power loss return | stay in place |
| Actuator model | MF20-24M T54 00 |
| Feedback signal | 2...10 V DC |
| Control signal | proportional/modulating |
| Leads and connections | terminal block |
| Actuator type | electric |
| Actuator product series | MF20 |
| Position indicator | Stroke indicator on bracket |
