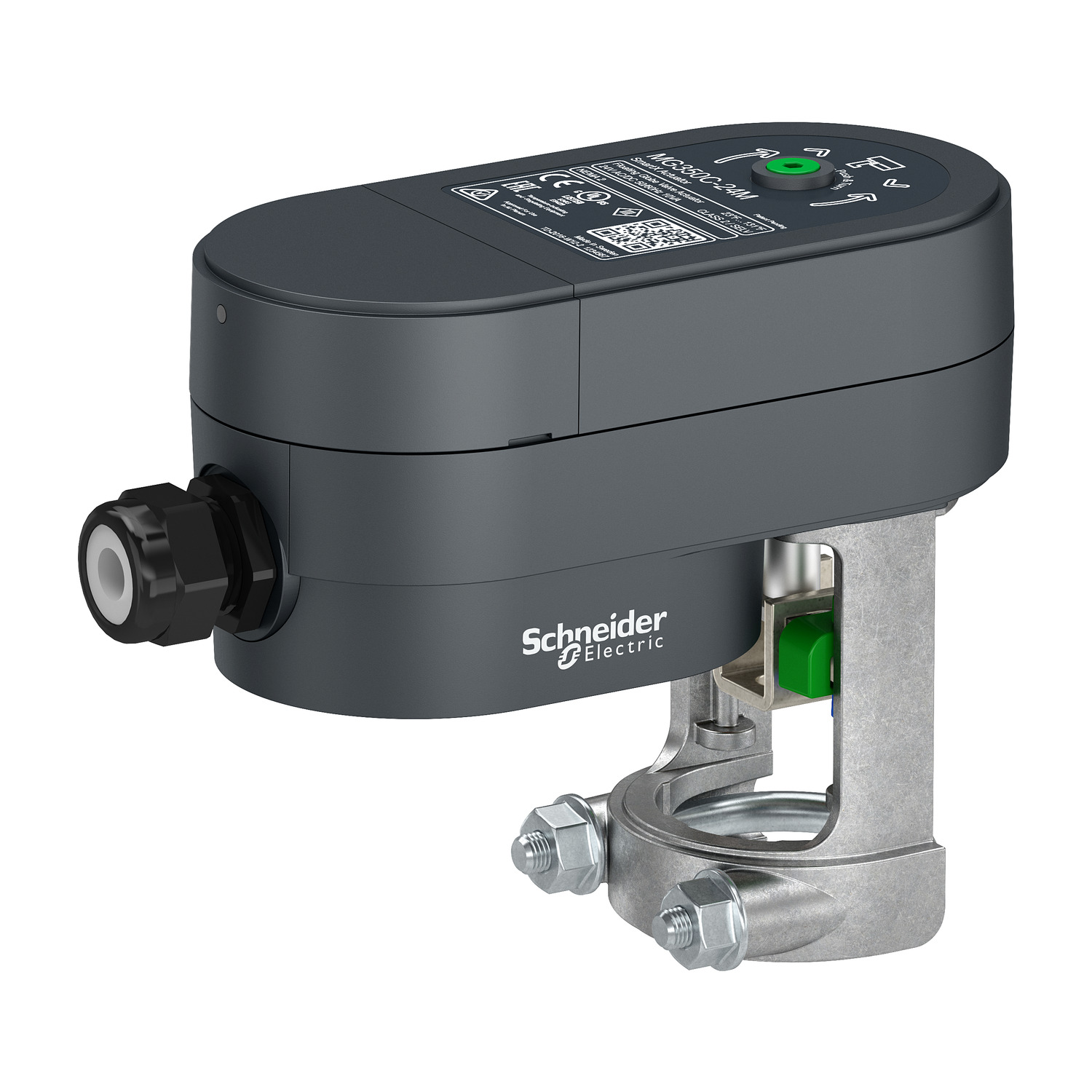

The MG350C globe valve actuator is a very compact, non-spring return electromechanical actuators, for the control of: VG21R, VG31R globe valves.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Hold-in power consumption in W | 0.5-0.5 W |
| Product destination | globe valve |
| Duty cycle | 20 % |
| Product or component type | actuator |
| Targeted region | Australia., Asia Pacific., Europe |
| Complementary | |
| Force N | 350 N |
| Material | polycarbonate: housing, EPDM: O-rings, reinforced teflon: seal |
| Stroke running time | 102 s |
| [Us] rated supply voltage | 24 V AC/DC |
| Electrical insulation class | class II |
| Control type | automatic reset |
| Stroke length | 0.9375-0.9375 mm |
| Power consumption in W | 3 W |
| Force lbf | 79 lbf |
| Actuator | linear |
| Environment | |
| IP degree of protection | IP22 |
| Relative humidity | 5-95 % non-condensing |
| Ambient air temperature for storage | -40-70 °C |
| Ambient air temperature for operation | -5-55 °C |
| Power loss return | non-spring return |
| Actuator model | MG350C |
| Feedback signal | 2...10 V DC |
| Control signal | floating, 2-position (on/off) |
| Connection valve | integral linkage |
| Stroke auto calibration | True |
| Conduit connection | gland for 6-12 mm O/D cable, 1 x 20 mm conduit hole |
| Leads and connections | removable terminal block |
| Actuator type | electric |
| Actuator product range | SpaceLogic |
| Actuator product series | MG350C |
| Position indicator | Stroke indicator on bracket |
| Additional features | LED status indicator |
