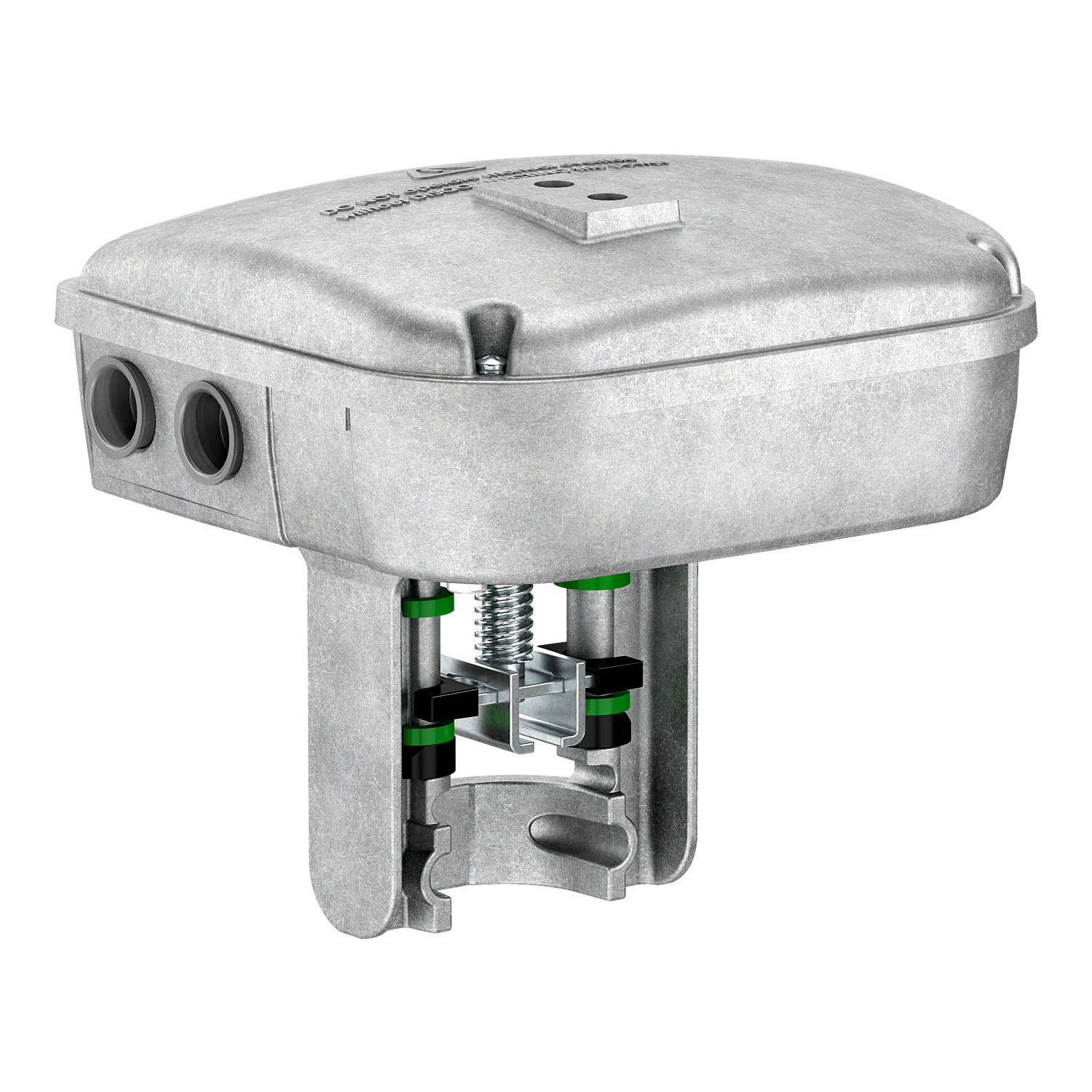

The MG600C-S is a compact linear eletro-mechanicl actuator for the control of the two-way VG210R, and three way VG310R globe Valves. The actuator utilises brushless DC motors and a high resolution control board allow a very fine fluid control. The working range and end point switches (optional accessory) of the actuator are adjusted automatically to the stroke of the Valve. When driven electrically, the fimware of the actuator calibrates a consistent running time regardless of the Valve stroke. Stay in place upon power failure is ensured by a solenoid lock on the motor. Supply Voltage: 24 Vac. Force nominal: 600 N, enclosure rating: IP54. Position Feedback Output Signal: 2…10 Vdc, 0…5 Vdc. Stroke: 9-32 mm.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Force N | 600 N |
| Switch function | 2 SPDT (optional) |
| IP degree of protection | IP54 |
| Relative humidity | 0-90 % |
| Ambient air temperature for storage | -10-50 °C |
| [Us] rated supply voltage | 24 V AC/DC |
| Electrical insulation class | class II |
| Product destination | globe valve |
| Control type | automatic reset |
| Transformer rated power in VA | 30 VA |
| Stroke length | 9-32 mm |
| Power consumption in W | 4 W |
| Analogue input range | 0...10 V DC |
| Ambient air temperature for operation | -10-50 °C |
| Hold-in power consumption in W | 3-3 W |
| Material | EPDM: O-rings, reinforced teflon: seal |
| Stroke running time | 15 s |
| Motor type | brushless DC motor |
| Duty cycle | 20 % |
| Product or component type | actuator |
| Targeted region | Australia., Asia Pacific., Europe |
| Force lbf | 135 lbf |
| Actuator | linear |
| Actuator model | MG600C |
| Control signal | proportional/modulating, floating |
| Conduit connection | gland for 6-9 mm O/D cable, 3 x M20 |
| Leads and connections | terminal block |
| Actuator type | electric |
| Actuator product range | SpaceLogic |
| Actuator product series | MG600C |
| Power loss return | non-spring return |
| Feedback signal | 2...10 V DC |
| Stroke auto calibration | True |
| Position indicator | Stroke indicator on bracket |
