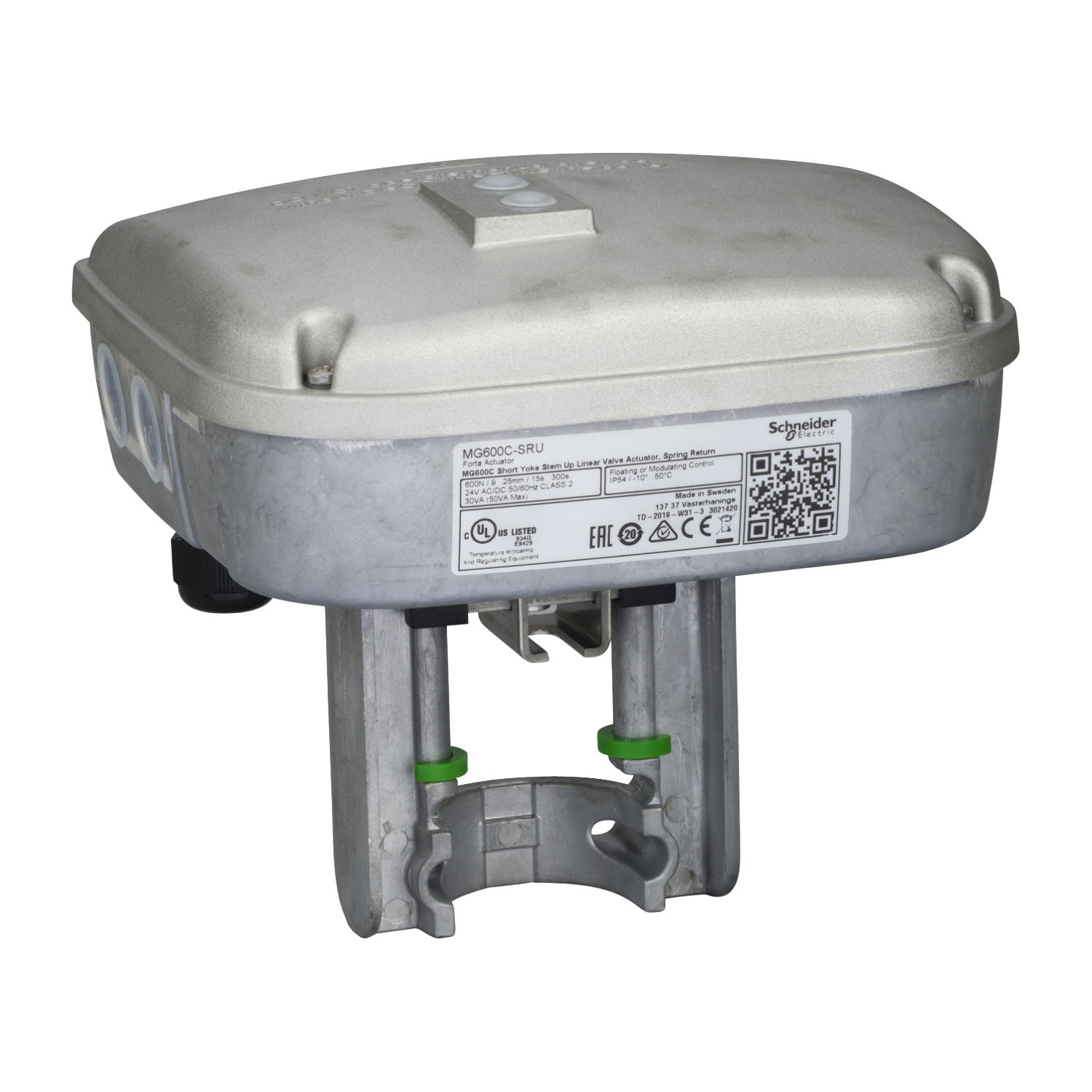

The MG600C-SRU is a linear eletro-mechanicl actuator with spring return operation for the control of the two-way VG210R, and three way VG310R, globe Valves. The actuator utilises brushless DC motors and a high resolution control board allow a very fine fluid control. The working range and end point switches of the actuator are adjusted automatically to the stroke of the Valve. When driven electrically, the fimware of the actuator calibrates a consistent running time regardless of the Valve stroke. Spring return stem UP (Retract) on loss of power. Supply Voltage: 24 Vac. Force nominal: 600 N, enclosure rating: IP54. Position Feedback Output Signal: 2…10 Vdc, 0…5 Vdc. Stroke: 9-32 mm.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Force N | 600 N |
| Switch function | 2 SPDT (optional) |
| Hold-in power consumption in W | 7-7 W |
| Material | EPDM: O-rings, reinforced teflon: seal |
| Stroke running time | 15 s |
| IP degree of protection | IP54 |
| Relative humidity | 0-90 % |
| Motor type | brushless DC motor |
| Ambient air temperature for storage | -10-50 °C |
| [Us] rated supply voltage | 24 V AC/DC |
| Electrical insulation class | class II |
| Product destination | globe valve |
| Control type | automatic reset |
| Duty cycle | 20 % |
| Product or component type | actuator |
| Transformer rated power in VA | 50 VA |
| Targeted region | Australia., Asia Pacific., Europe |
| Stroke length | 9-32 mm |
| Power consumption in W | 21 W |
| Analogue input range | 0...10 V DC |
| Force lbf | 135 lbf |
| Actuator | linear |
| Ambient air temperature for operation | -10-50 °C |
| Power loss return | spring return |
| Actuator model | MG600C-SR |
| Feedback signal | 2...10 V DC |
| Control signal | proportional/modulating, floating |
| Stroke auto calibration | True |
| Conduit connection | gland for 6-9 mm O/D cable, 3 x M20 |
| Leads and connections | terminal block |
| Actuator type | electric |
| Actuator product range | SpaceLogic |
| Actuator product series | MG600C |
| Position indicator | Stroke indicator on bracket |
