Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |

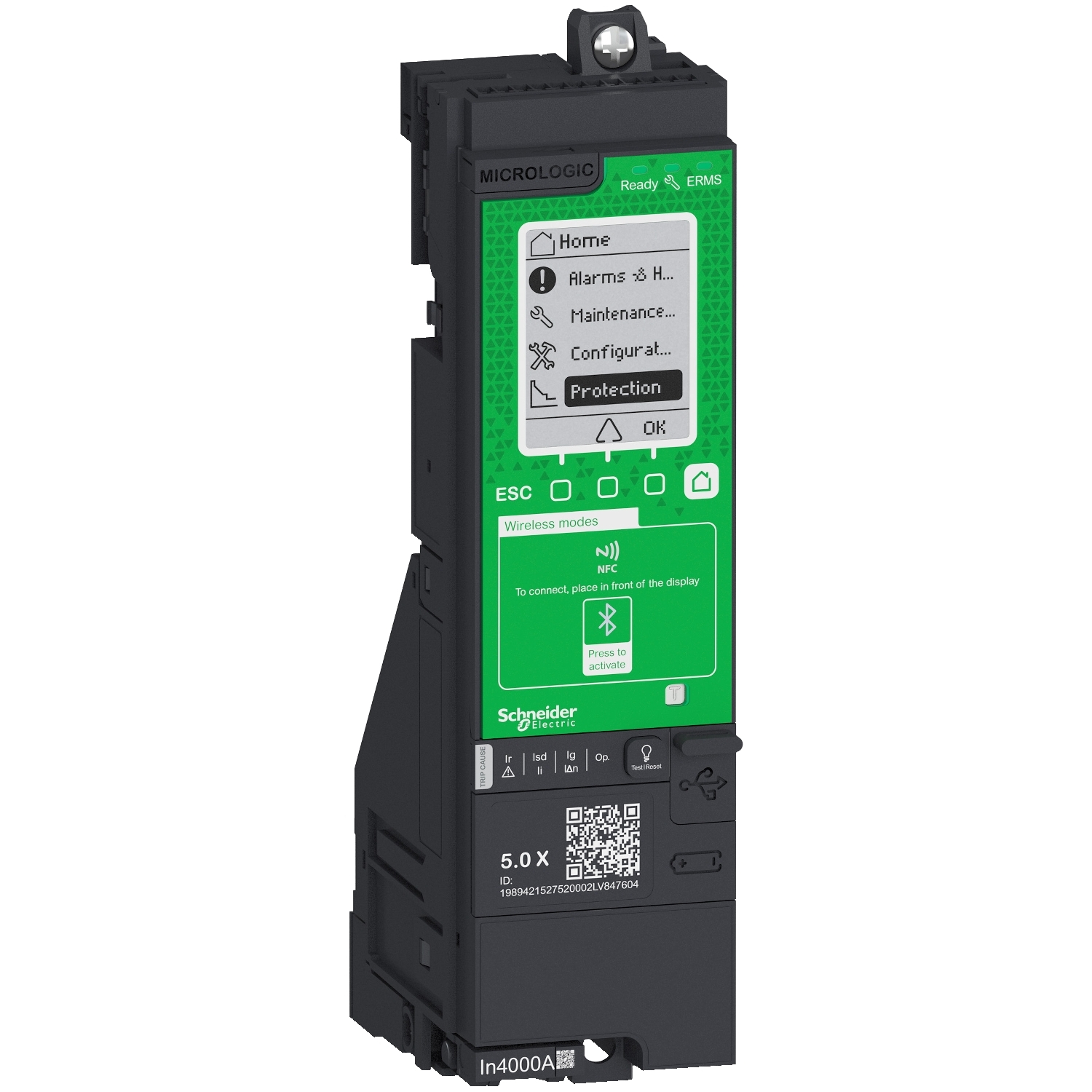

| Device short name | MicroLogic 5.0 X |
| Device application | equipment protection, monitoring and control |
| Protection type | short time short-circuit protection conforming to ANSI 51, instantaneous short-circuit protection conforming to ANSI 50, overload protection (long time) conforming to ANSI 49 |
| Range | MasterPacT |
| Protected poles description | 4P 3d + OSN, 4P 4d, 4P 3d + N/2, 4P 3d, 3P 3d |
| Trip unit technology | electronic |
| Poles description | 3P, 4P |
| Circuit breaker application | distribution IEC standard |
| Product or component type | control unit |
| Trip unit rating | 6300-6300 A, 5000-5000 A, 4000-4000 A, 3200-3200 A, 2500-2500 A, 2000-2000 A, 1600-1600 A, 1250-1250 A, 1000-1000 A, 800-800 A, 630-630 A, 400-400 A |
| Range compatibility | MasterPact MTZ3 circuit breaker, MasterPact MTZ2 circuit breaker, MasterPact MTZ1 circuit breaker |
| [Ue] rated operational voltage | 690 V AC, +/- 10 % |
| Network type | AC |
| Trip unit protection functions | LSI |
| Network frequency | 50/60 Hz |
| Complementary | |
| [Isd] short-time pick-up adjustment range | 1.5...10 x Ir adjustable in step of 0.1 x Ir with Ecoreach software or MasterPact MTZ mobile app, 1.5...10 x Ir adjustable in step of 0.5 x Ir with embedded HMI |
| Energy management | measurement ,energy, measurement ,electrical network, measurement ,active, reactive and apparent energy |
| Measurement accuracy | unbalance current: +/- 0.5 %, earth leakage current: +/- 10 %, frequency: +/- 0.005 Hz, apparent energy Es IN/OUT/tot: +/- 1 %, reactive energy Ep IN/OUT/tot: +/- 2 %, active energy Ep IN/OUT/tot: +/- 1 %, power factor: +/- 2 %, apparent power S, S1, S2, S3, Sdemand: +/- 1 %, reactive power Q, Q1, Q2, Q3, Qdemand: +/- 2 %, active power P, P1, P2, P3, Pdemand: +/- 1 %, voltage V1N, V2N, V3N, VLNavg: +/- 0.5 % 120...400 x 1.2 V, voltage V12, V23, V31, VLLavg: +/- 0.5 % 208...690 x 1.2 V, ground fault current Ig: +/- 5 %, neutral current IN: +/- 1 %, current I1, I2, I3, Iavg, Idemand for MTZ3: +/- 0.5 % 80...6300 x 1.2 A, current I1, I2, I3, Iavg, Idemand for MTZ2: +/- 0.5 % 40...4000 x 1.2 A, current I1, I2, I3, Iavg, Idemand for MTZ1: +/- 0.5 % 40...1600 x 1.2 A |
| Operating time | 20 ms in standard, 0 ms in fast |
| Neutral protection setting | no protection (4P 3d), 1.6 x Ir (4P 3d + OSN), 0.5 x Ir (4P 3d + N/2), 1 x Ir (4P 4d) |
| Instantaneous pick-up adjustment range | Ii enable on/off, 2...15 x In adjustable in step of 0.1 x In with Ecoreach software or MasterPact MTZ mobile app, 2...15 x In adjustable in step of 0.5 x In with embedded HMI |
| Short-time delay adjustment type | adjustable |
| Metering type | unbalance voltage, unbalance current, total voltage harmonic distortion THD (V), total current harmonic distortion THD (I), earth leakage current, phase sequence, frequency, demand power P, Q, S, demand current I1, I2, I3, In, Iavg, apparent energy Es IN/OUT/tot, reactive energy Eq IN/OUT/tot, active energy Ep IN/OUT/tot, power factor, apparent power S, S1, S2, S3 total, reactive power Q, Q1, Q2, Q3 total, active power P, P1, P2, P3 total, voltage V1N, V2N, V3N, VLNavg RMS, voltage V12, V23, V31, VLLavg RMS, ground fault current Ig RMS, neutral current IN RMS, current I1, I2, I3, Iavg RMS |
| Zone selective interlocking ZSI | with |
| Display type | LCD display - 128 x 96 pixels |
| Communication port protocol | USB peer to peer 115 kbauds, NFC peer to peer conforming to ISO 15963, Bluetooth 4.0 LE peer to peer 30 kbit/s |
| Frequency measurement range | 40-70 Hz |
| Offer type | spare part |
| Thermal memory | yes |
| Accuracy class | class 2: total voltage harmonic distortion THD (V), class 1: active and reactive energy by pulse counting (+/- W.h, +/- VAR.h), class 0.5: unbalance voltage, class 5: total current harmonic distortion THD (I) |
| Network and machine diagnosis type | breaker service life: circuit breaker health state, operation: advanced diagnostic, trip context information: crisis management, selectivity test: test, protection test: test, MicroLogic test: test, operation: diagnostic data, monitored function: diagnostic data, configured alarms synthesis: diagnostic data, identification card: diagnostic data, tripping cause indication: circuit breaker tripping cause, MicroLogic service life: circuit breaker health state, contacts state: circuit breaker health state, system (HMI) health state overview: circuit breaker health state |
| Data recording | data logs, alarm logs, maintenance logs, event logs, time stamping, min/max of instantaneous values |
| [tsd] short-time delay adjustment range | 0-0.4 s I²t=off, 0.1-0.4 s I²t=on |
| [tr] long-time delay adjustment range | 0.7-16.6 s at 7.2 x Ir, 0.5-24 s at 6 x Ir, 12.5-600 s at 1.5 x Ir |
| Instantaneous pick-up adjustment type Ii | adjustable |
| Long time delay adjustment type | adjustable in step of 0.5 s |
| Long time pick-up adjustment range | 0.4...1 x In adjustable in step of 1 A |
| Type of measurement | power meter |
| Provided equipment | 1 instruction sheet |
| Measurement voltage | 120-480 V AC 50/60 Hz phase to neutral, 208-828 V AC 50/60 Hz phase to phase |
| Environment | |
| Measurement category | category IV conforming to IEC 61010-2-30 |
| Relative humidity | 95-95 % at 55-55 °C conforming to IEC 60068-2-30 |
| Pollution degree | 3 conforming to IEC 60947-1 |
| Ambient air temperature for operation | -35--35 °C (for start-up of product), -25-70 °C (operating) |
| Electromagnetic compatibility | conducted and radiated emissions A conforming to CISPR 22, conducted RF disturbances conforming to IEC 61000-4-6, 1.2/50 µs shock waves immunity test conforming to IEC 61000-4-5, electrical fast transient/burst immunity test conforming to IEC 61000-4-4, susceptibility to electromagnetic fields conforming to IEC 61000-4-3, electrostatic discharge immunity test conforming to IEC 61000-4-2 |
| Operating altitude | <= 5000 m with operational voltage derating 560 V AC, <= 4000 m with operational voltage derating 600 V AC, <= 2000 m without derating |
| Overvoltage category | IV conforming to IEC 61010-1 |
| Mounting location | indoor use only |
| Environmental characteristic | wet location not approved for use conforming to IEC 61010-1 |
| Standards | EN/IEC 61010-1, EN/IEC 60947-2, EN/IEC 60255-1, EN/IEC 60092-202, EN/IEC 60947-1 |
