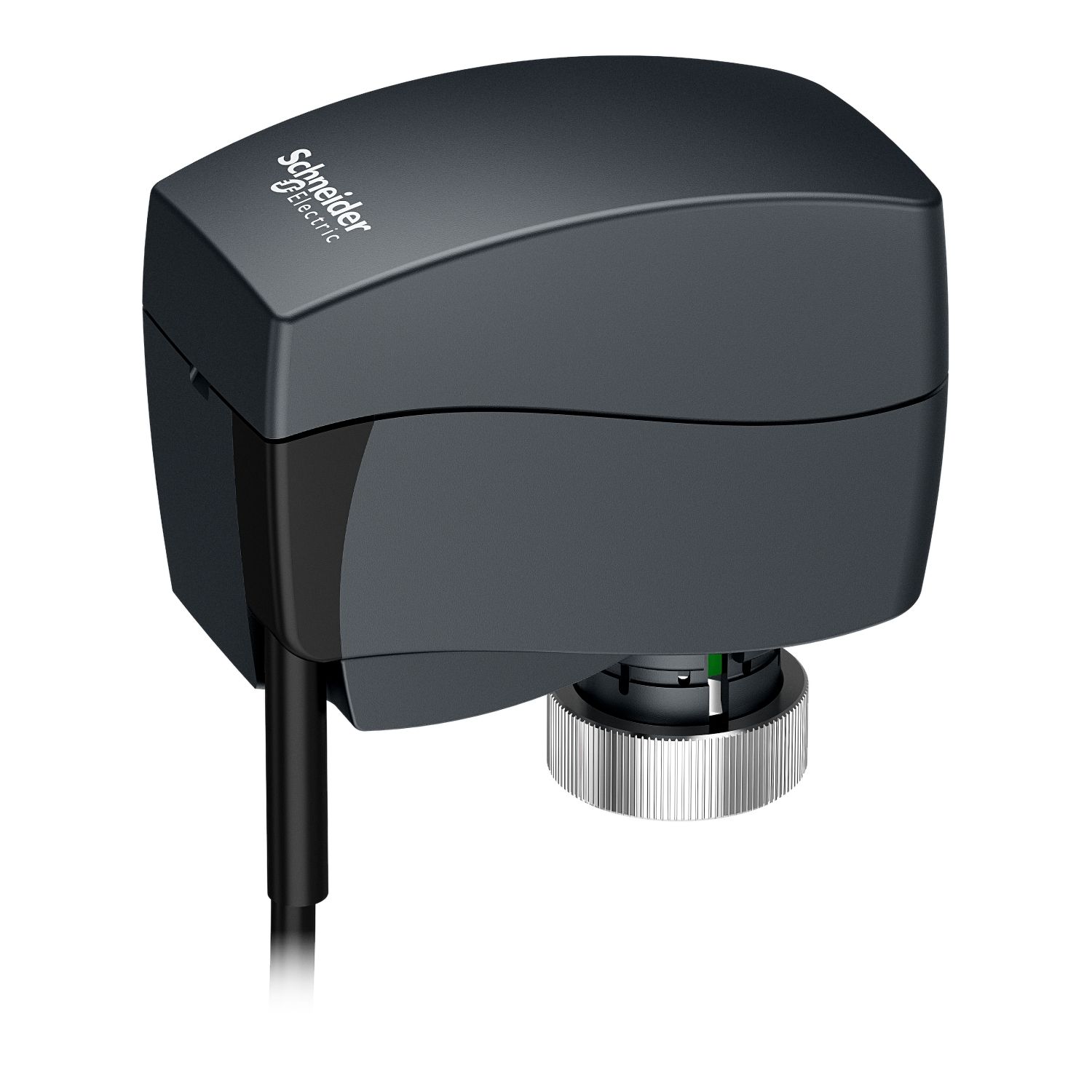

The MP130-24F is 3 wire floating actuators used together with SpaceLogic PIBCV (DN1…32) automatic balance and control valves. Typical applications include temperature control on terminal units (fan-coils, chilled ceilings) and small air-handling units. Gap detection stem up position, 3 point version, Force switch-off at stem down position prevents overload of actuator and valve. Maintenance-free lifetime. Power Supply: 24 Vac +10%...-15%. Close of Force: 130 N. Protection code IP42, III safety extra-low voltage protection class. Max. Stroke 5.5 mm. LVD: 26/95/EC.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Product destination | pressure independent control valves |
| Product or component type | actuator |
| Power consumption in VA | 1 VA AC |
| Targeted region | Australia., Asia Pacific., Europe |
| Complementary | |
| Force N | 130 N |
| Material | polycarbonate: housing |
| Stroke running time | 24 s |
| [Us] rated supply voltage | 24 V AC |
| Electrical insulation class | class III |
| Control type | automatic reset |
| Stroke length | 5.5-5.5 mm |
| Force lbf | 30 lbf |
| Actuator | linear |
| Environment | |
| IP degree of protection | IP42 |
| Relative humidity | 0-80 % RH, non-condensing |
| Ambient air temperature for storage | -40-70 °C |
| Ambient air temperature for operation | 0-55 °C |
| Power loss return | non-spring return |
| Actuator model | MP130 |
| Control signal | floating |
| Lead length | 10 m |
| Stroke auto calibration | True |
| Leads and connections | integral cable |
| Actuator type | electric |
| Actuator product range | SmartX Actuator |
| Actuator product series | MP130 |
| Position indicator | Stroke indicator on bracket |
