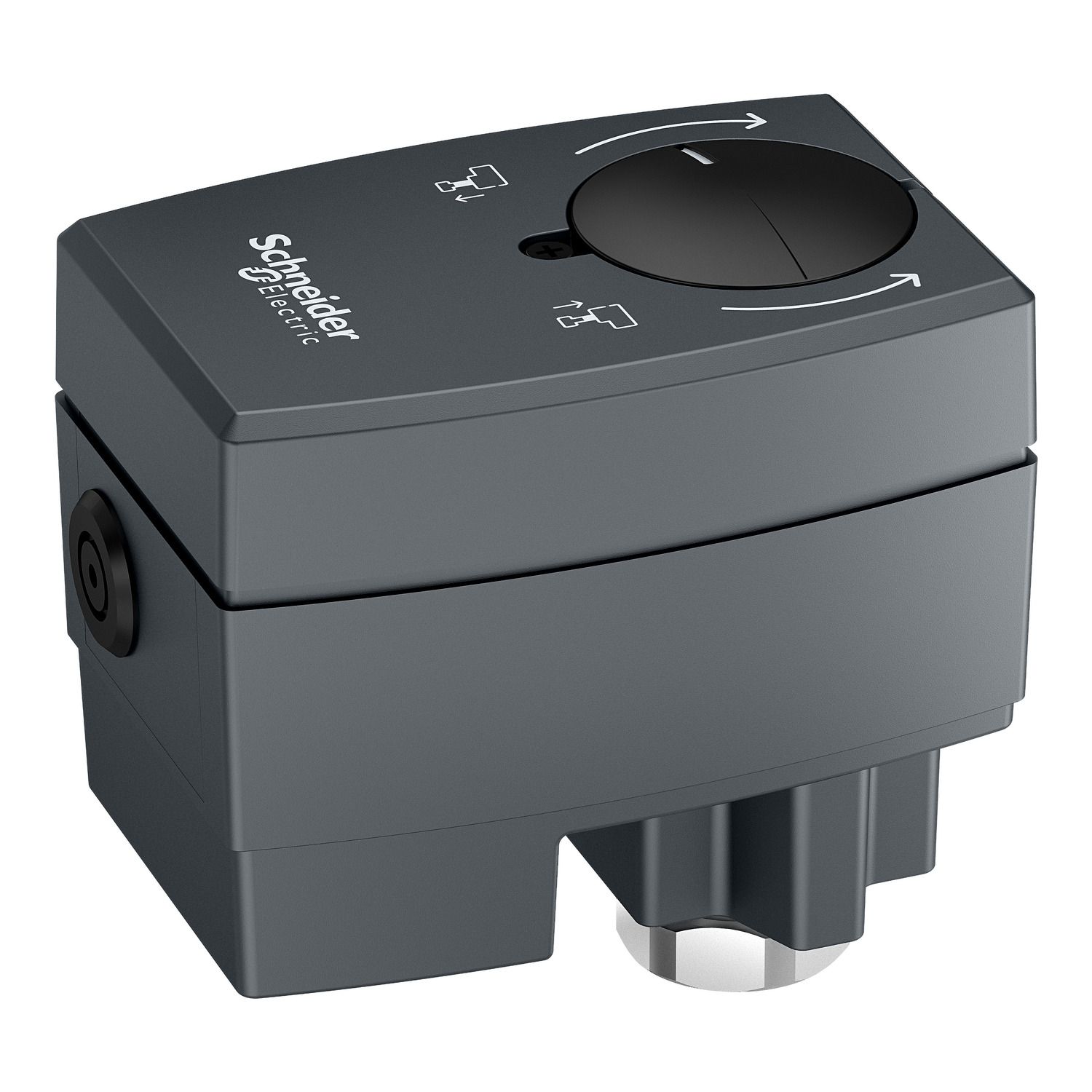

MP300-SR actuators with Floating and Proportional control are low voltage motoric actuators for the SpaceLogic PIBCV DN1-32 Valves. The actuator has a spring return safety function that provides for an open or close valve in the event of power loss. The Spring return safety function should not be used for two position control. The advanced design incorporates load related ‘switchoff’ to ensure that actuators and valves are not exposed to overload. Power Supply: 24 Vac, +10…-15%. Closing Force: 300 N, Up - Normally Open. Grade of enclosure IP54. Max stroke 5.5 mm.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Product destination | pressure independent control valves |
| Product or component type | actuator |
| Power consumption in VA | 9 VA AC |
| Targeted region | Australia., North America., Asia Pacific., Europe |
| Complementary | |
| Force N | 300 N |
| Switch function | No |
| [Us] rated supply voltage | 24 V AC |
| Electrical insulation class | class III |
| Control type | automatic reset |
| Stroke length | 5.5-5.5 mm |
| Analogue input range | 0...10 V DC |
| Material | polycarbonate: housing |
| Stroke running time | 14 s |
| Force lbf | 68 lbf |
| Actuator | linear |
| Environment | |
| IP degree of protection | IP54 |
| Relative humidity | 0-95 % RH, non-condensing |
| Ambient air temperature for operation | 0-55 °C |
| Control signal | proportional/modulating, floating |
| Conduit connection | conduit connector plate |
| Leads and connections | terminal block |
| Actuator type | electric |
| Actuator product range | SmartX Actuator |
| Actuator product series | MP300-SR |
| Power loss return | spring return |
| Feedback signal | 2...10 V DC, 0...10 V DC |
| Stroke auto calibration | False |
| Additional features | valve stroke length selection, LED status indicator |
